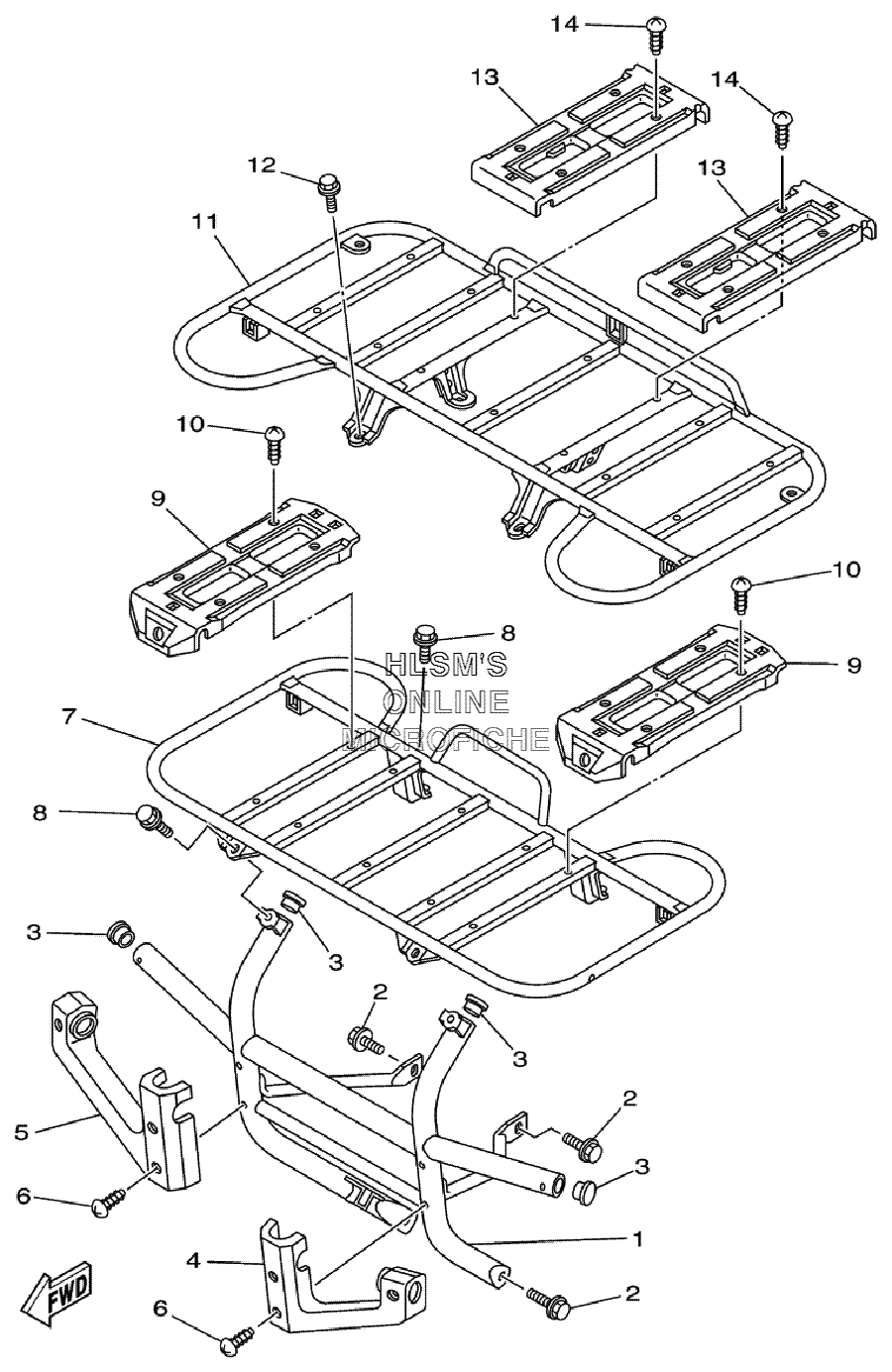

RACK AND BUMPER для Yamaha GRIZZLY 660 HUNTER HARDWOODS HD CAMO YFM66FAHV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-2845N-10-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
35KM-2482H-00-00 CAPCAP
-
45KM-2842M-00-00 COVER 1COVER 1
-
55KM-2842N-00-00 COVER 2COVER 2
-
690167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
75KM-24841-10-00 CARRIER, FRONTCARRIER, FRONT
-
895827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
95KM-24845-00-00 COVER 1COVER 1
-
1097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
115KM-24842-20-00 CARRIER, REARCARRIER, REAR
-
1295827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
135KM-24846-00-00 COVER 2COVER 2
-
1497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
