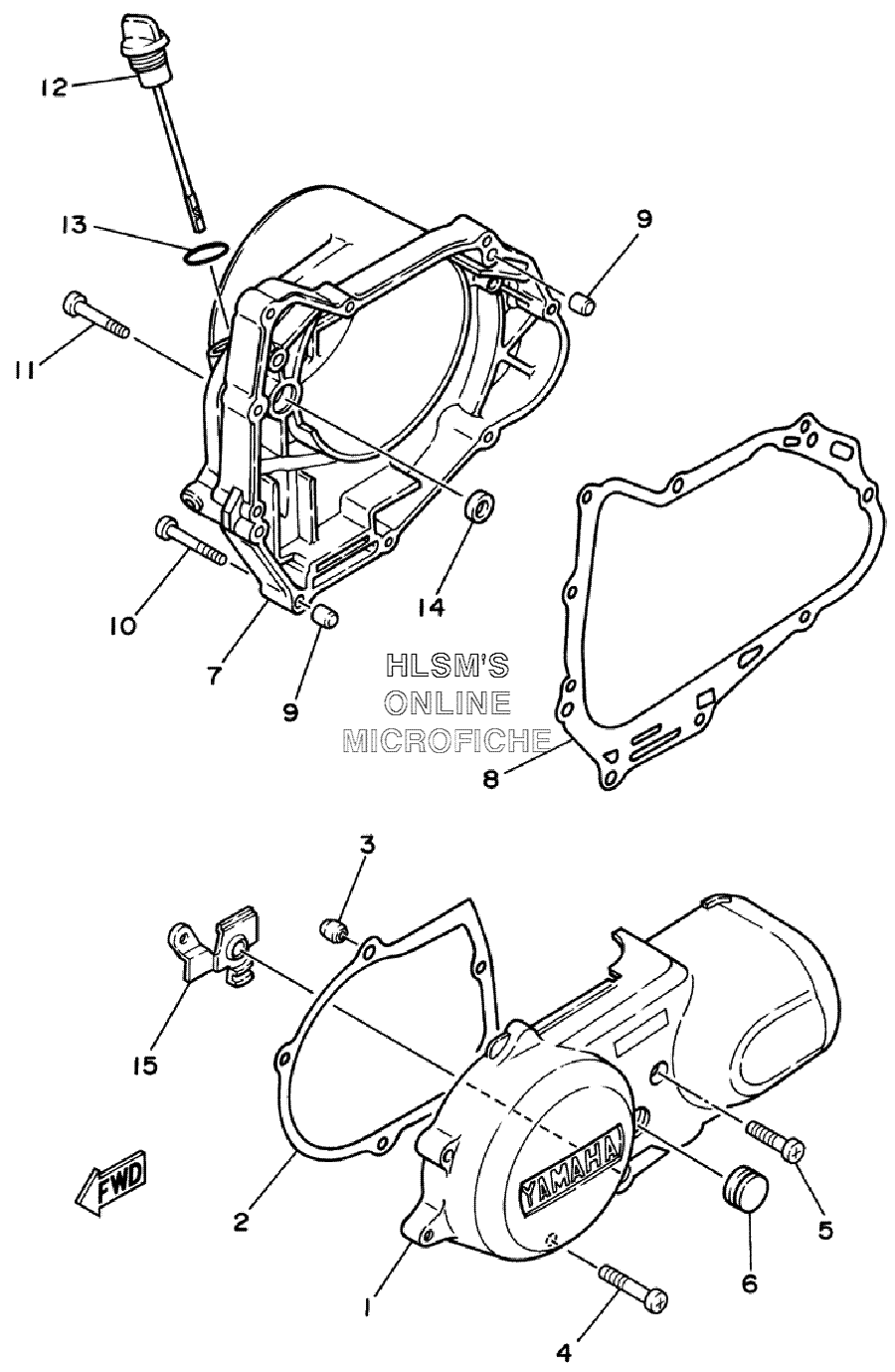

CRANKCASE COVER для Yamaha GRIZZLY 80 YFM80GHV - 2006 года выпуска
-
№АртикулНазвание
-
122F-15411-01-00 COVER, CRANKCASE LCOVER, CRANKCASE L
-
23GB-15451-00-00 GASKET, CRANKCASE COVER LGASKET, CRANKCASE COVER L
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
498507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
598507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
622F-15417-00-00 COVER, CAPCOVER, CAP
-
72FJ-15421-00-00 COVER, CRANKCASE RCOVER, CRANKCASE R
-
83GB-15461-00-00 GASKET, CRANKCASE COVER RGASKET, CRANKCASE COVER R
-
999530-10120-00 PIN, DOWELPIN, DOWEL
-
1098507-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1198507-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
1255X-15362-04-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1393210-19123-00 O-RINGO-RING
-
1493101-10142-00 OIL SEALOIL SEAL
-
1590209-11269-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
