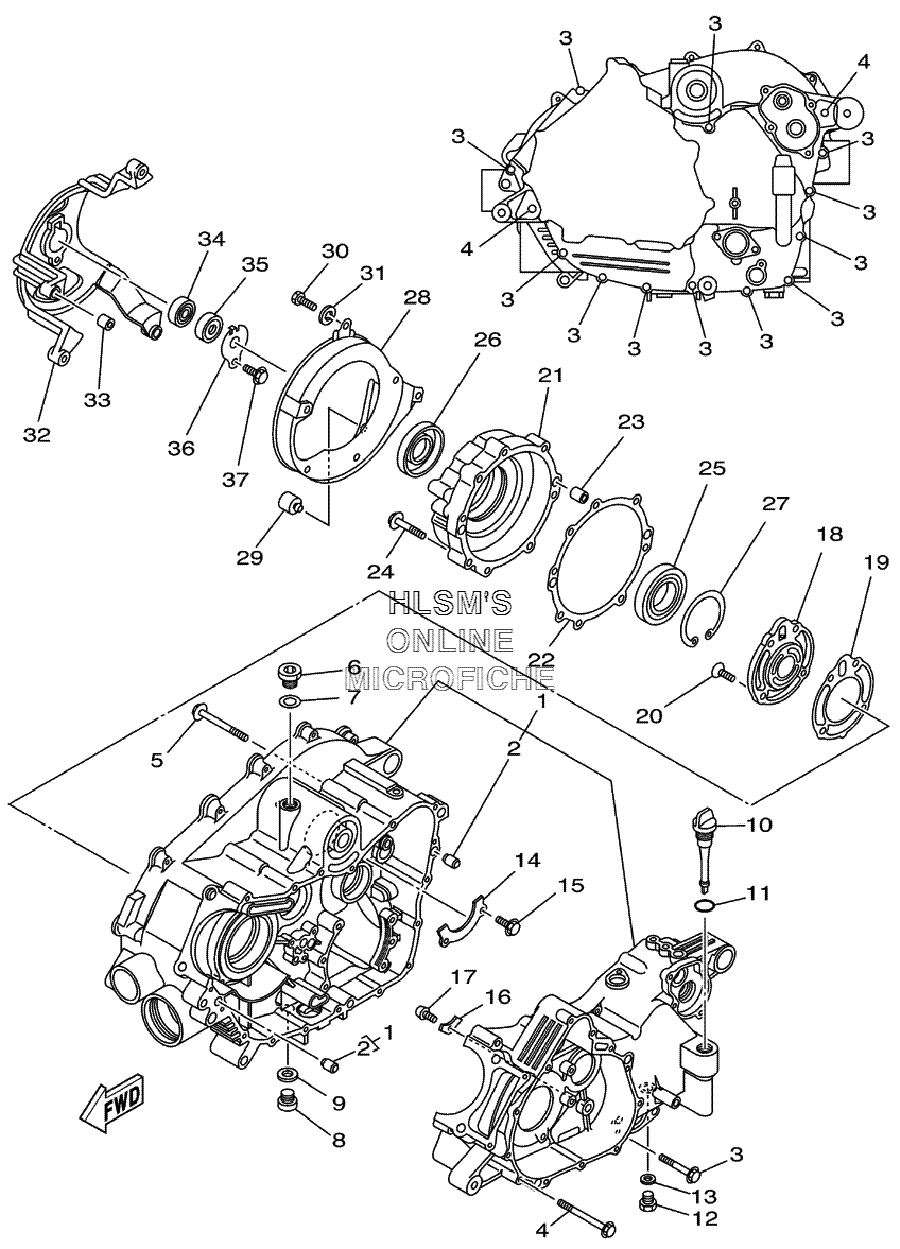

CRANKCASE для Yamaha KODIAK 450 4WD YFM45FAV - 2006 года выпуска
-
№АртикулНазвание
-
15ND-15100-01-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
395027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
495027-06065-00 BOLT, FLANGEBOLT, FLANGE
-
595027-06065-00 BOLT, FLANGEBOLT, FLANGE
-
690340-18101-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
790430-18130-00 GASKETGASKET
-
890340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
9214-11198-01-00 GASKETGASKET
-
105GH-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1193210-19026-00 O-RINGO-RING
-
1290340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
13214-11198-01-00 GASKETGASKET
-
145GH-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1595827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
162K7-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1790151-06014-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
185GH-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
195GH-15454-00-00 GASKET, AIR CLEANER COVER 1GASKET, AIR CLEANER COVER 1
-
2098707-06020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
215GH-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
225GH-15463-00-00 GASKET, CARBURETOR COVER 2GASKET, CARBURETOR COVER 2
-
2399530-10114-00 PIN, DOWELPIN, DOWEL
-
2495027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2593316-01003-00 BEARINGBEARING
-
2693102-32483-00 OIL SEALOIL SEAL
-
2799009-80500-00 CIRCLIPCIRCLIP
-
285GH-15333-00-00 COVERCOVER
-
295GH-15338-00-00 DAMPER, ENGINE MOUNT 5DAMPER, ENGINE MOUNT 5
-
3097017-06016-00 BOLTBOLT
-
3192907-06600-00 WASHER, PLATEWASHER, PLATE
-
325GH-15442-01-00 HOUSING, BEARINGHOUSING, BEARING
-
3391810-20001-00 PIN, DOWELPIN, DOWEL
-
3493306-20120-00 BEARINGBEARING
-
3593101-12168-00 OIL SEALOIL SEAL
-
364WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3795027-06012-00 BOLT, FLANGEBOLT, FLANGE
