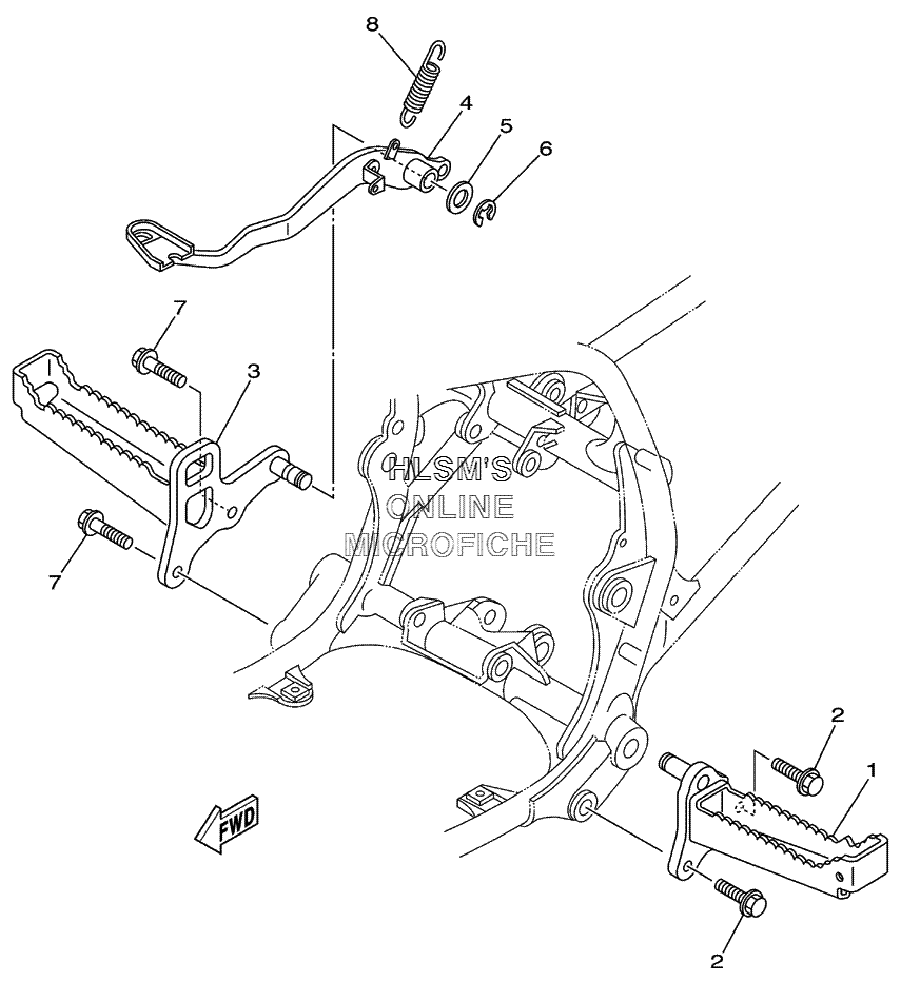

FOOTREST W/ BRAKE PEDAL для Yamaha RAPTOR 350 YFM350RV - 2006 года выпуска
-
№АртикулНазвание
-
15YT-27411-00-00 FOOTREST 1FOOTREST 1
-
295817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
35YT-27421-00-00 FOOTREST 2FOOTREST 2
-
45YT-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
590201-15797-00 WASHER, PLATEWASHER, PLATE
-
693430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
795817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
890506-20380-00 SPRING, TENSIONSPRING, TENSION
