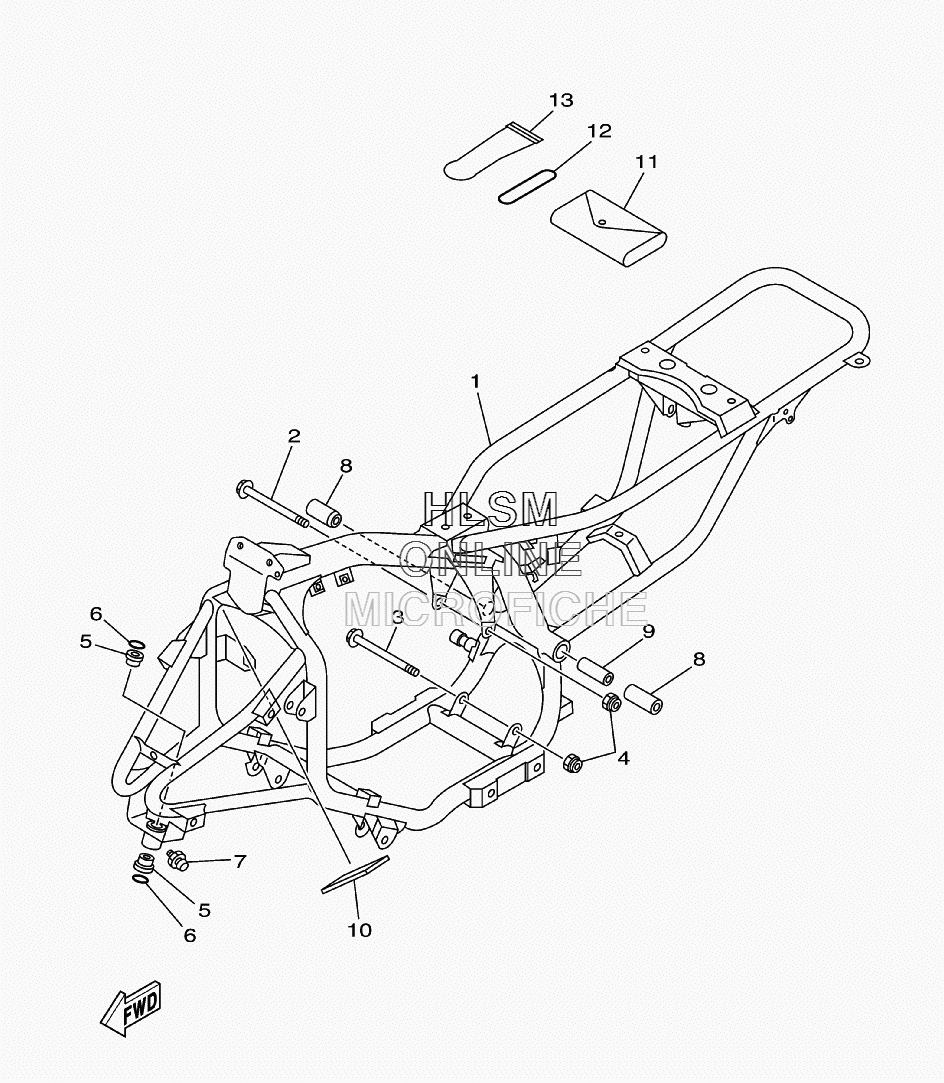

FRAME для Yamaha RAPTOR 80 YFM80RV - 2006 года выпуска
-
№АртикулНазвание
-
15TH-21110-20-00 FRAME COMP.FRAME COMP.
-
295817-08115-00 BOLT, FLANGEBOLT, FLANGE
-
395817-08120-00 BOLT, FLANGEBOLT, FLANGE
-
495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590381-15040-00 BUSH, SOLIDBUSH, SOLID
-
693210-15414-00 O-RINGO-RING
-
793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
83GB-22123-00-00 BUSH 1BUSH 1
-
93GB-22155-00-00 PIPEPIPE
-
105TH-21268-01-00 SEALSEAL
-
113GB-28100-00-00 TOOL KITTOOL KIT
-
1293210-40407-00 O-RINGO-RING
-
131NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
