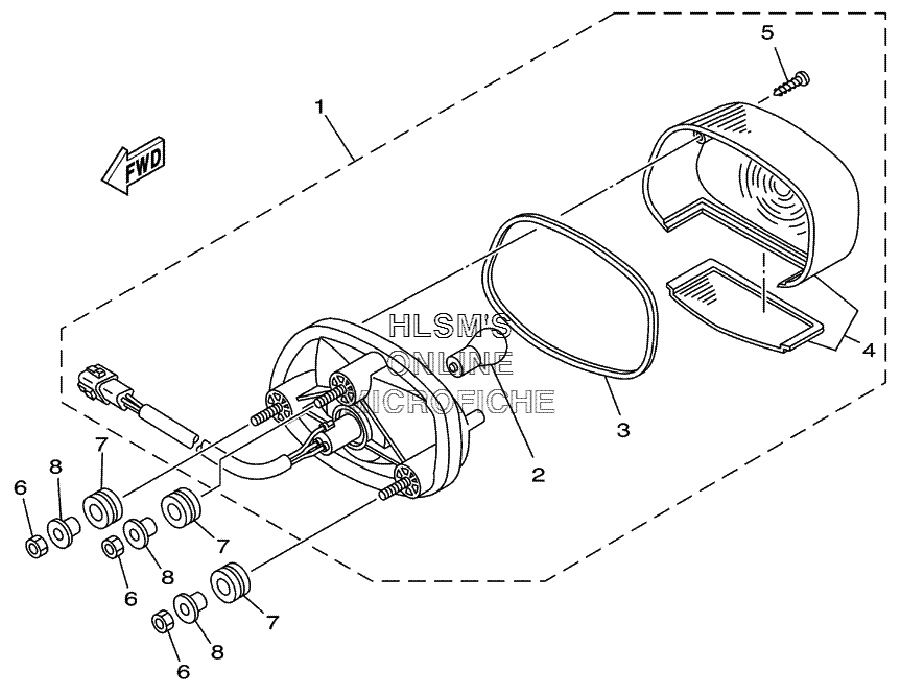

TAILLIGHT для Yamaha WOLVERINE 350 YFM35XV - 2006 года выпуска
-
№АртикулНазвание
-
15LP-84700-11-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
2256-84714-60-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34TR-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
44TR-84733-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
597702-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
695307-06600-00 NUTNUT
-
790480-14555-00 GROMMETGROMMET
-
890387-07391-00 COLLARCOLLAR
