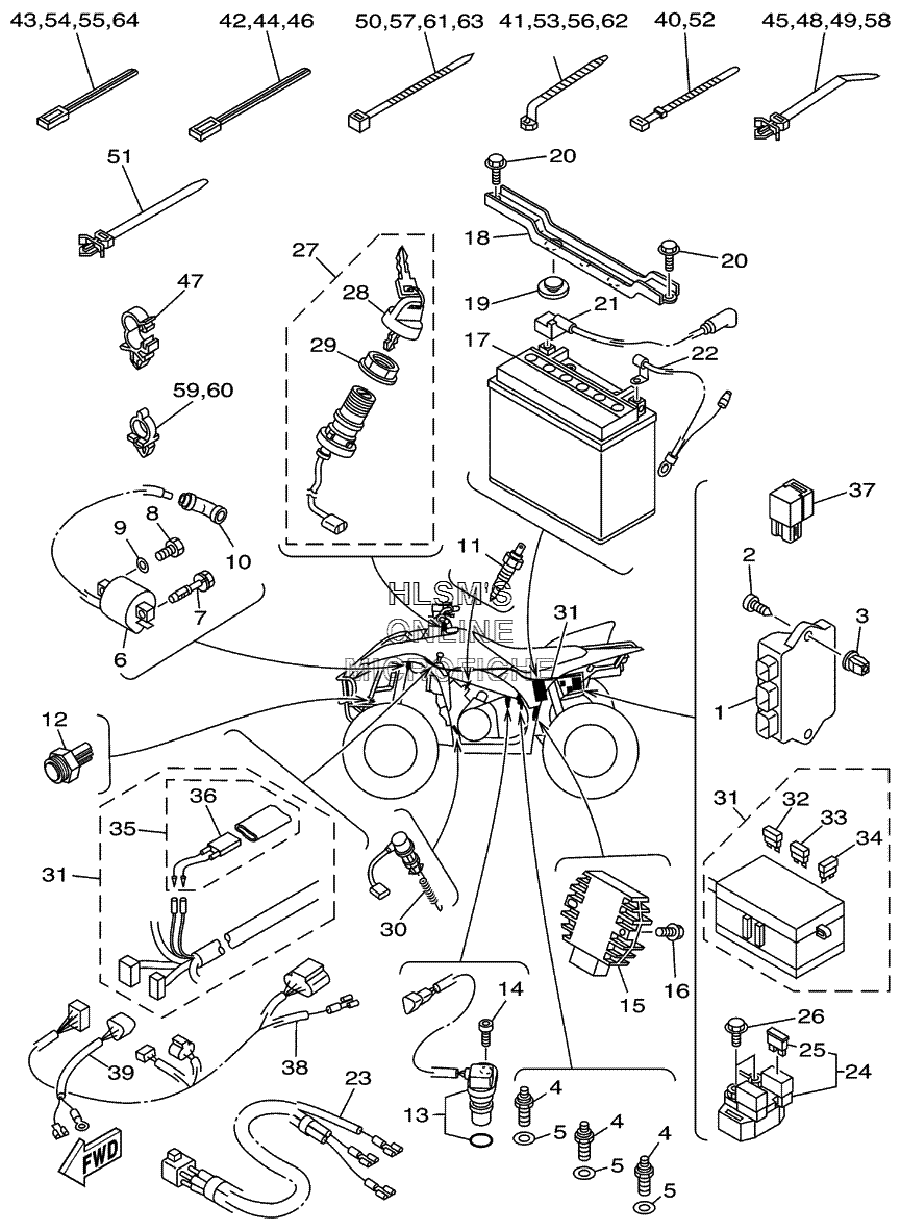

ELECTRICAL для Yamaha WOLVERINE 450 4x4 SPORT YFM45FXV - 2006 года выпуска
-
№АртикулНазвание
-
13C2-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
297707-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
590430-10148-00 GASKETGASKET
-
63KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
790109-06723-00 BOLTBOLT
-
897007-06020-00 BOLTBOLT
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
101UY-82370-20-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
115KM-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
125ND-82560-10-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
133C2-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1490110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155GT-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
1695807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
175FU-H2100-20-00 BATTERY ASSY. (YUASA YTX20L-BS)BATTERY ASSY. (YUASA YTX20L-BS)
-
185ND-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
19371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2095807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
213C2-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
225ND-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
231P1-82541-00-00 WIRE, LEADWIRE, LEAD
-
244SV-81940-12-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
251AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
269502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
275ND-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
283HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
293HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
304KB-82530-10-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
313C2-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
325JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
335JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
345JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
355ND-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
365ND-82560-00-00 ......THERMO SWITCH ASSY.......THERMO SWITCH ASSY.
-
375DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
383C2-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
393C2-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4090464-51800-00 CLAMPCLAMP
-
4190464-12830-00 CLAMPCLAMP
-
4290464-40825-00 CLAMPCLAMP
-
4390464-31827-00 CLAMPCLAMP
-
4490464-40825-00 CLAMPCLAMP
-
4590464-25800-00 CLAMPCLAMP
-
4690464-40825-00 CLAMPCLAMP
-
4790464-16006-00 CLAMPCLAMP
-
4890464-25800-00 CLAMPCLAMP
-
4990464-25800-00 CLAMPCLAMP
-
5090464-48800-00 CLAMPCLAMP
-
5190464-38800-00 CLAMPCLAMP
-
5290464-51800-00 CLAMPCLAMP
-
5390464-12830-00 CLAMPCLAMP
-
5490464-31827-00 CLAMPCLAMP
-
5590464-31827-00 CLAMPCLAMP
-
5690464-12830-00 CLAMPCLAMP
-
5790464-48800-00 CLAMPCLAMP
-
5890464-25800-00 CLAMPCLAMP
-
5990464-10833-00 CLAMPCLAMP
-
6090464-10833-00 CLAMPCLAMP
-
6190464-48800-00 CLAMPCLAMP
-
6290464-12830-00 CLAMPCLAMP
-
6390464-48800-00 CLAMPCLAMP
-
6490464-31827-00 CLAMPCLAMP
