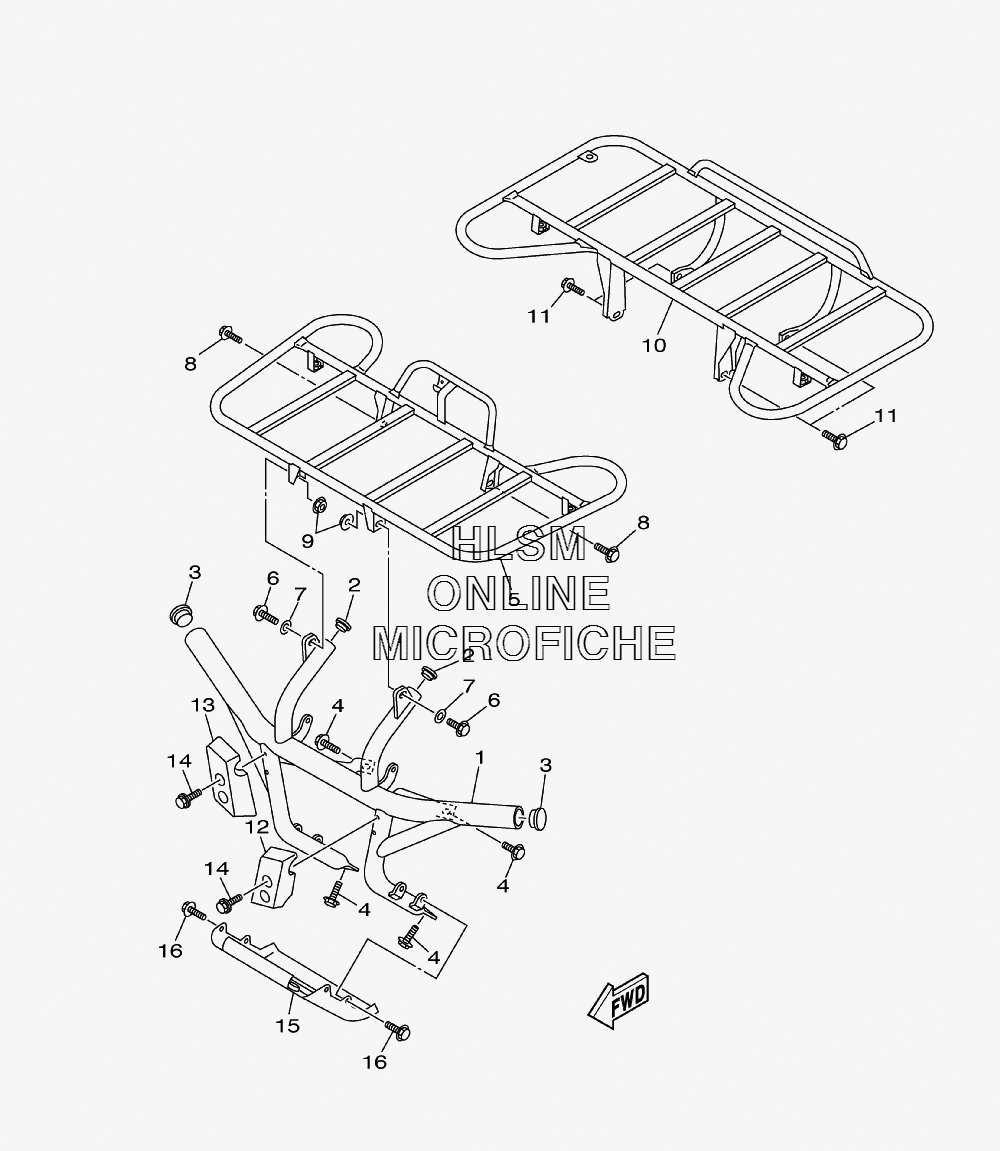

RACK AND BUMPER для Yamaha BIG BEAR 400 HUNTER-IRS - 2007 года выпуска
-
№АртикулНазвание
-
14S1-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25FU-F8415-00-00 DAMPER 1DAMPER 1
-
35UG-F2417-00-00 PLUG (FRONT BUMPER)PLUG (FRONT BUMPER)
-
49581P-08016-00 BOLT, FLANGEBOLT, FLANGE
-
55FU-F4841-30-00 CARRIER, FRONTCARRIER, FRONT
-
69582P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790201-068R3-00 WASHER, PLATEWASHER, PLATE
-
890105-08816-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
995707-06500-00 NUT, FLANGENUT, FLANGE
-
105FU-F4842-30-00 CARRIER, REARCARRIER, REAR
-
1190105-08816-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
124S1-F8435-00-00 DAMPER 4DAMPER 4
-
134S1-F8455-00-00 DAMPER, 4DAMPER, 4
-
1490119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
155FU-F842M-10-00 COVER 1COVER 1
-
1690119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
