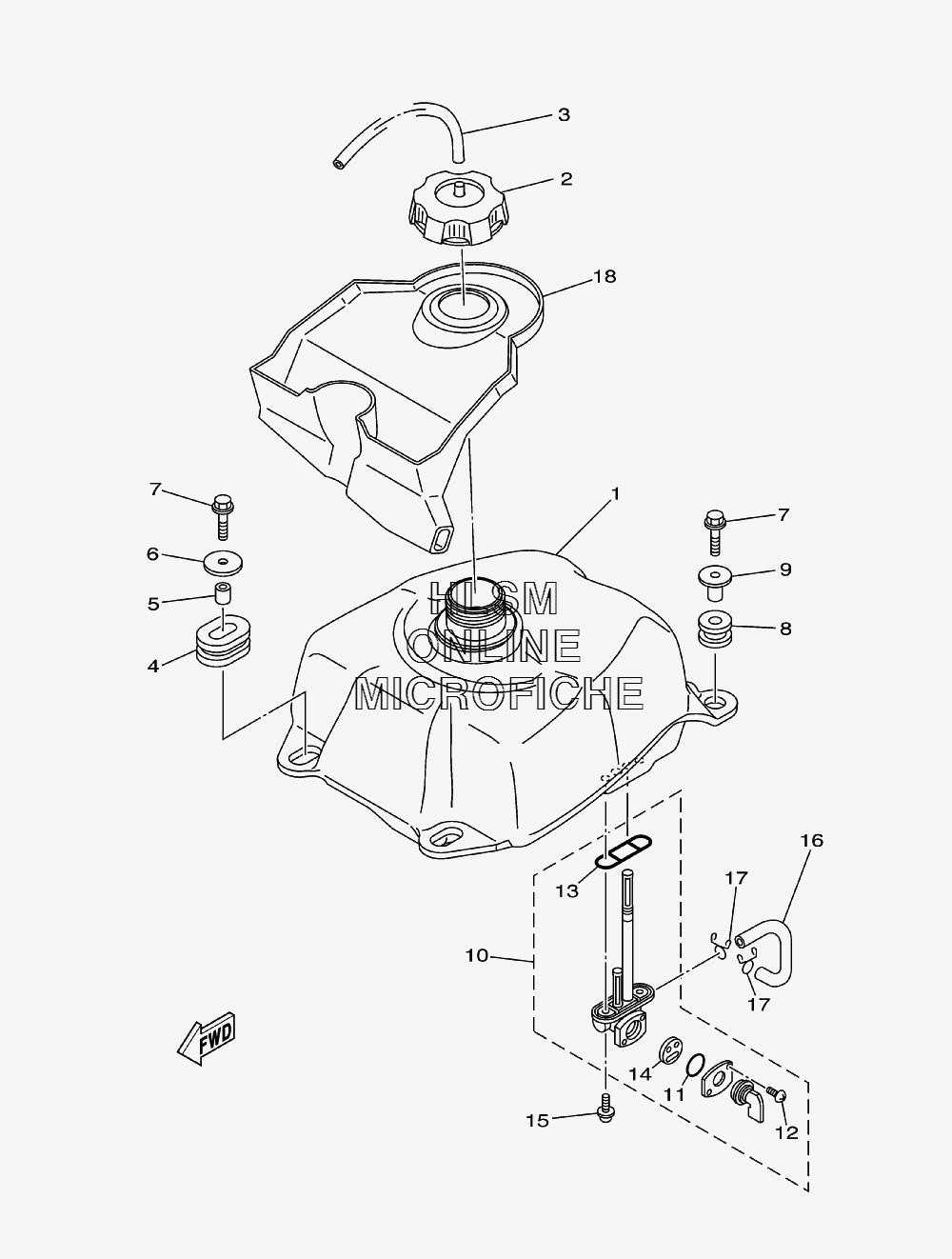

FUEL TANK для Yamaha GRIZZLY 125 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
11C5-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
22FJ-24610-00-00 CAP ASSYCAP ASSY
-
390445-09304-00 HOSE (L310)HOSE (L310)
-
490480-01400-00 GROMMETGROMMET
-
590387-07598-00 COLLARCOLLAR
-
690201-060L5-00 WASHER, PLATEWASHER, PLATE
-
795827-06035-00 BOLT, FLANGEBOLT, FLANGE
-
890480-18290-00 GROMMETGROMMET
-
990387-066H4-00 COLLARCOLLAR
-
1055W-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
113AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
1298507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
134X8-24512-00-00 ...O-RING...O-RING
-
143AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1590149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1690445-10456-00 HOSE (L95)HOSE (L95)
-
1790467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
181C5-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
