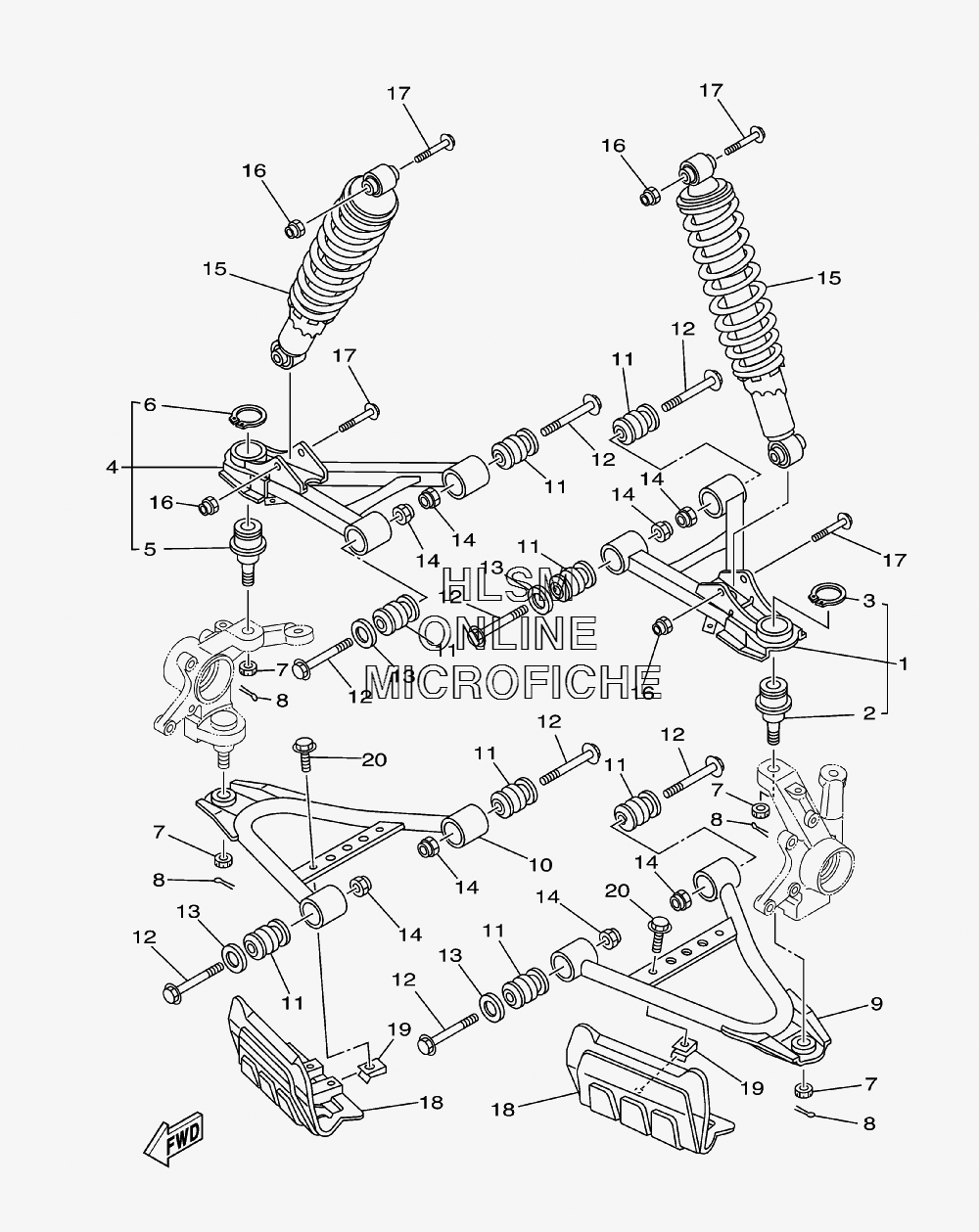

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 350 IRS HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
15ND-F3540-12-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
45ND-F3550-12-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
790171-12816-00 NUT, CASTLENUT, CASTLE
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
91D9-F357A-00-00 ARM, FRONT LOWER LH.ARM, FRONT LOWER LH.
-
101D9-F358A-00-00 ARM, FRONT LOWER RH.ARM, FRONT LOWER RH.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
135KM-22149-00-00 WASHERWASHER
-
1490185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155UH-F3350-01-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-108B1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
185ND-F3123-00-00 COVER, LOWER 1COVER, LOWER 1
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
