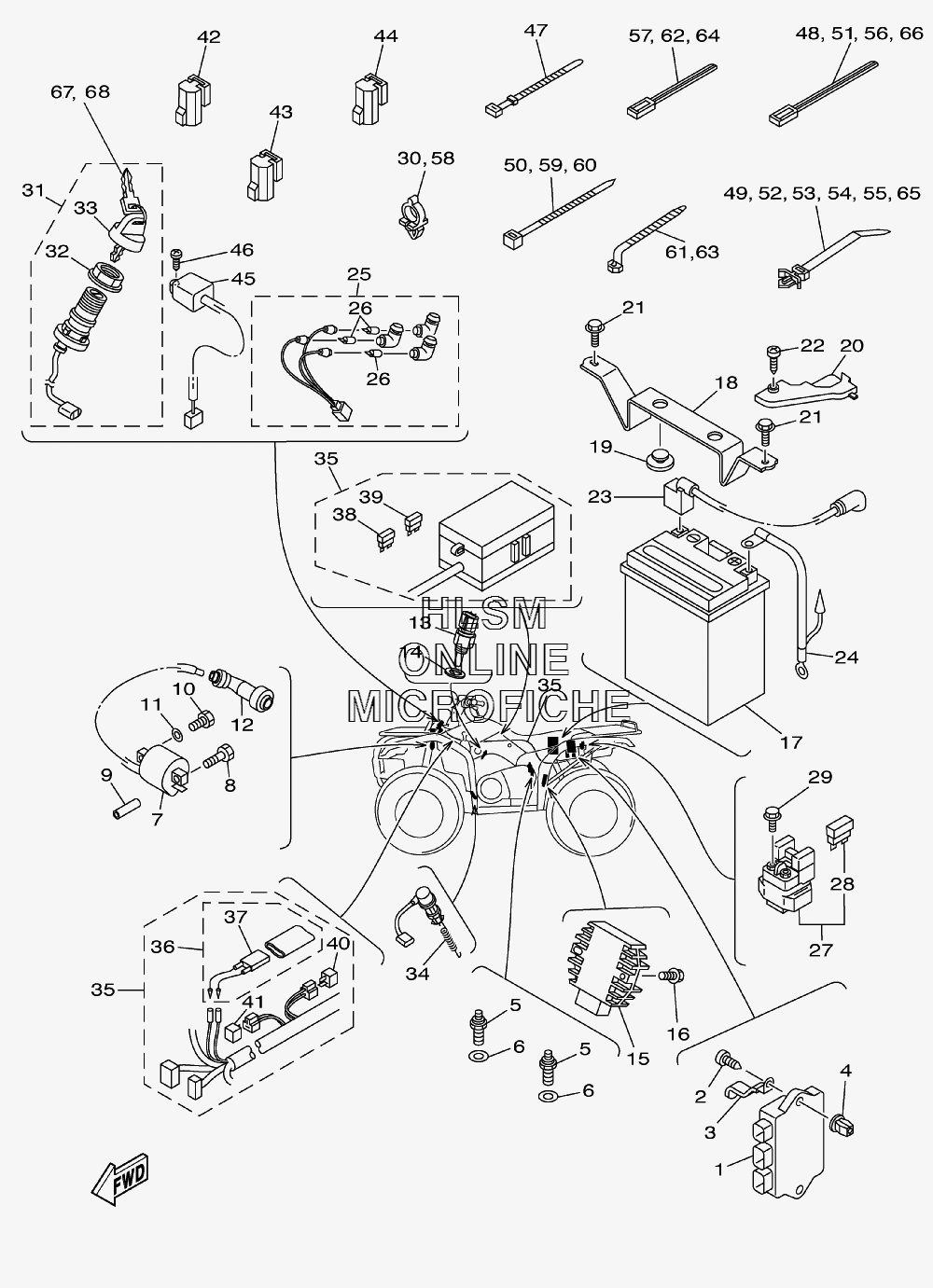

ELECTRICAL для Yamaha GRIZZLY 350 IRS - 2007 года выпуска
-
№АртикулНазвание
-
14S2-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297707-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
75KM-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06723-00 BOLTBOLT
-
95UH-H1318-00-00 SPACERSPACER
-
1097007-06020-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
134GB-83591-10-00 THERMO UNITTHERMO UNIT
-
1490201-12172-00 WASHER, PLATEWASHER, PLATE
-
155GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1690105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
175TE-H2100-00-00 BATTERY ASSY (YUASA YTX14AH)BATTERY ASSY (YUASA YTX14AH)
-
185TE-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
19371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
205ND-H2119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2297707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
235TE-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
245UH-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
254S1-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
265GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
274SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
281AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
299502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
3090464-10833-00 CLAMPCLAMP
-
315LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
323HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
333HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
344KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
354S2-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
363D5-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
373D5-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
385JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
395JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
403WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
414WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
4229U-81950-93-00 RELAY ASSYRELAY ASSY
-
435DM-81950-00-00 RELAY ASSYRELAY ASSY
-
441UY-81950-92-00 RELAY ASSYRELAY ASSY
-
454SH-86510-10-00 MOTOR CONTROL UNIT ASSYMOTOR CONTROL UNIT ASSY
-
4698907-06016-00 SCREW, BINDSCREW, BIND
-
4790464-51800-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
4990464-25800-00 CLAMPCLAMP
-
5090464-31827-00 CLAMPCLAMP
-
5190464-40825-00 CLAMPCLAMP
-
5290464-25800-00 CLAMPCLAMP
-
5390464-25800-00 CLAMPCLAMP
-
5490464-25800-00 CLAMPCLAMP
-
5590464-25800-00 CLAMPCLAMP
-
5690464-40825-00 CLAMPCLAMP
-
5790464-48800-00 CLAMPCLAMP
-
5890464-10833-00 CLAMPCLAMP
-
5990464-31827-00 CLAMPCLAMP
-
6090464-31827-00 CLAMPCLAMP
-
6190464-12830-00 CLAMPCLAMP
-
6290464-48800-00 CLAMPCLAMP
-
6390464-12830-00 CLAMPCLAMP
-
6490464-48800-00 CLAMPCLAMP
-
6590464-25800-00 CLAMPCLAMP
-
6690464-40825-00 CLAMPCLAMP
-
6790890-56001-00 KEY BLANK (A-TYPE) (OPT)KEY BLANK (A-TYPE) (OPT)
-
6890890-56002-00 KEY BLANK (A-TYPE) (OPT)KEY BLANK (A-TYPE) (OPT)
