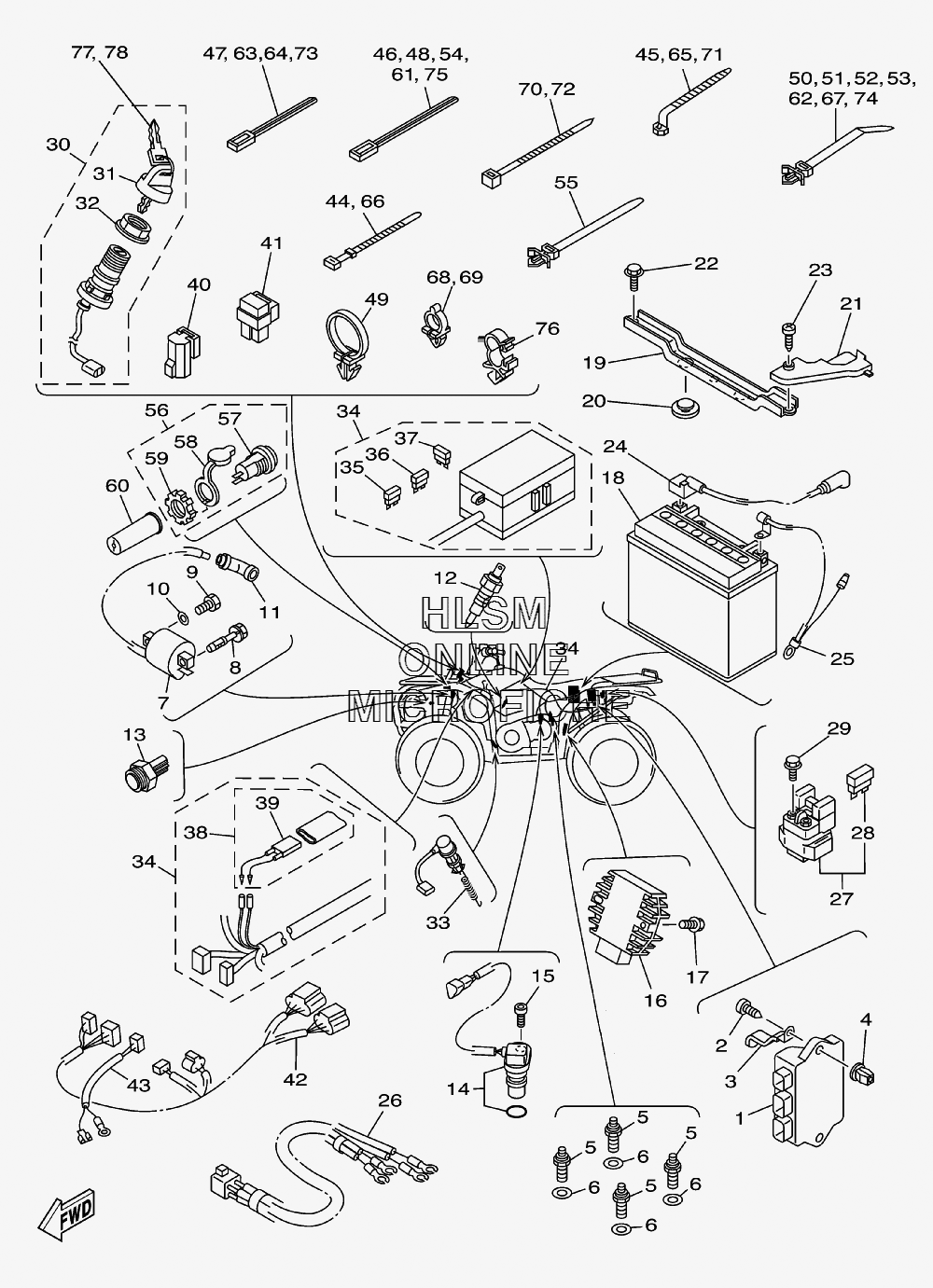

ELECTRICAL для Yamaha GRIZZLY 450 OUTDOORSMAN EDITION - 2007 года выпуска
-
№АртикулНазвание
-
15ND-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297707-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
73KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06723-00 BOLTBOLT
-
997007-06020-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
111UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
125KM-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
135ND-82560-10-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
145ND-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1590110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
185FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
195ND-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
20371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
215ND-H2119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2397707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
245ND-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
255ND-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
265ND-82541-00-00 WIRE, LEADWIRE, LEAD
-
274SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
281AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
299502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
305ND-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
313HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
323HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
334KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
341D9-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
355JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
365JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
375JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
385ND-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
395ND-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
4029U-81950-93-00 RELAY ASSYRELAY ASSY
-
415DM-81950-00-00 RELAY ASSYRELAY ASSY
-
425ND-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
435KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4490464-51800-00 CLAMPCLAMP
-
4590464-12830-00 CLAMPCLAMP
-
4690464-40825-00 CLAMPCLAMP
-
4790464-31827-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
4990464-19815-00 CLAMPCLAMP
-
5090464-25800-00 CLAMPCLAMP
-
5190464-25800-00 CLAMPCLAMP
-
5290464-25800-00 CLAMPCLAMP
-
5390464-25800-00 CLAMPCLAMP
-
5490464-40825-00 CLAMPCLAMP
-
5590464-38800-00 CLAMPCLAMP
-
565FU-H1920-10-00 TERMINAL ASSYTERMINAL ASSY
-
575FU-H1925-10-00 ...TERMINAL...TERMINAL
-
585FU-H1942-10-00 ...COVER...COVER
-
595FU-H191B-10-00 ...NUT...NUT
-
605FU-H2599-01-00 COVER, CONNECTERCOVER, CONNECTER
-
6190464-40825-00 CLAMPCLAMP
-
6290464-25800-00 CLAMPCLAMP
-
6390464-31827-00 CLAMPCLAMP
-
6490464-31827-00 CLAMPCLAMP
-
6590464-12830-00 CLAMPCLAMP
-
6690464-51800-00 CLAMPCLAMP
-
6790464-25800-00 CLAMPCLAMP
-
6890464-10833-00 CLAMPCLAMP
-
6990464-10833-00 CLAMPCLAMP
-
7090464-48800-00 CLAMPCLAMP
-
7190464-12830-00 CLAMPCLAMP
-
7290464-48800-00 CLAMPCLAMP
-
7390464-31827-00 CLAMPCLAMP
-
7490464-25800-00 CLAMPCLAMP
-
7590464-40825-00 CLAMPCLAMP
-
7690464-16006-00 CLAMPCLAMP
-
7790890-56001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
7890890-56002-00 KEY BLANK (B-TYPE) (OPT)KEY BLANK (B-TYPE) (OPT)
