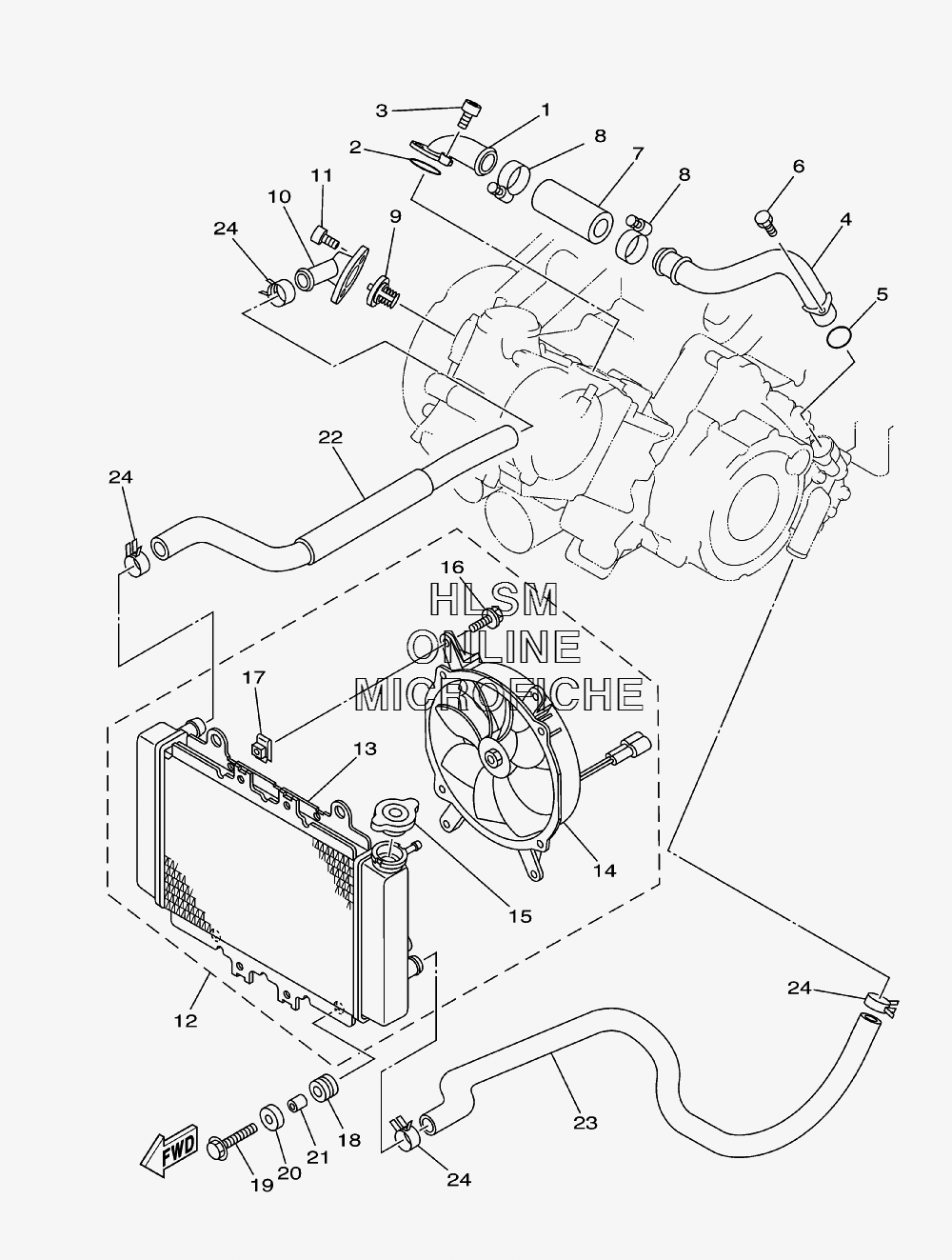

RADIATOR ASSY для Yamaha GRIZZLY 450 SPECIAL SILVER EDITION - 2007 года выпуска
-
№АртикулНазвание
-
15GH-12446-00-00 JOINTJOINT
-
293210-33786-00 O-RINGO-RING
-
390110-06136-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45GH-12484-00-00 PIPE 4PIPE 4
-
593210-18417-00 O-RINGO-RING
-
691317-06012-00 BOLTBOLT
-
75GH-12481-00-00 PIPE 1PIPE 1
-
890450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
92TV-12411-00-00 THERMOSTATTHERMOSTAT
-
105GH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1191317-06020-00 BOLTBOLT
-
125ND-E2460-01-00 RADIATOR ASSYRADIATOR ASSY
-
135ND-E240A-01-00 ...RADIATOR ASSY...RADIATOR ASSY
-
145ND-E2405-01-00 ...BLOWER ASSY...BLOWER ASSY
-
155ND-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
165ND-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
175ND-E2535-00-00 ...PLATE...PLATE
-
1890480-15235-00 GROMMETGROMMET
-
1995807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2090209-06174-00 WASHERWASHER
-
2190387-060A7-00 COLLARCOLLAR
-
225ND-E2482-00-00 PIPE 2 (RADIATOR HOSE)PIPE 2 (RADIATOR HOSE)
-
235ND-E2483-00-00 PIPE 3 (RADIATOR HOSE)PIPE 3 (RADIATOR HOSE)
-
2490467-25800-00 CLIPCLIP
