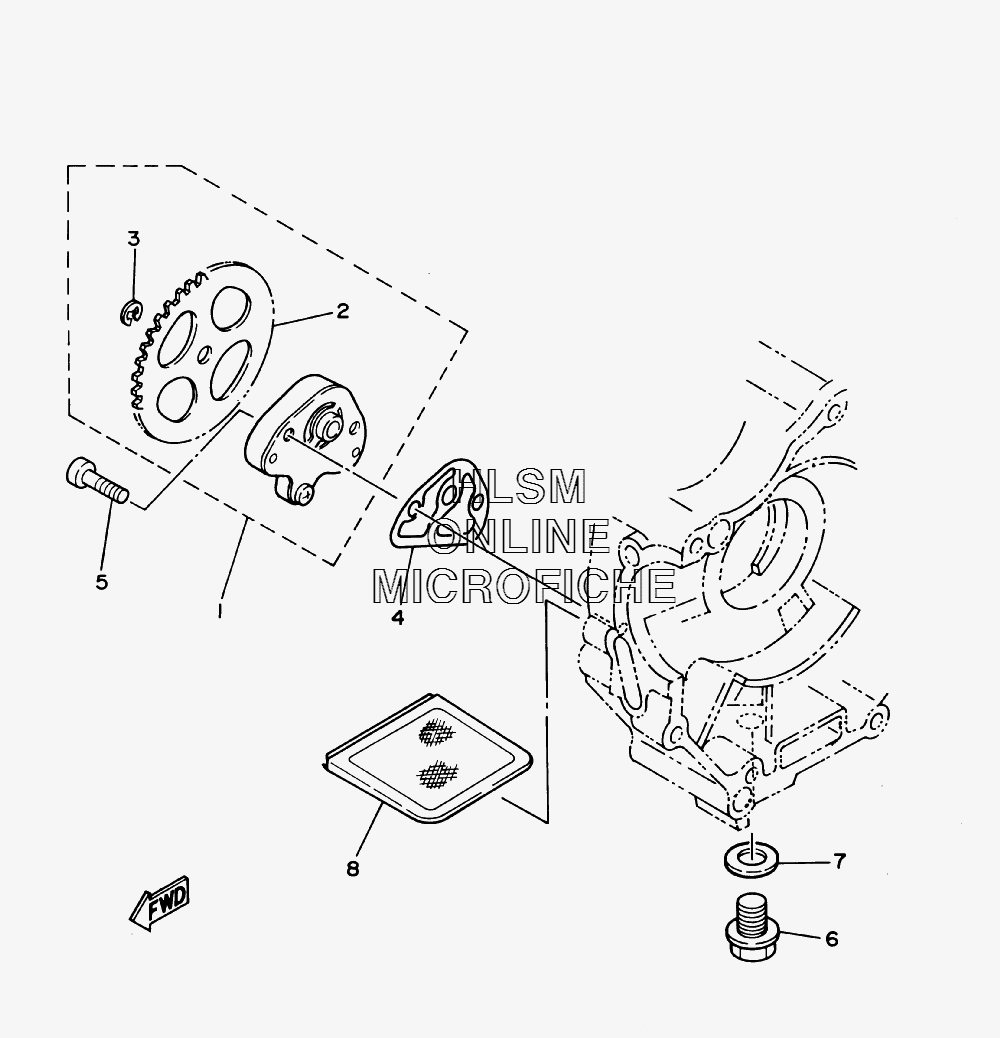

OIL PUMP для Yamaha GRIZZLY 80 - 2007 года выпуска
-
№АртикулНазвание
-
12FJ-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
246J-13325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
399001-05600-00 ...CIRCLIP...CIRCLIP
-
422F-13329-01-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
590155-06007-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
690340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
7812-11198-00-00 GASKETGASKET
-
822F-13411-01-00 STRAINER, OILSTRAINER, OIL
