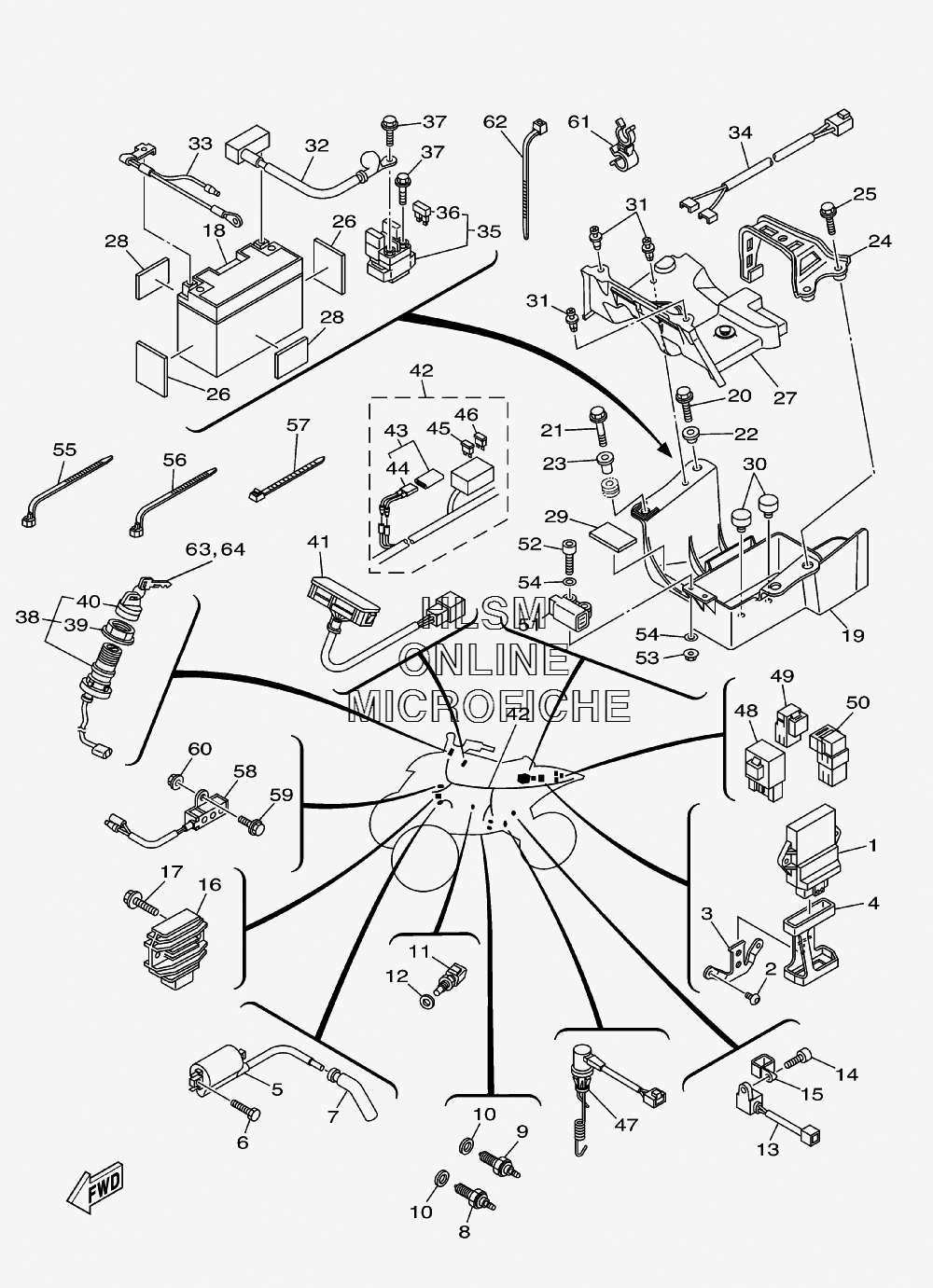

ELECTRICAL для Yamaha RAPTOR 700 SE - 2007 года выпуска
-
№АртикулНазвание
-
11S3-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
31S3-21274-00-00 BRACKET, C.D.I. UNITBRACKET, C.D.I. UNIT
-
41S3-85546-00-00 BANDBAND
-
53TB-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697002-05020-00 BOLTBOLT
-
75VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
85LP-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
93GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
115PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1290430-12202-00 GASKETGASKET
-
131S3-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1491312-06016-00 BOLTBOLT
-
1590461-10004-00 CLAMPCLAMP
-
165BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
185GJ-82100-01-00 BATTERY ASSY (GS GT9B-4)BATTERY ASSY (GS GT9B-4)
-
191S3-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
2090105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2195802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06153-00 COLLARCOLLAR
-
2390387-06168-00 COLLARCOLLAR
-
241S3-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2595802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
261S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
271S3-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
281S3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2922F-2139X-00-00 DAMPERDAMPER
-
305TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
3190269-06002-00 RIVETRIVET
-
321S3-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
331S3-82116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
341S3-82541-00-00 WIRE, LEADWIRE, LEAD
-
351S3-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
362GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
3795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
385LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
393HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
403HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
411S3-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
421S3-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
435GT-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
445GT-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
455JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
465JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
471S3-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
485VK-81950-30-00 RELAY ASSYRELAY ASSY
-
495EA-81950-20-00 RELAY ASSYRELAY ASSY
-
505DM-81950-00-00 RELAY ASSYRELAY ASSY
-
515PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
5291312-04025-00 BOLTBOLT
-
5395702-04500-00 NUT, FLANGENUT, FLANGE
-
5490201-04030-00 WASHER, PLATEWASHER, PLATE
-
5590464-13077-00 CLAMPCLAMP
-
5690464-15195-00 CLAMPCLAMP
-
5790465-13M11-00 CLAMPCLAMP
-
581S3-85370-00-00 RESISTOR ASSYRESISTOR ASSY
-
5995802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6095702-06500-00 NUT, FLANGENUT, FLANGE
-
6190464-16013-00 CLAMPCLAMP
-
6290465-10098-00 CLAMPCLAMP
-
6390890-56001-00 KEY BLANK (A-TYPE) (OPT)KEY BLANK (A-TYPE) (OPT)
-
6490890-56002-00 KEY BLANK (B-TYPE) (OPT)KEY BLANK (B-TYPE) (OPT)
