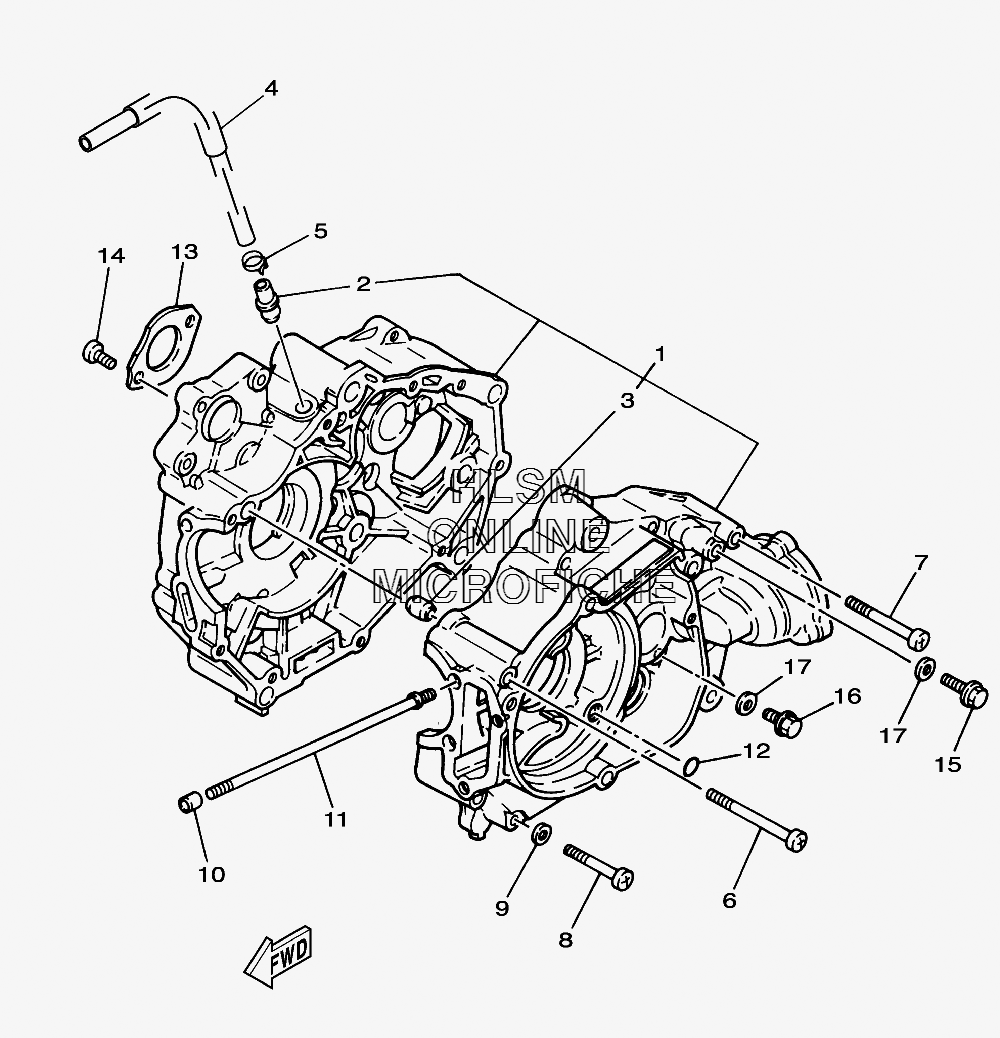

CRANKCASE для Yamaha RAPTOR 80 - 2007 года выпуска
-
№АртикулНазвание
-
12FJ-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
259V-11167-00-00 ...PIPE, BREATHER 2...PIPE, BREATHER 2
-
399530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
42D3-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
590467-13064-00 CLIPCLIP
-
698507-06075-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898507-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
990430-06014-00 GASKETGASKET
-
1099530-08012-00 PIN, DOWELPIN, DOWEL
-
1190116-06399-00 BOLT, STUDBOLT, STUD
-
1293210-06564-00 O-RINGO-RING
-
1322F-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1498507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1595817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1695817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1790430-06166-00 GASKETGASKET
