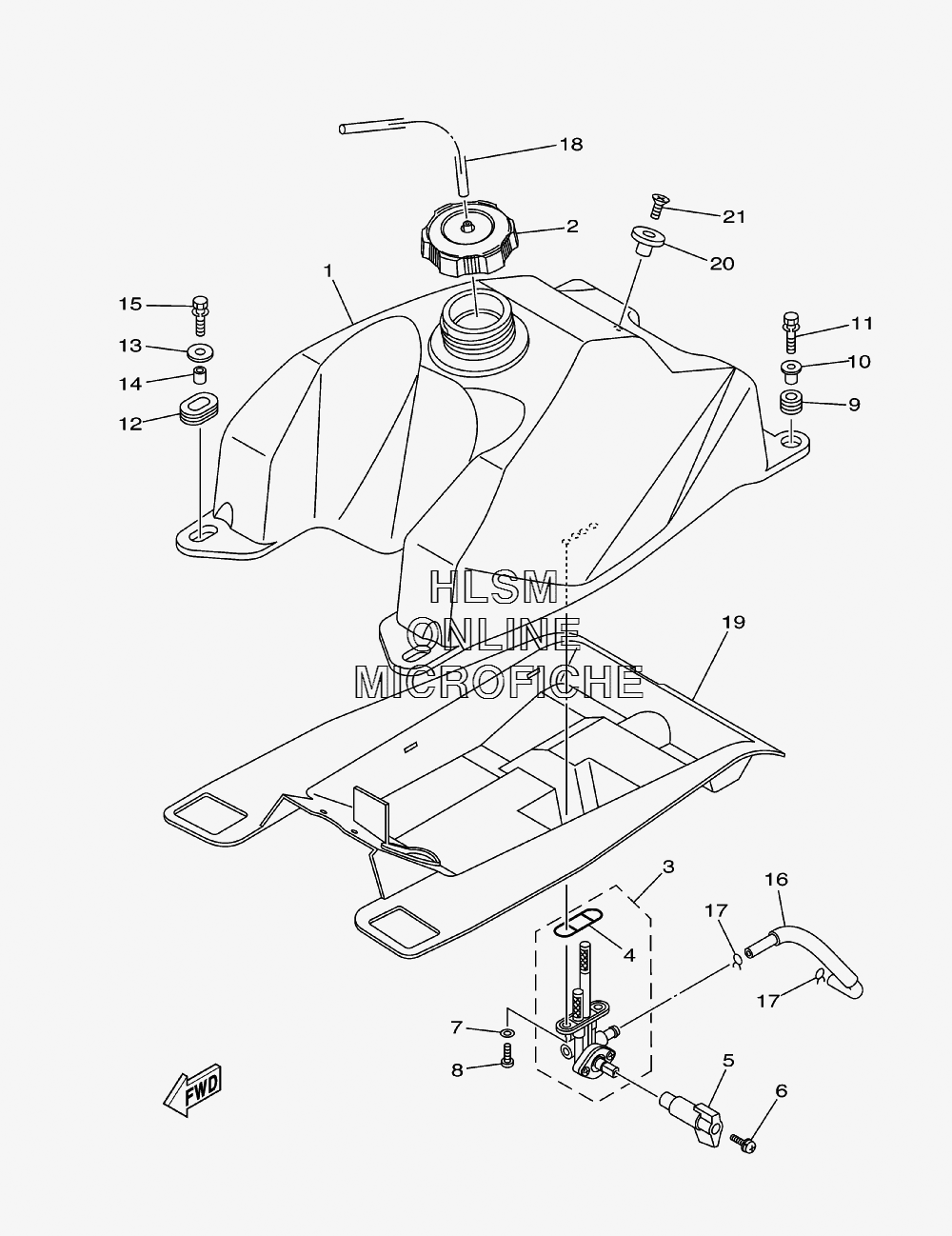

FUEL TANK для Yamaha WOLVERINE 350 SPORT - 2007 года выпуска
-
№АртикулНазвание
-
13C2-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
33D5-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
41P6-24512-00-00 ...GASKET...GASKET
-
53D5-24524-00-00 LEVER, COCKLEVER, COCK
-
63D5-24535-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990480-18290-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1190119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
165UH-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
1890445-088C5-00 HOSE (L400)HOSE (L400)
-
195UH-F414H-01-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
204EW-2412F-00-00 BRACKET, SEATBRACKET, SEAT
-
2190151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
