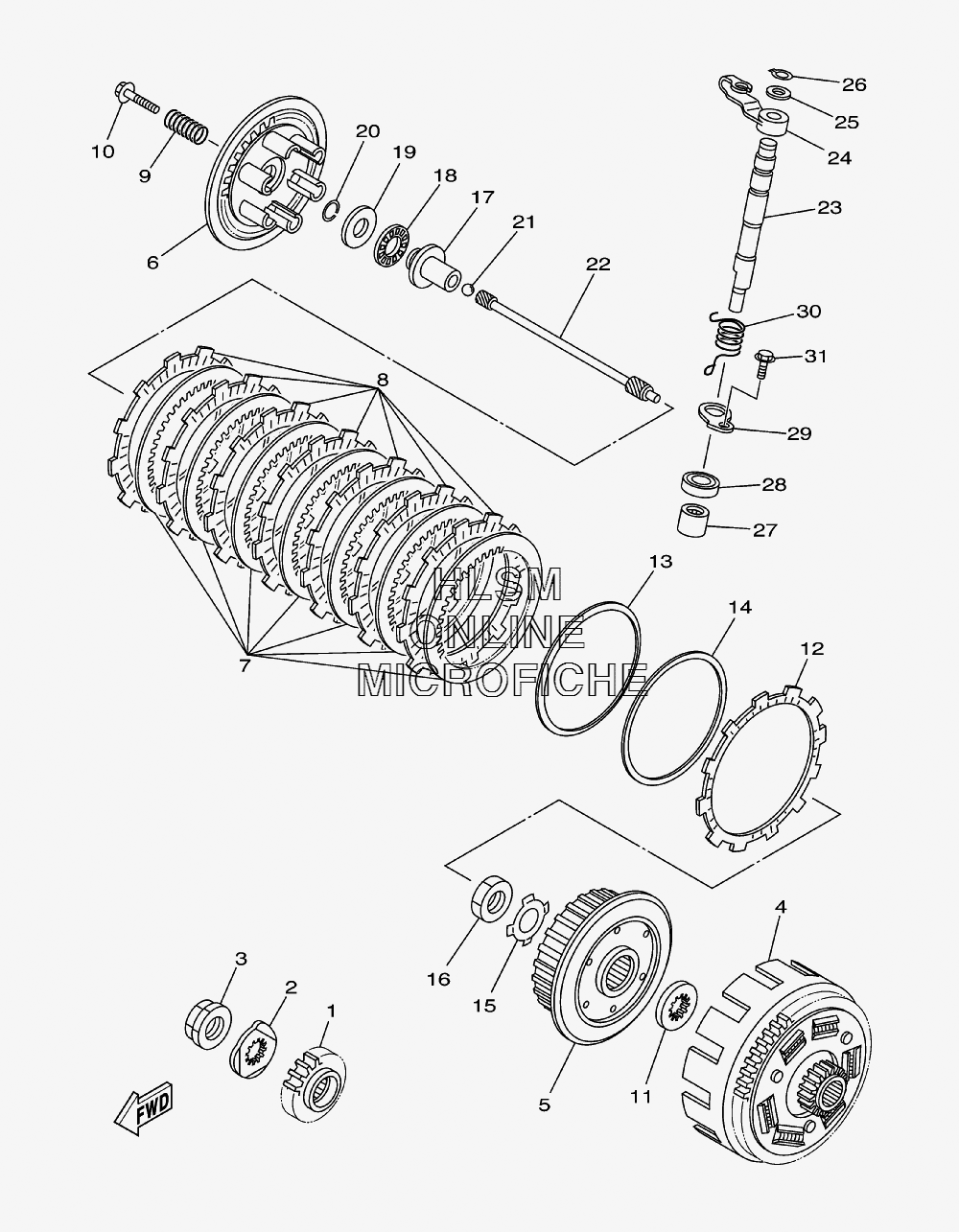

CLUTCH для Yamaha YFZ450 BILL BALLANCE EDITION - 2007 года выпуска
-
№АртикулНазвание
-
15TG-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290215-21003-00 WASHER, LOCKWASHER, LOCK
-
390179-20001-00 NUTNUT
-
45D3-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
55TA-16371-10-00 BOSS, CLUTCHBOSS, CLUTCH
-
65TG-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
74X7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
85TA-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
990501-231E9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090159-06010-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
112JN-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
125JG-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
135JG-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
145JG-16384-00-00 PLATE, SEATPLATE, SEAT
-
1590215-20005-00 WASHER, LOCKWASHER, LOCK
-
1690170-20327-00 NUTNUT
-
175TG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1893340-21505-00 BEARING, FLAT #40BEARING, FLAT #40
-
1990201-125L6-00 WASHER, PLATEWASHER, PLATE
-
2093440-10085-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
2193515-32029-00 BALL 15/32BALL 15/32
-
225TG-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
235TG-16382-10-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
245TG-16342-00-00 LEVER, PUSHLEVER, PUSH
-
2590201-10032-00 WASHER, PLATEWASHER, PLATE
-
2699009-10400-00 CIRCLIPCIRCLIP
-
2793317-11287-00 BEARINGBEARING
-
2893102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
295D3-16384-00-00 PLATE, SEATPLATE, SEAT
-
3090508-16054-00 SPRING, TORSIONSPRING, TORSION
-
3195022-06012-00 BOLT, FLANGEBOLT, FLANGE
