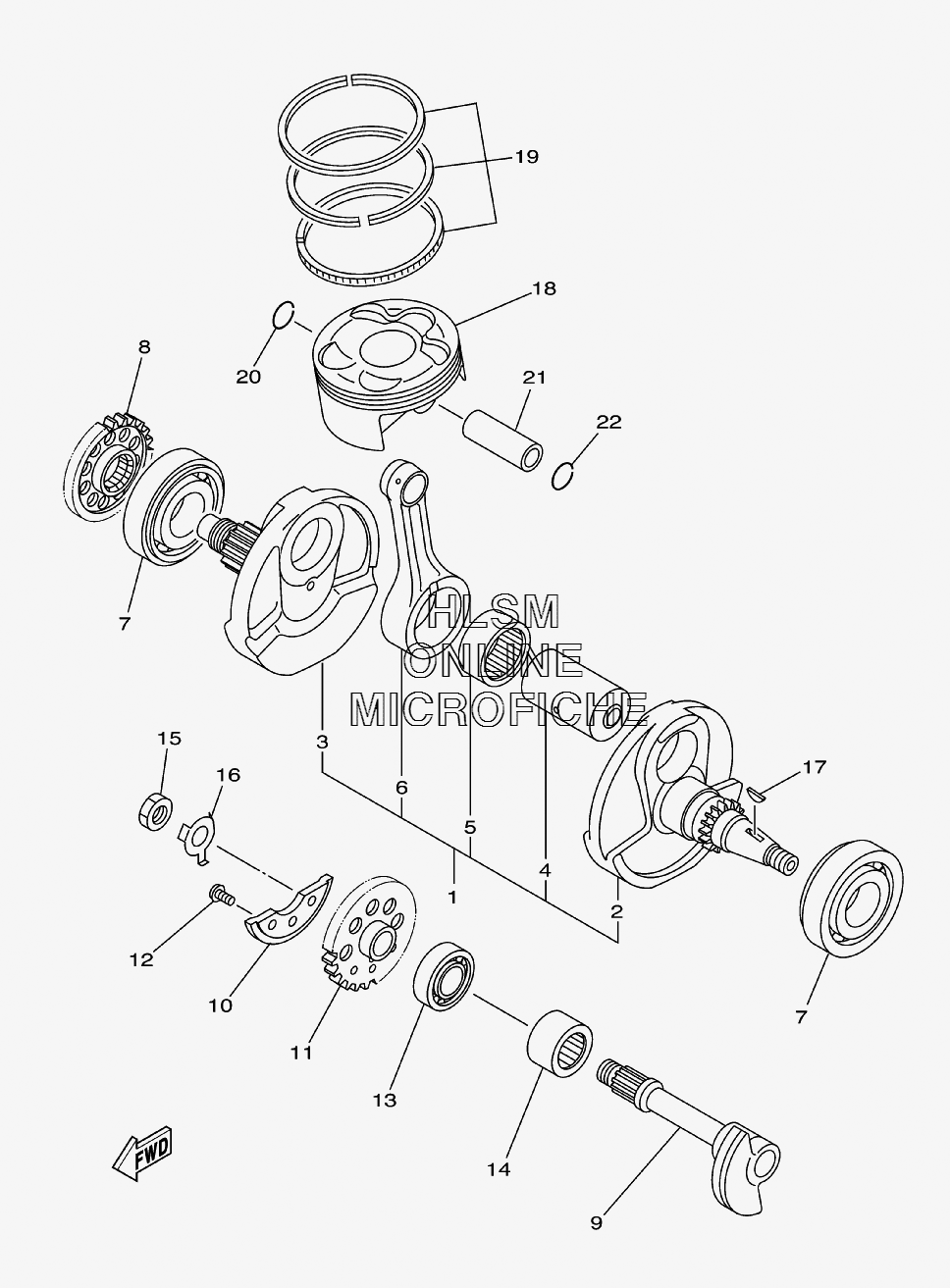

CRANKSHAFT - PISTON для Yamaha YFZ450 SE - 2007 года выпуска
-
№АртикулНазвание
-
15TG-11400-10-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25TG-11412-10-00 ...CRANK 1...CRANK 1
-
35TG-11422-10-00 ...CRANK 2...CRANK 2
-
45TG-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-63437-00 ...BEARING...BEARING
-
65TG-11651-10-00 ...ROD, CONNECTING...ROD, CONNECTING
-
793306-30633-00 BEARINGBEARING
-
85TA-11536-00-00 GEAR, DRIVEGEAR, DRIVE
-
95TA-11455-11-00 SHAFT 1SHAFT 1
-
105BE-11454-00-00 WEIGHT 1WEIGHT 1
-
115TA-11531-01-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
1290149-06084-00 SCREWSCREW
-
1393306-20335-00 BEARINGBEARING
-
1493311-62574-00 BEARINGBEARING
-
1590170-14171-00 NUTNUT
-
1690215-14287-00 WASHER, LOCKWASHER, LOCK
-
1790280-03006-00 KEY, WOODRUFFKEY, WOODRUFF
-
185TG-11631-11-00 PISTON (STD)PISTON (STD)
-
195TG-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
2093450-22027-00 CIRCLIP, INNERCIRCLIP, INNER
-
215TG-11633-10-00 PIN, PISTONPIN, PISTON
-
2293450-22027-00 CIRCLIPCIRCLIP
