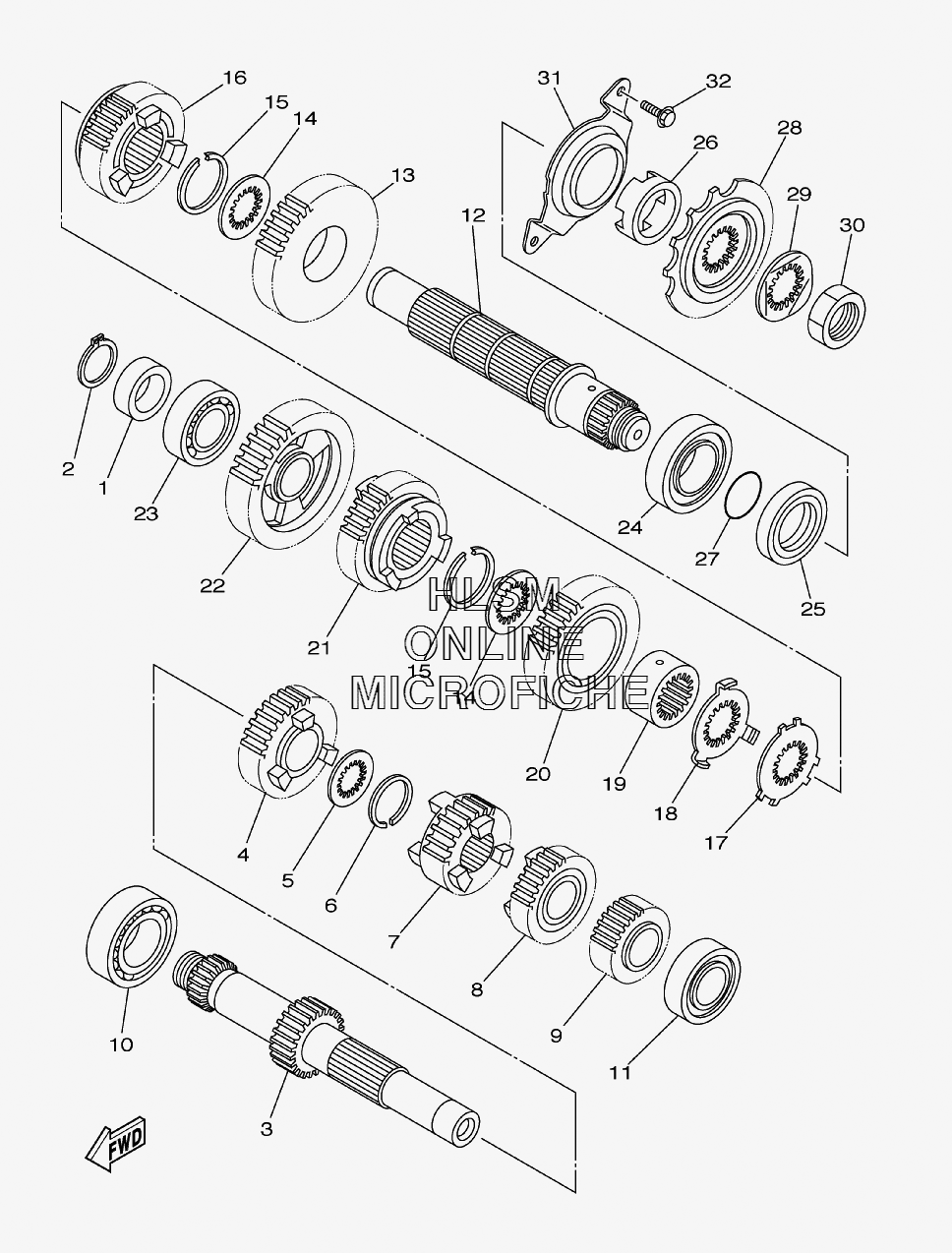

TRANSMISSION для Yamaha YFZ450 SE2-BLACK FLAMES - 2007 года выпуска
-
№АртикулНазвание
-
190387-20030-00 COLLARCOLLAR
-
299009-20400-00 CIRCLIPCIRCLIP
-
35TG-17411-00-00 AXLE, MAINAXLE, MAIN
-
45TG-17151-00-00 GEAR, 5TH PINION (20T)GEAR, 5TH PINION (20T)
-
590209-21332-00 WASHERWASHER
-
693440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
75TG-17131-00-00 GEAR, 3RD PINION (16T)GEAR, 3RD PINION (16T)
-
85TG-17141-00-00 GEAR, 4TH PINION (18T)GEAR, 4TH PINION (18T)
-
95TG-17121-00-00 GEAR, 2ND PINION (14T)GEAR, 2ND PINION (14T)
-
1093306-20532-00 BEARINGBEARING
-
1193306-00431-00 BEARINGBEARING
-
125TG-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
135TG-17221-00-00 GEAR, 2ND WHEEL (27T)GEAR, 2ND WHEEL (27T)
-
1490209-25342-00 WASHERWASHER
-
1593440-28062-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
165TG-17241-00-00 GEAR, 4TH WHEEL (23T)GEAR, 4TH WHEEL (23T)
-
1790209-25349-00 WASHERWASHER
-
1890209-25350-00 WASHERWASHER
-
1990387-2810U-00 COLLARCOLLAR
-
205TG-17231-00-00 GEAR, 3RD WHEEL (25T)GEAR, 3RD WHEEL (25T)
-
215TG-17251-00-00 GEAR, 5TH WHEEL (21T)GEAR, 5TH WHEEL (21T)
-
225BF-17211-00-00 GEAR, 1ST WHEEL (29T)GEAR, 1ST WHEEL (29T)
-
2393306-00426-00 BEARINGBEARING
-
2493306-20593-00 BEARINGBEARING
-
2593102-32480-00 OIL SEALOIL SEAL
-
2690387-2513F-00 COLLARCOLLAR
-
2793210-22164-00 O-RINGO-RING
-
285NG-17460-00-00 SPROCKET, DRIVE (14T)SPROCKET, DRIVE (14T)
-
2990215-21003-00 WASHER, LOCKWASHER, LOCK
-
3090179-20001-00 NUTNUT
-
315GR-17471-10-00 PLATE, COVERPLATE, COVER
-
3295022-06016-00 BOLT, FLANGEBOLT, FLANGE
