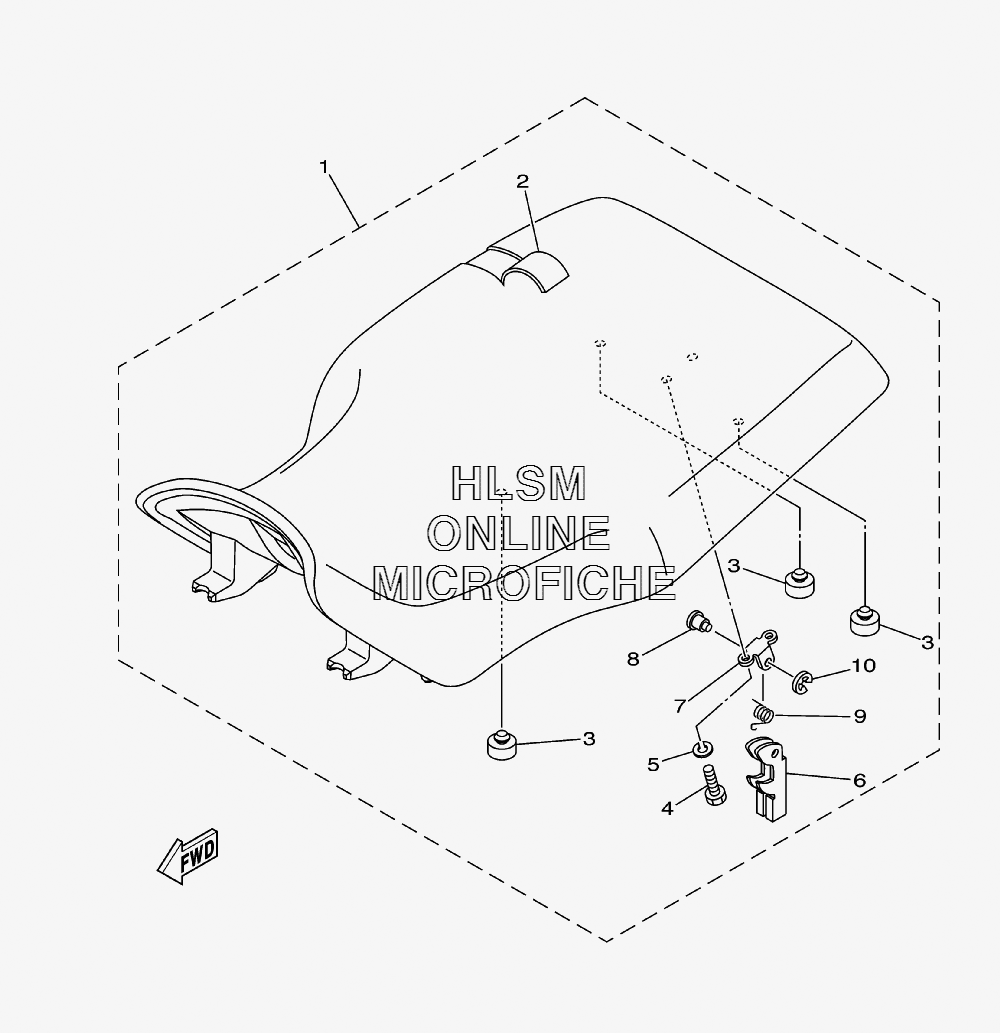

SEAT для Yamaha GRIZZLY 125 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
11C5-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21C5-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
497002-06012-00 ...BOLT...BOLT
-
592902-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
629U-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
74K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
84K0-24774-01-00 ...PIN...PIN
-
990508-20779-00 ...SPRING, TORSION...SPRING, TORSION
-
1099001-04600-00 ...CIRCLIP...CIRCLIP
