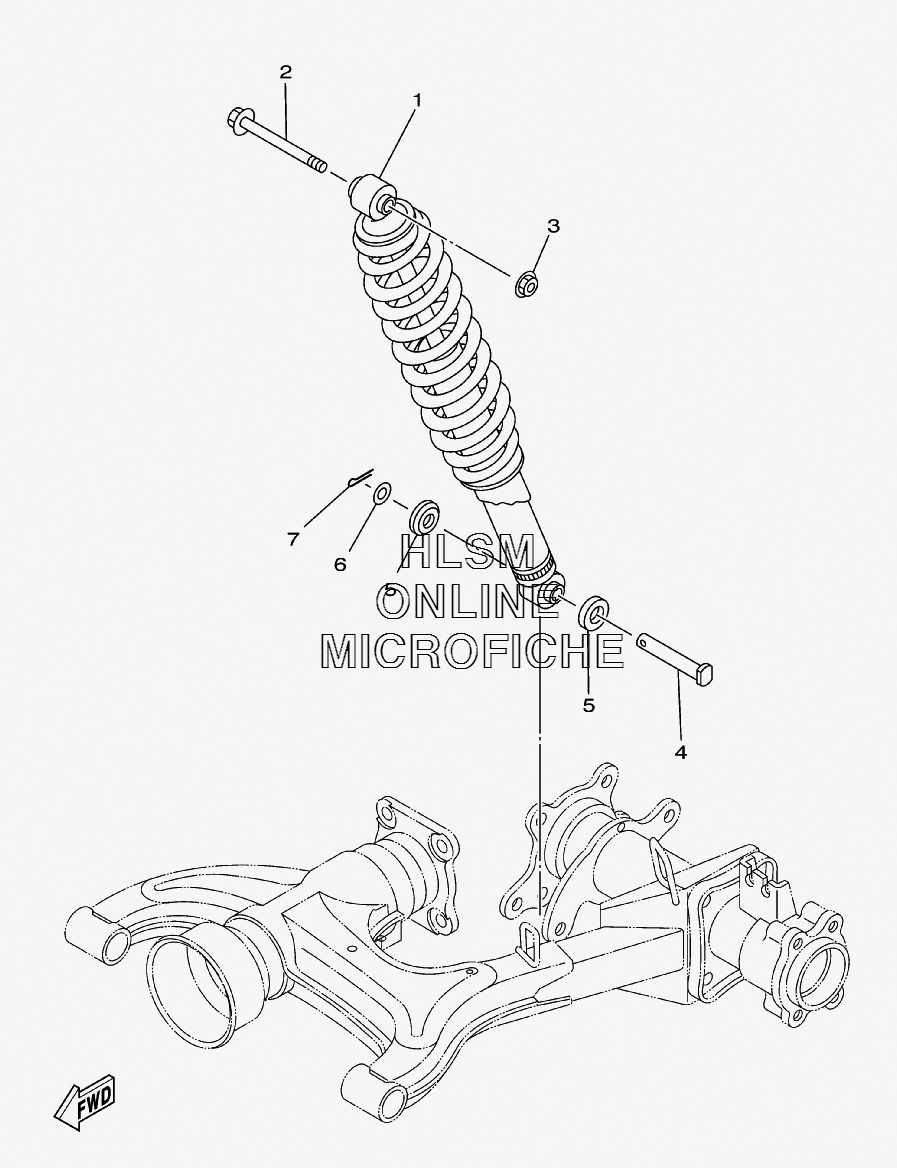

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GRIZZLY 350 4WD - 2008 года выпуска
-
№АртикулНазвание
-
15UH-F2210-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-12803-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-12009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490240-12092-00 PIN, CLEVISPIN, CLEVIS
-
51W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
690201-12049-00 WASHER, PLATEWASHER, PLATE
-
791402-30025-00 PIN, COTTERPIN, COTTER
