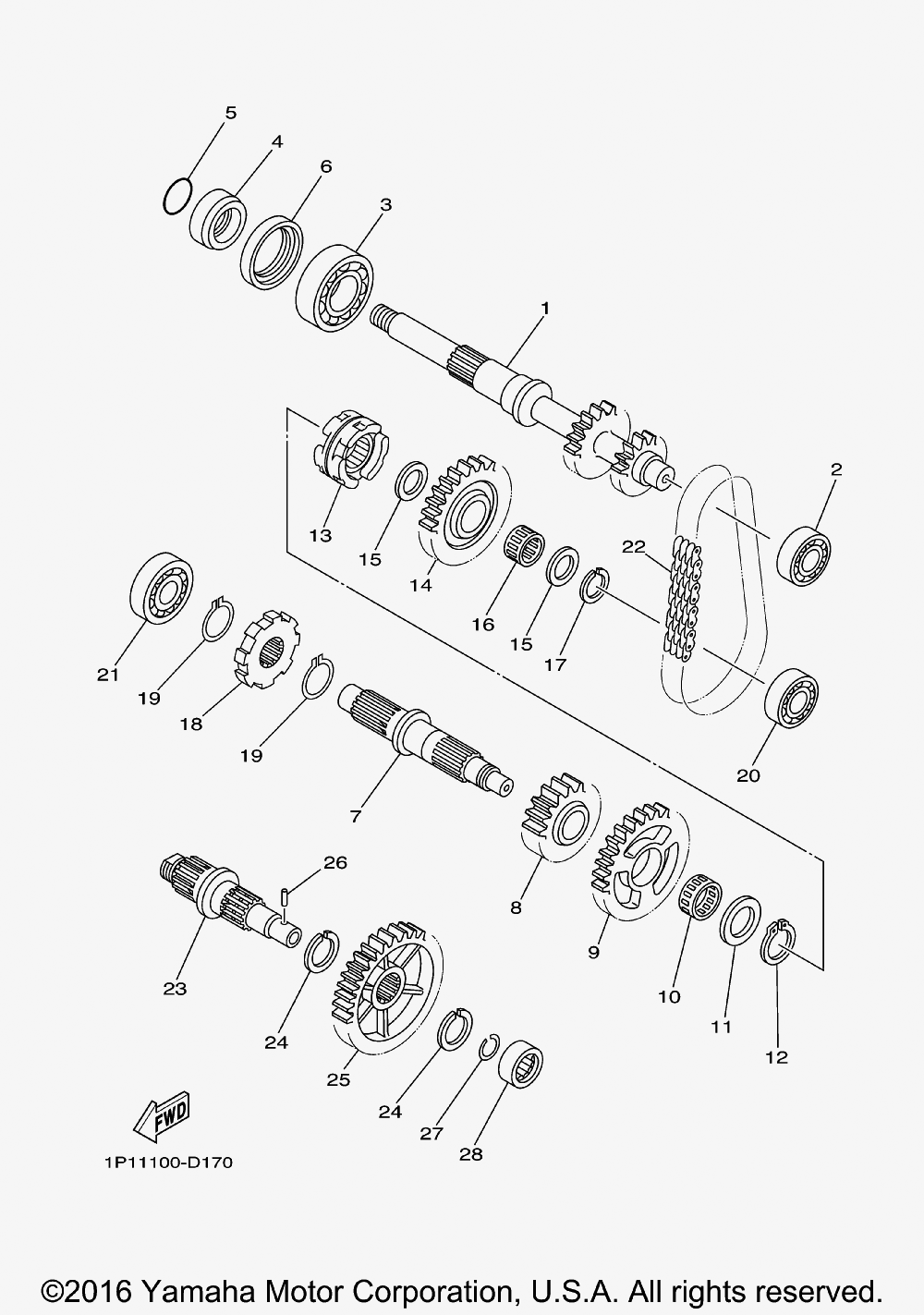

TRANSMISSION для Yamaha GRIZZLY 400 4WD - 2008 года выпуска
-
№АртикулНазвание
-
15TE-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00415-00 BEARINGBEARING
-
393306-20601-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
71P1-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
85GH-17582-00-00 GEAR, MIDDLE DRIVE(24T)GEAR, MIDDLE DRIVE(24T)
-
95GH-17223-00-00 GEAR, HIGH WHEEL(38T)GEAR, HIGH WHEEL(38T)
-
1093310-32590-00 BEARINGBEARING
-
1190201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1293440-25084-00 CIRCLIPCIRCLIP
-
131P1-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
145GH-17453-10-00 SPROCKET, DRIVEN(29T)SPROCKET, DRIVEN(29T)
-
1590201-20278-00 WASHER, PLATEWASHER, PLATE
-
1693310-420F2-00 BEARINGBEARING
-
1793410-20038-00 CIRCLIPCIRCLIP
-
185GH-17473-00-00 STOPPERSTOPPER
-
1993440-25084-00 CIRCLIPCIRCLIP
-
2093306-30201-00 BEARINGBEARING
-
2193306-20464-00 BEARINGBEARING
-
2294591-54038-00 CHAIN(23RH302-38 ASM)CHAIN(23RH302-38 ASM)
-
235GT-17523-00-00 SHAFTSHAFT
-
2493440-25084-00 CIRCLIPCIRCLIP
-
255GH-17583-00-00 GEAR, MIDDLE DRIVEN(39T)GEAR, MIDDLE DRIVEN(39T)
-
2693603-14240-00 PIN, DOWELPIN, DOWEL
-
2793440-14155-00 CIRCLIPCIRCLIP
-
2893311-42077-00 BEARINGBEARING
