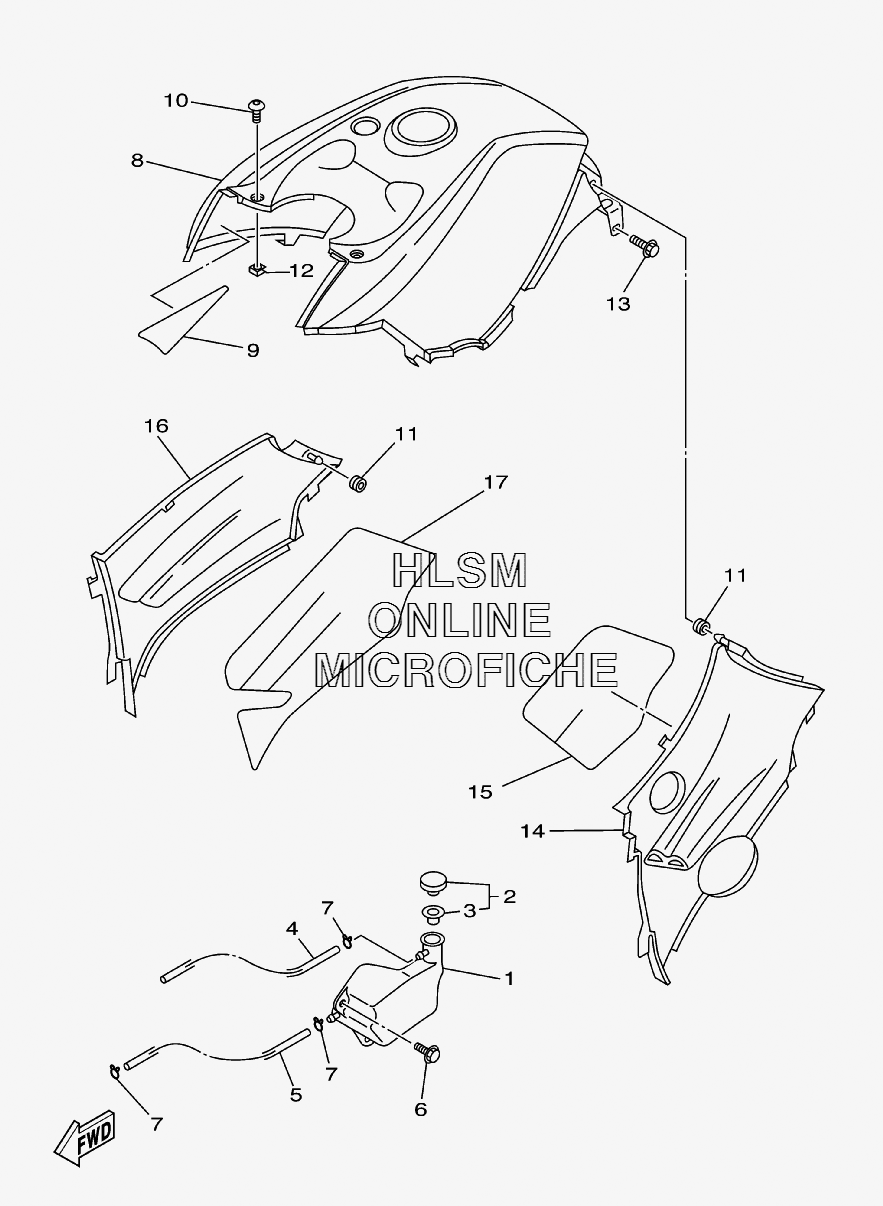

SIDE COVER для Yamaha GRIZZLY 450 4WD - 2008 года выпуска
-
№АртикулНазвание
-
15ND-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21AA-21815-00-00 CAPCAP
-
31AA-21874-00-00 ...GASKET...GASKET
-
490445-08811-00 HOSE (L1020)HOSE (L1020)
-
590445-08812-00 HOSE (L730)HOSE (L730)
-
690119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
85ND-F171A-00-00 COVER, TOP FOR RTRCOVER, TOP FOR RTR
-
85ND-F171A-50-00 COVER, TOP FOR DPBSNCOVER, TOP FOR DPBSN
-
85ND-F171A-10-00 COVER, TOP FOR PDGCOVER, TOP FOR PDG
-
95ND-F174M-00-00 CLOTH, PROTECTORCLOTH, PROTECTOR
-
1090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190480-13567-00 GROMMETGROMMET
-
1290183-051A0-00 NUT, SPRINGNUT, SPRING
-
1390119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
145ND-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
155ND-F174A-01-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
165ND-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
175ND-F174T-01-00 INSULATOR, SIDE COVER 2INSULATOR, SIDE COVER 2
