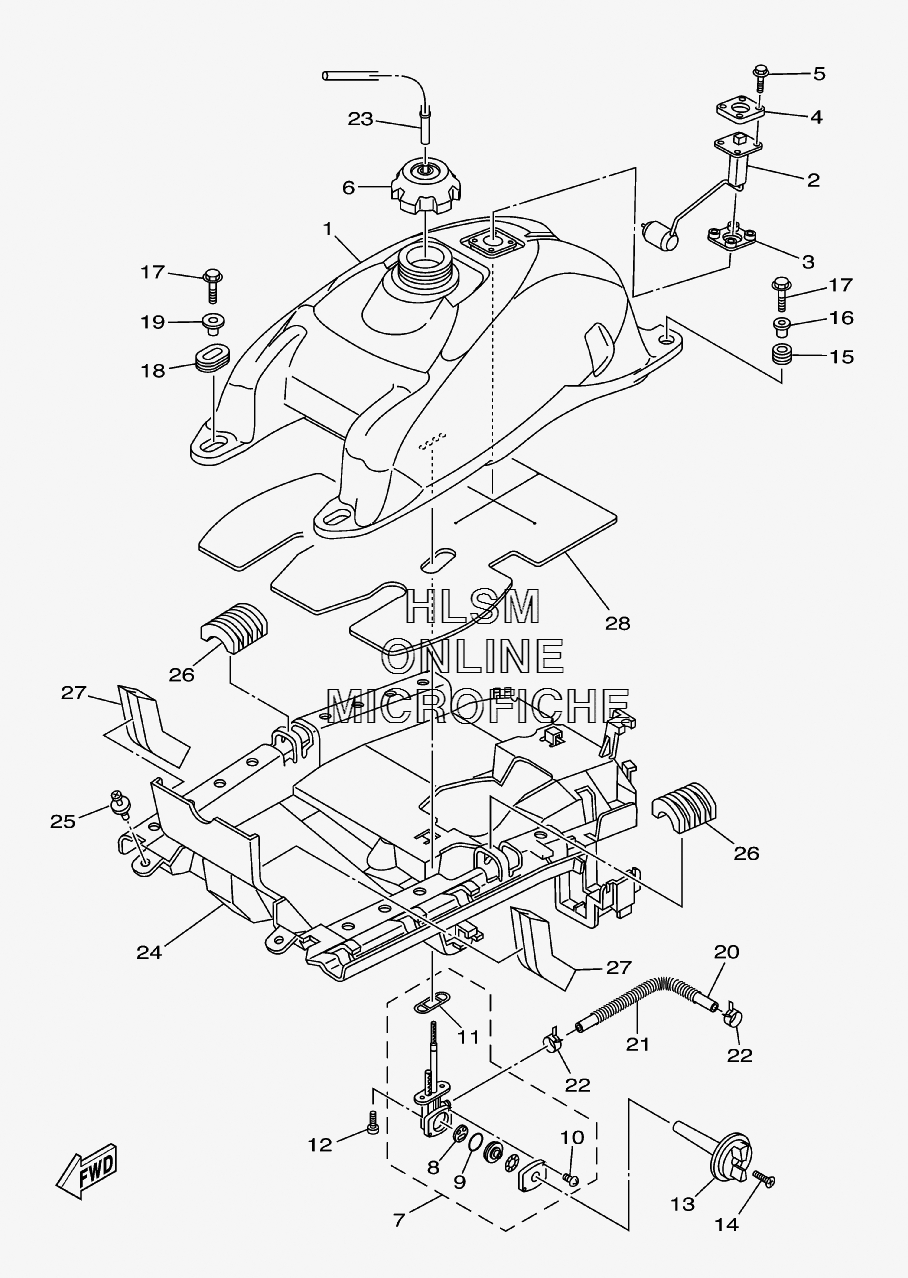

FUEL TANK для Yamaha GRIZZLY 660 HUNTER - 2008 года выпуска
-
№АртикулНазвание
-
15KM-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
34US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
42JG-85757-00-00 RETAINERRETAINER
-
590119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
65ND-24610-00-00 CAP ASSYCAP ASSY
-
75KM-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
83AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
93AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
1098507-03014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
114X8-24512-00-00 ...O-RING...O-RING
-
1290149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
135GH-24524-00-00 LEVER, COCKLEVER, COCK
-
1498707-04018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1590480-18290-00 GROMMETGROMMET
-
1690387-066J1-00 COLLARCOLLAR
-
1795807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1890480-01400-00 GROMMETGROMMET
-
1990387-075H4-00 COLLARCOLLAR
-
205KM-24311-20-00 PIPE, FUEL 1PIPE, FUEL 1
-
215KM-24327-02-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
2290467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
2390445-09023-00 HOSE (L430)HOSE (L430)
-
245KM-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2590269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
265KM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
275KM-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
285KM-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
