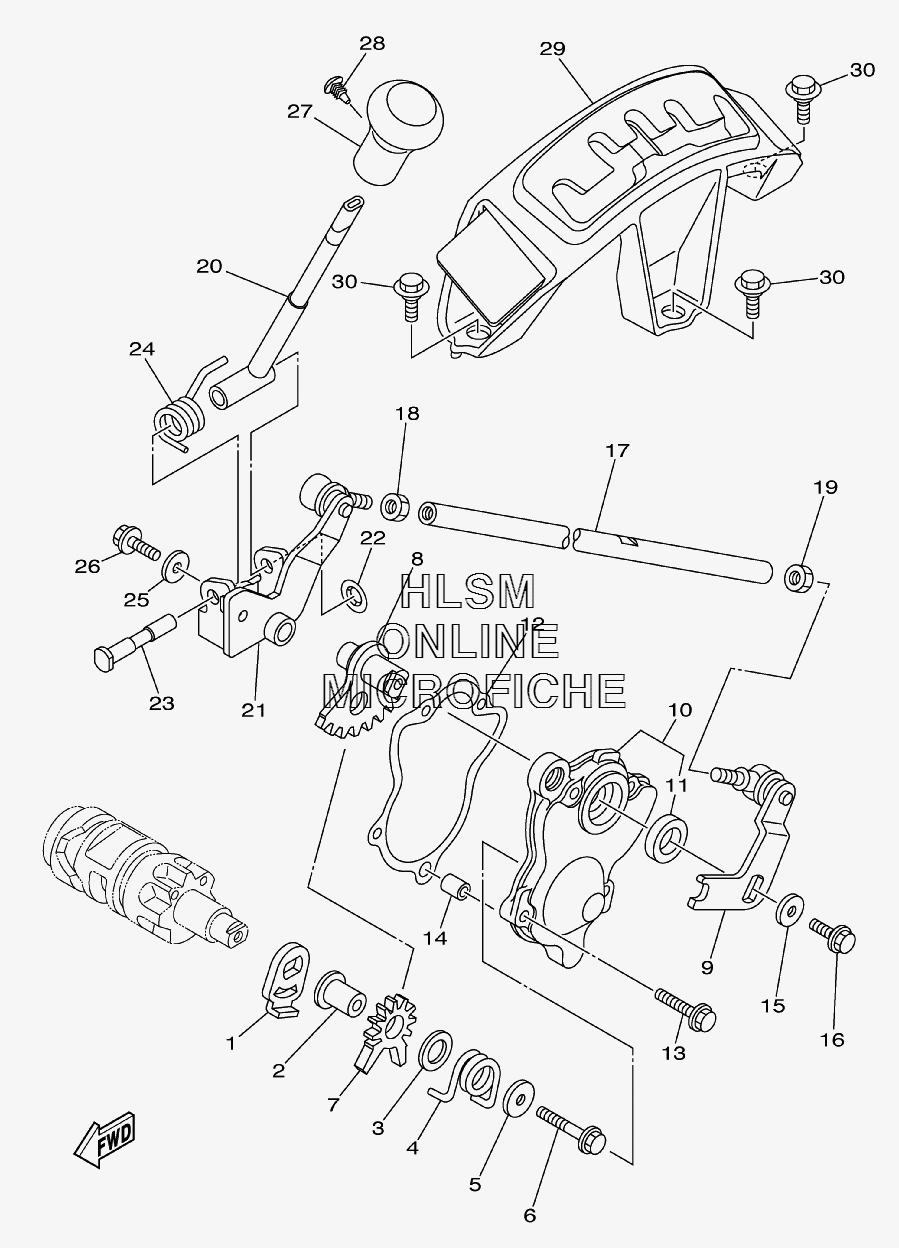

SHIFT SHAFT для Yamaha GRIZZLY 700 DUCKS UNLIMITED EDITION - 2008 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
83B4-18103-10-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
93B4-18104-20-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
103B4-18380-00-00 SHIFTER BRACKET ASSYSHIFTER BRACKET ASSY
-
1193102-15212-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
123B4-18146-00-00 GASKETGASKET
-
1395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1590201-06036-00 WASHER, PLATEWASHER, PLATE
-
1695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
173B4-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995302-08700-00 NUTNUT
-
203B4-18190-01-00 LEVER COMP. 1LEVER COMP. 1
-
213B4-18169-10-00 ARM, SHIFT 2ARM, SHIFT 2
-
2290183-080A1-00 NUT, SPRINGNUT, SPRING
-
233B4-18125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
243B4-18196-00-00 SPRING, RETURNSPRING, RETURN
-
2590201-06036-00 WASHER, PLATEWASHER, PLATE
-
2695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
273B4-18174-01-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2890269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
293B4-18160-00-00 SHIFT GUIDE ASSYSHIFT GUIDE ASSY
-
3090109-06172-00 BOLTBOLT
