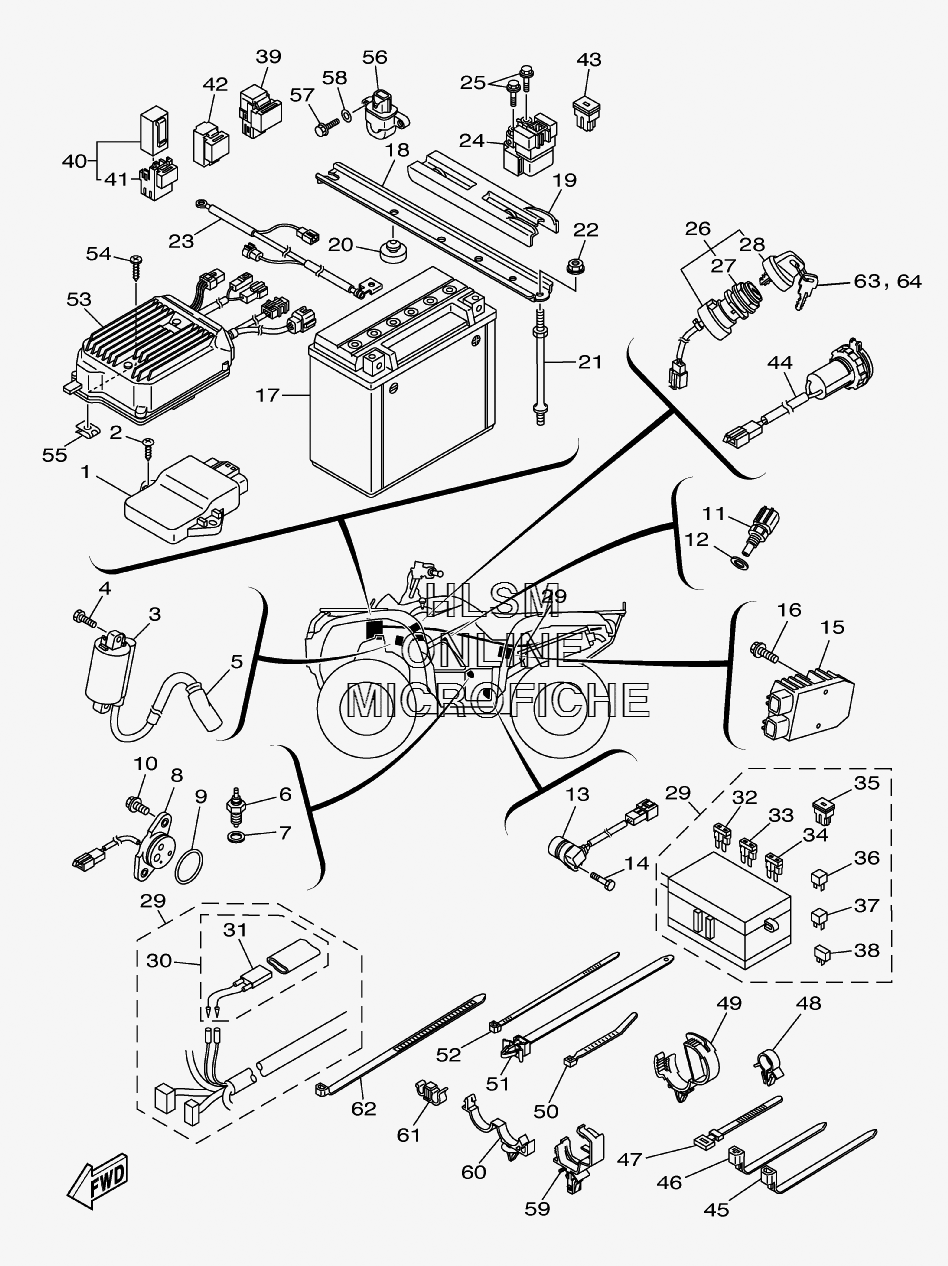

ELECTRICAL для Yamaha GRIZZLY 700 POWER STEERING - 2008 года выпуска
-
№АртикулНазвание
-
13B4-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
297702-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
31D7-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497002-06016-00 BOLTBOLT
-
55VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
63GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
790430-10148-00 GASKETGASKET
-
83B4-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
993210-29196-00 O-RINGO-RING
-
1090119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
118CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1290430-12202-00 GASKETGASKET
-
133B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1491312-06020-00 BOLTBOLT
-
151D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
17BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
183B4-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
193B4-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2022W-24741-00-00 PAD, SEATPAD, SEAT
-
213B4-82133-10-00 SCREW, FITTINGSCREW, FITTING
-
2295702-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
233B4-82116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
243B4-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
263B4-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
273HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
283HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
293B4-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
304GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
314GB-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
325JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
335JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
345JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
355PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
364WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
375TJ-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
385VG-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
395DM-81950-00-00 RELAY ASSYRELAY ASSY
-
405EA-81950-20-00 RELAY ASSYRELAY ASSY
-
415EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
4229U-81950-93-00 RELAY ASSYRELAY ASSY
-
435PS-82151-00-00 FUSE (40A)FUSE (40A)
-
443B4-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
4590464-15195-00 CLAMPCLAMP
-
4690464-13073-00 CLAMPCLAMP
-
47437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4890464-15157-00 CLAMPCLAMP
-
4990464-20181-00 CLAMPCLAMP
-
5090465-10098-00 BANDBAND
-
5190464-10112-00 CLAMPCLAMP
-
525Y9-12491-00-00 CLAMP 1CLAMP 1
-
533B4-859A0-10-00 POWER STEERING CONT. UNIT ASSYPOWER STEERING CONT. UNIT ASSY
-
5498902-06020-00 SCREW, BINDSCREW, BIND
-
5590183-06053-00 NUT, SPRINGNUT, SPRING
-
563B4-82576-00-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
5797002-05016-00 BOLTBOLT
-
5892902-05600-00 WASHER, PLATEWASHER, PLATE
-
5990464-20237-00 CLAMPCLAMP
-
6090464-20010-00 CLAMPCLAMP
-
6190464-09013-00 CLAMPCLAMP
-
6290464-12045-00 BAND,SWITCH CORDBAND,SWITCH CORD
-
6390890-56001-00 KEY BLANK (A-TYPE) (OPT)KEY BLANK (A-TYPE) (OPT)
-
6490890-56002-00 KEY BLANK (B-TYPE) (OPT)KEY BLANK (B-TYPE) (OPT)
