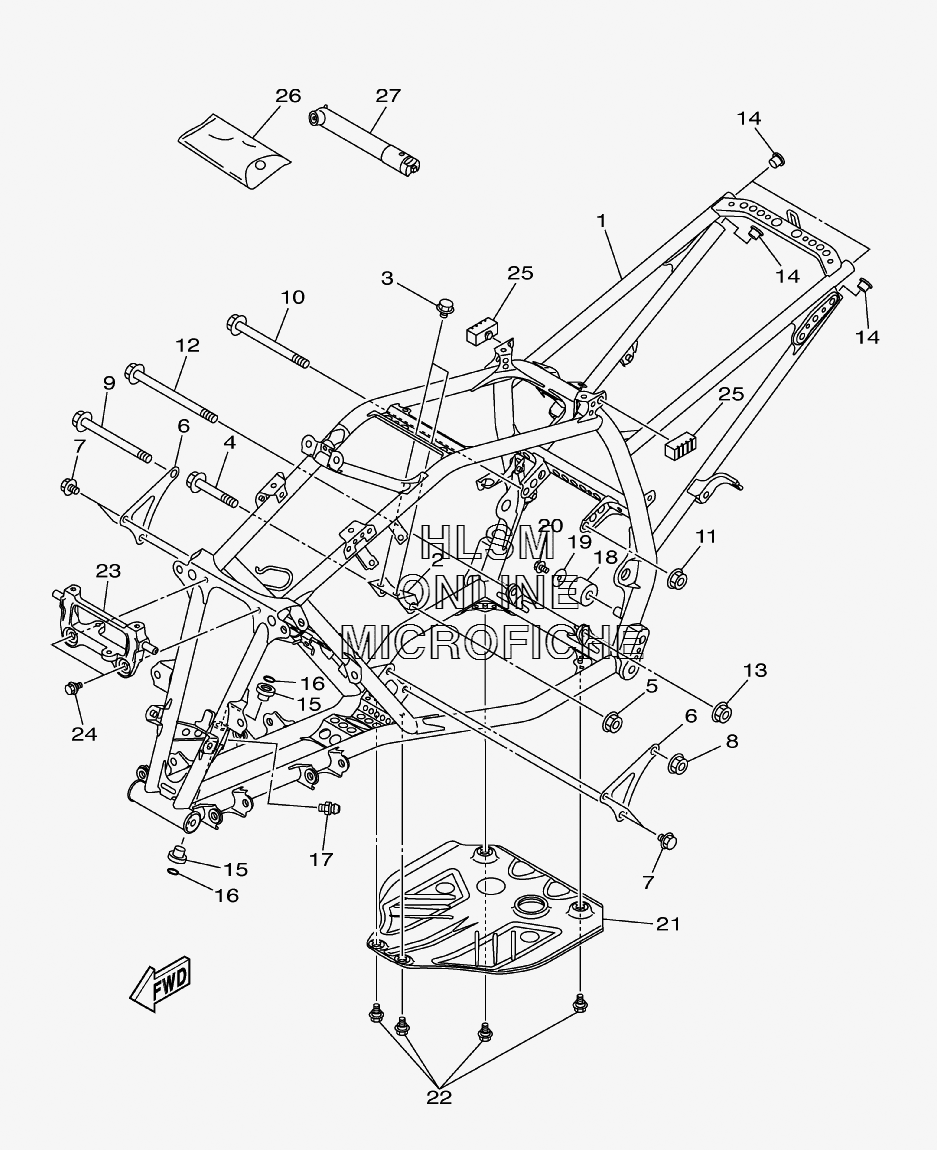

FRAME для Yamaha RAPTOR 250 SPECIAL EDITION - 2008 года выпуска
-
№АртикулНазвание
-
14D3-21110-00-P2 FRAME COMP. (ORANGE METALLIC)FRAME COMP. (ORANGE METALLIC)
-
24D3-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
395812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
490105-10221-00 BOLT, FLANGEBOLT, FLANGE
-
595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
64D3-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
795812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
890105-10220-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1090105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
1195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1290105-10214-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1490338-16148-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1590381-15040-00 BUSH, SOLIDBUSH, SOLID
-
1693210-15414-00 O-RINGO-RING
-
1793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
184D3-22178-00-00 TENSIONERTENSIONER
-
1990201-08054-00 WASHER, PLATEWASHER, PLATE
-
2095822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
214D3-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2290109-06172-00 BOLTBOLT
-
234D3-2137G-00-00 STAY 2STAY 2
-
2490109-06172-00 BOLTBOLT
-
253C3-24741-00-00 PAD, SEATPAD, SEAT
-
264D3-28100-00-00 TOOL KITTOOL KIT
-
271NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
