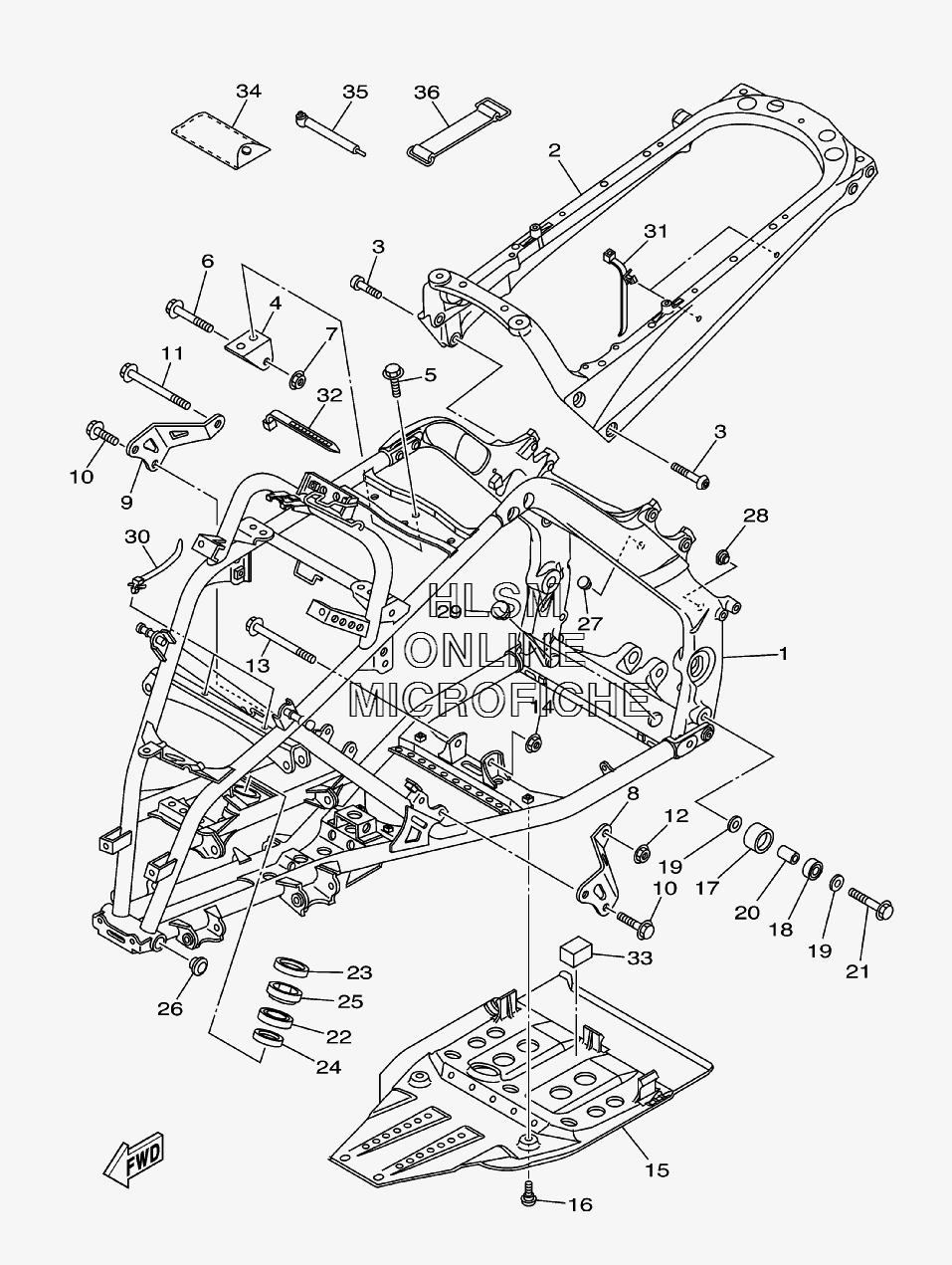

FRAME для Yamaha RAPTOR 700 SPECIAL EDITION - 2008 года выпуска
-
№АртикулНазвание
-
11S3-21101-08-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
21S3-21190-08-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10034-00 SCREWSCREW
-
41S3-21315-10-00 STAY, ENGINE 2STAY, ENGINE 2
-
595812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
695812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
81S3-21316-10-00 STAY, ENGINE 3STAY, ENGINE 3
-
91S3-21317-10-00 STAY, ENGINE 3STAY, ENGINE 3
-
1090105-08142-00 BOLT, FLANGEBOLT, FLANGE
-
1195812-10110-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1395812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
151S3-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
1690109-06198-00 BOLTBOLT
-
175TG-22178-00-00 TENSIONERTENSIONER
-
1893300-60804-00 BEARINGBEARING
-
1990201-08043-00 WASHER, PLATEWASHER, PLATE
-
2090387-08064-00 COLLARCOLLAR
-
2195812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2293306-20352-00 BEARINGBEARING
-
2393102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2493102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
255GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2690338-26004-00 PLUGPLUG
-
2790338-24260-00 PLUGPLUG
-
2890338-20183-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2990338-23004-00 PLUGPLUG
-
3090464-12036-00 CLAMPCLAMP
-
3190464-20213-00 CLAMPCLAMP
-
3290464-12045-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
331S3-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
345TG-28100-10-00 TOOL KITTOOL KIT
-
351NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
36116-82131-00-00 BAND, BATTERYBAND, BATTERY
