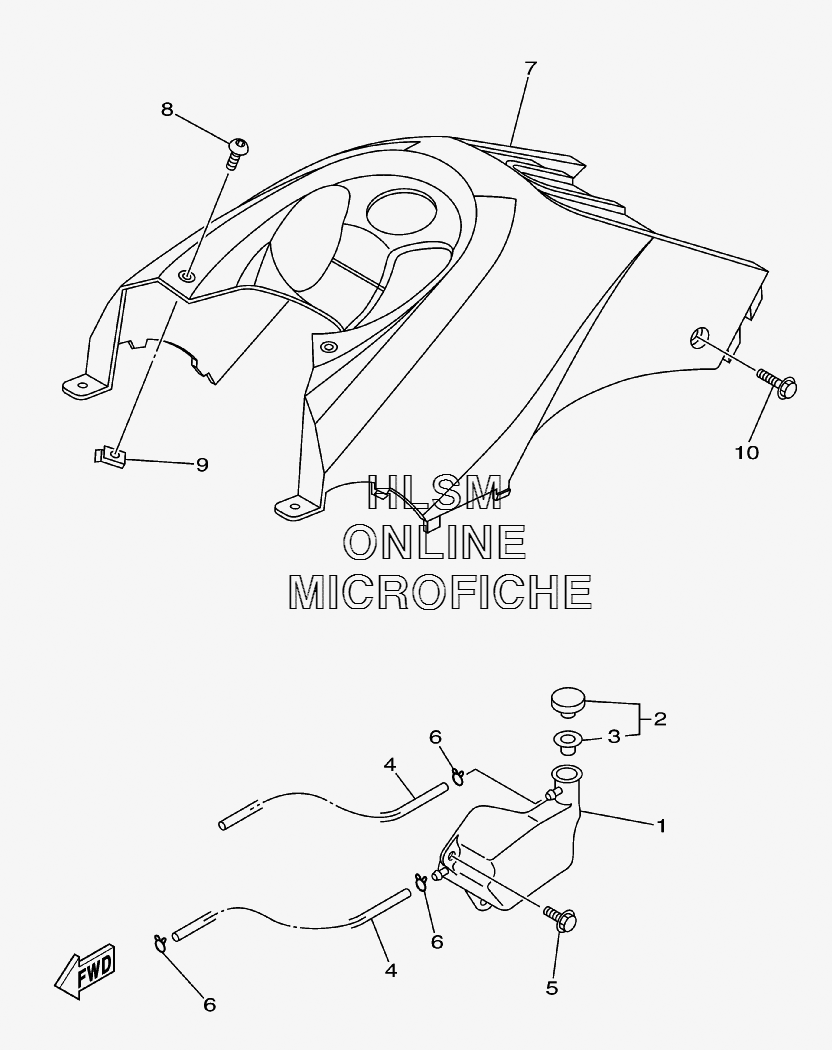

SIDE COVER для Yamaha WOLVERINE 450 4WD - 2008 года выпуска
-
№АртикулНазвание
-
15ND-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21AA-21815-00-00 CAPCAP
-
31AA-21874-00-00 ...GASKET...GASKET
-
490445-081K8-00 HOSE (L780)HOSE (L780)
-
590119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
73C2-F171A-30-00 COVER, TOP FOR DPBSECOVER, TOP FOR DPBSE
-
73C2-F171A-80-00 COVER, TOP FOR PGDCOVER, TOP FOR PGD
-
890110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990183-050A8-00 NUT, SPRINGNUT, SPRING
-
1090110-06007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- • SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
