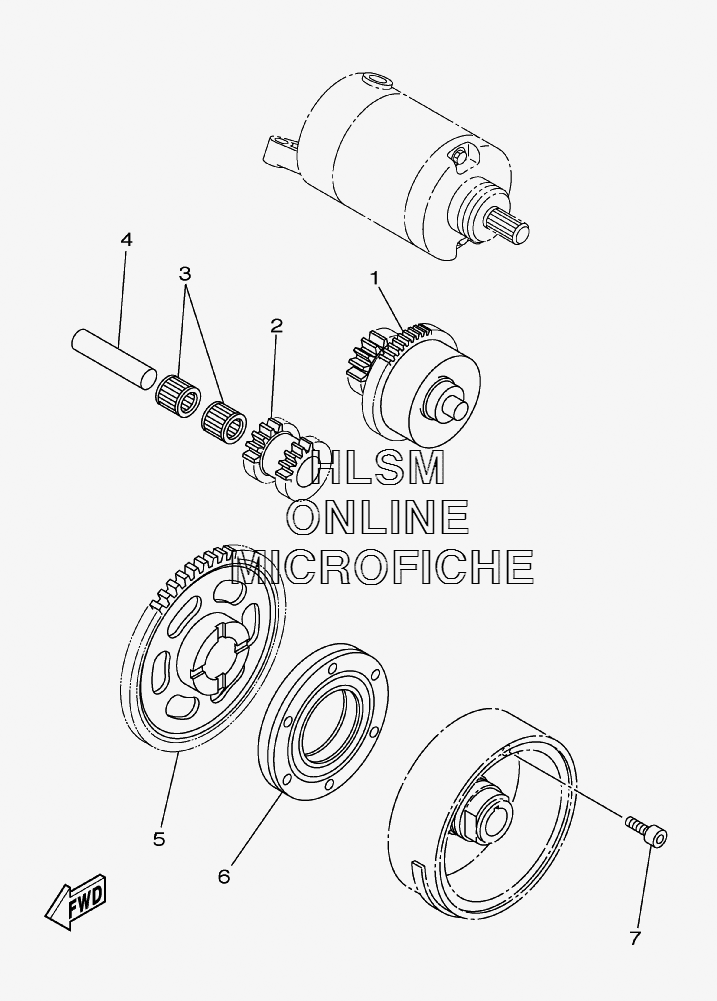

STARTER - RECOIL для Yamaha YFZ450 SPECIAL EDITION II - 2008 года выпуска
-
№АртикулНазвание
-
15TG-15560-00-00 DAMPER ASSYDAMPER ASSY
-
25TG-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
393310-212L6-00 BEARING, CYL.#10BEARING, CYL.#10
-
45H0-15521-00-00 SHAFT 1SHAFT 1
-
55TG-15515-01-00 GEAR 3GEAR 3
-
65TG-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
790110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
