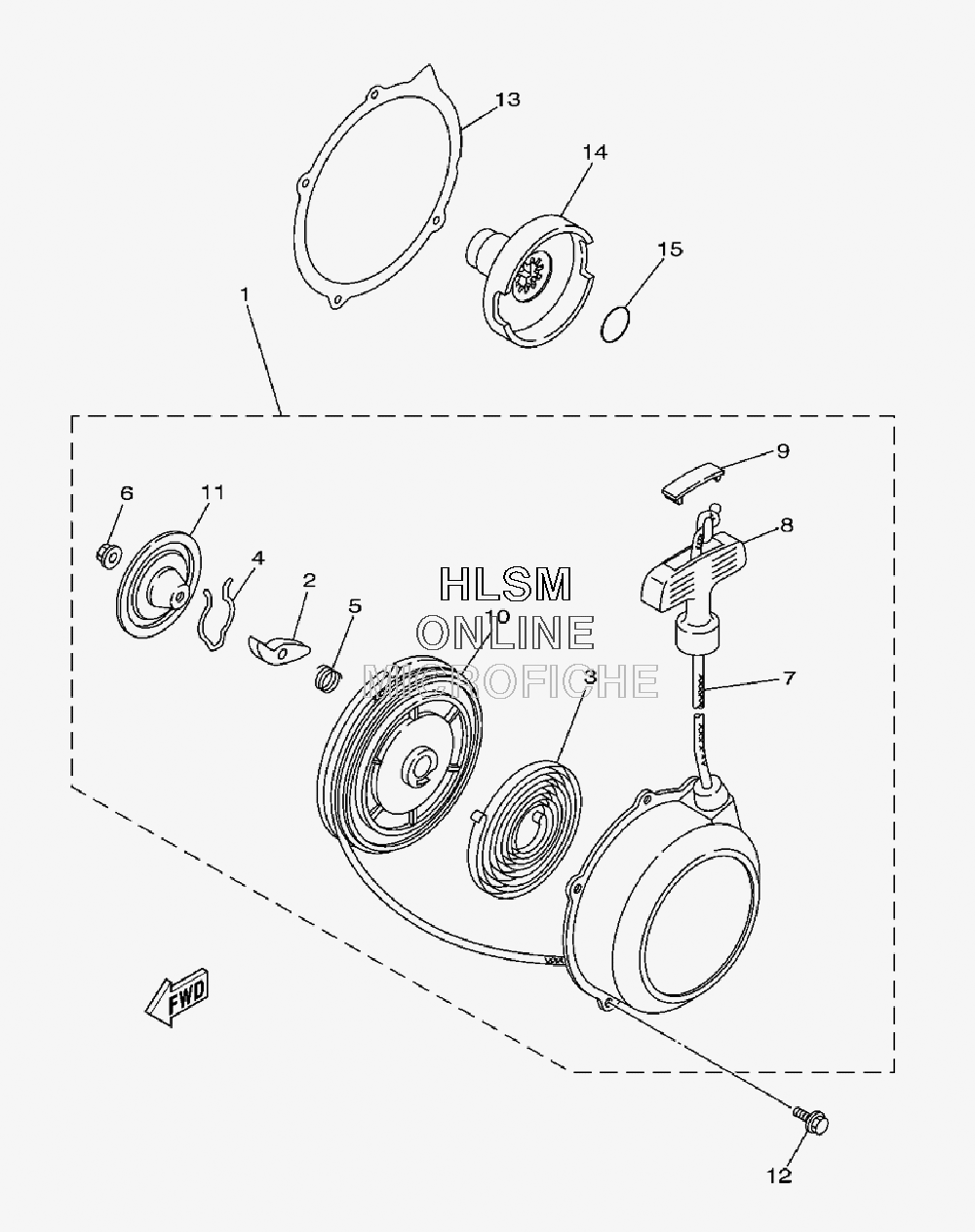

STARTER - RECOIL для Yamaha BIG BEAR 400 4X4 - 2009 года выпуска
-
№АртикулНазвание
-
11UY-15710-30-00 STARTER ASSYSTARTER ASSY
-
221V-15741-00-00 PAWL, DRIVEPAWL, DRIVE
-
321V-15713-00-00 SPRING, STARTERSPRING, STARTER
-
421V-15715-01-00 SPRING, FRICTIONSPRING, FRICTION
-
521V-15767-00-00 SPRINGSPRING
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
721V-15751-00-00 ROPE, STARTERROPE, STARTER
-
83X3-15755-00-00 HANDLE, STARTERHANDLE, STARTER
-
921V-15779-00-00 COVERCOVER
-
1024W-15714-00-00 DRUM, SHEAVEDRUM, SHEAVE
-
1121V-15716-01-00 PLATE, DRIVEPLATE, DRIVE
-
1295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
133GD-15699-00-00 GASKETGASKET
-
141UY-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
1593210-16290-00 O-RINGO-RING
