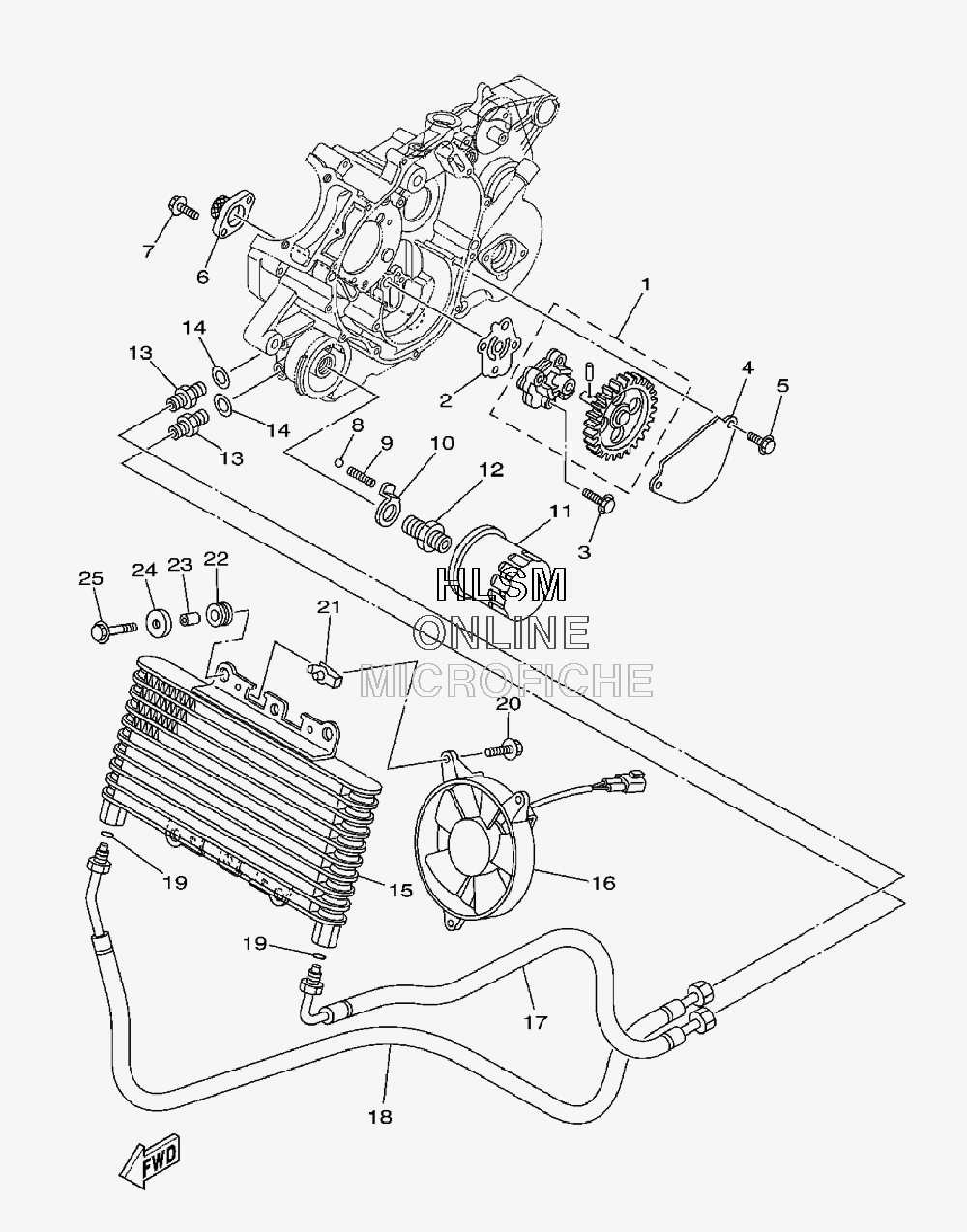

OIL PUMP для Yamaha GRIZZLY 350 4X4 HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
15UH-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25UH-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
45UH-13327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65UH-13411-00-00 STRAINER, OILSTRAINER, OIL
-
790105-05016-00 BOLT, FLANGEBOLT, FLANGE
-
893505-16006-00 BALL 5/16BALL 5/16
-
990501-101A7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
105UH-1319K-00-00 PLATEPLATE
-
115GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
1290401-20145-00 BOLT, UNIONBOLT, UNION
-
131S3-13132-00-00 JOINTJOINT
-
1490430-14043-00 GASKETGASKET
-
155UH-E3480-00-00 ELEMENT, OIL COOLERELEMENT, OIL COOLER
-
165UH-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
175UH-E3464-01-00 HOSE, OIL 1HOSE, OIL 1
-
183D5-E3465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1993210-08561-00 O-RINGO-RING
-
205UH-E3573-00-00 BOLT 1BOLT 1
-
215UH-E3577-00-00 CLIPCLIP
-
2290480-15235-00 GROMMETGROMMET
-
2390387-06113-00 COLLARCOLLAR
-
2490209-06012-00 WASHERWASHER
-
2595802-06020-00 BOLT, FLANGEBOLT, FLANGE
