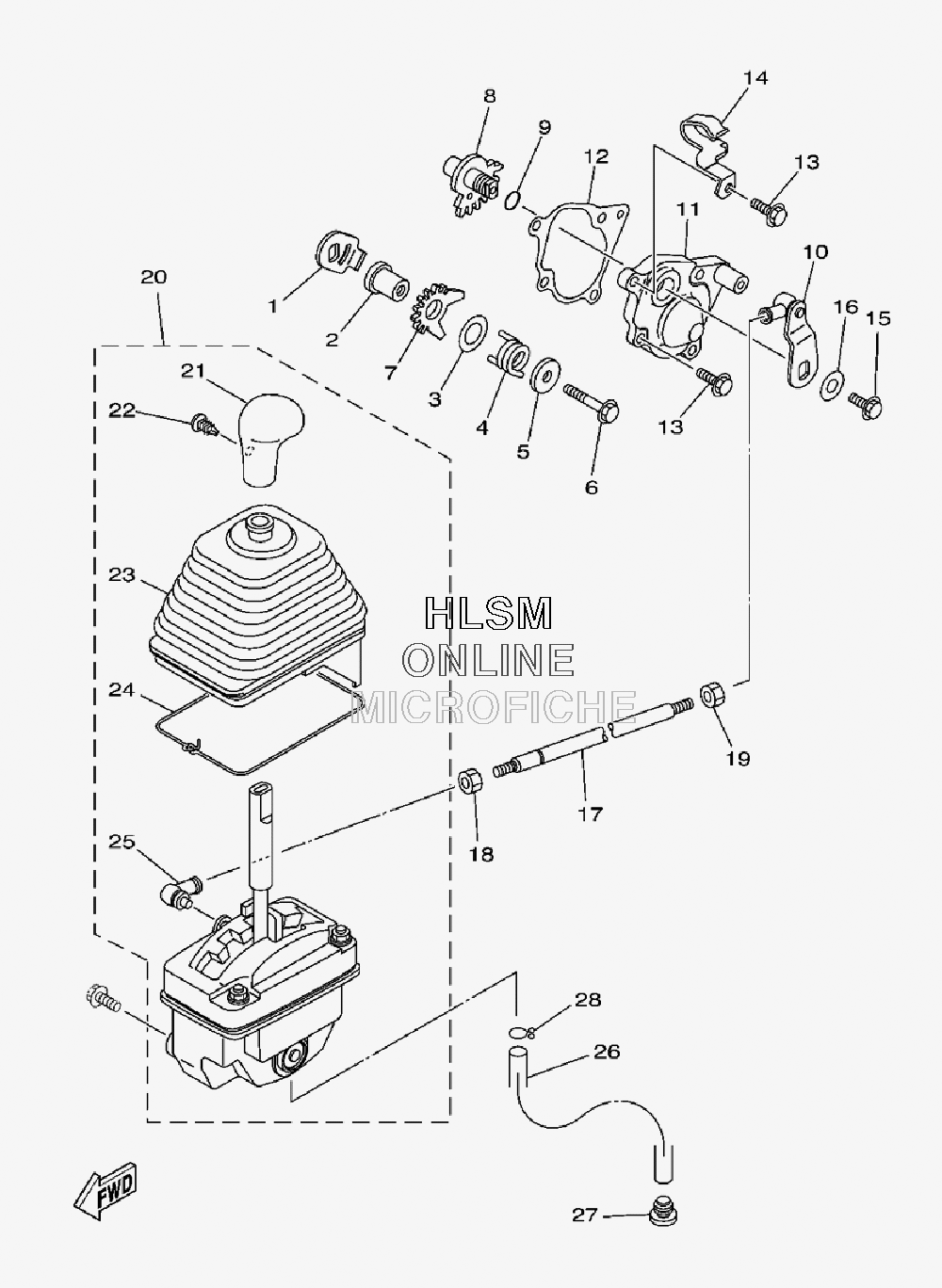

SHIFT SHAFT для Yamaha GRIZZLY 450 4X4 HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
105GH-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1397080-06020-00 BOLT, W/WASHERBOLT, W/WASHER
-
1490465-08336-00 CLAMPCLAMP
-
1590105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
175GH-18115-01-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995302-08700-00 NUTNUT
-
205GH-18300-02-00 SHIFTER ASSYSHIFTER ASSY
-
215GH-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2290269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
235GH-18131-00-00 BOOT, SEALINGBOOT, SEALING
-
245GH-18617-00-00 STOPPER,RUBBERSTOPPER,RUBBER
-
251KT-18157-00-00 JOINT 2JOINT 2
-
2690446-16001-00 HOSE (L90)HOSE (L90)
-
275ND-E4191-10-00 PLUG, DRAINPLUG, DRAIN
-
2890467-150A2-00 CLIPCLIP
