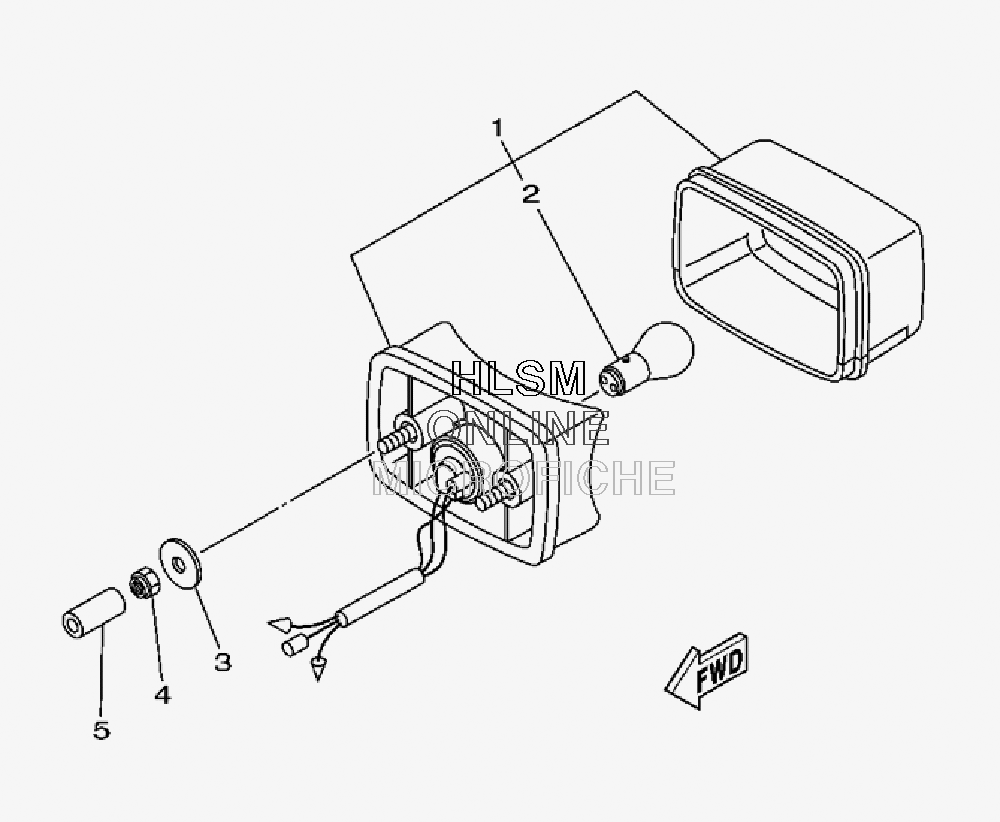

TAILLIGHT для Yamaha GRIZZLY 550 4X4 FI EPS HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
13FA-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 BULB (12V-21/5W)BULB (12V-21/5W)
-
390201-06097-00 WASHER, PLATEWASHER, PLATE
-
495702-06300-00 NUT, FLANGENUT, FLANGE
-
590445-09220-00 HOSE (L30)HOSE (L30)
