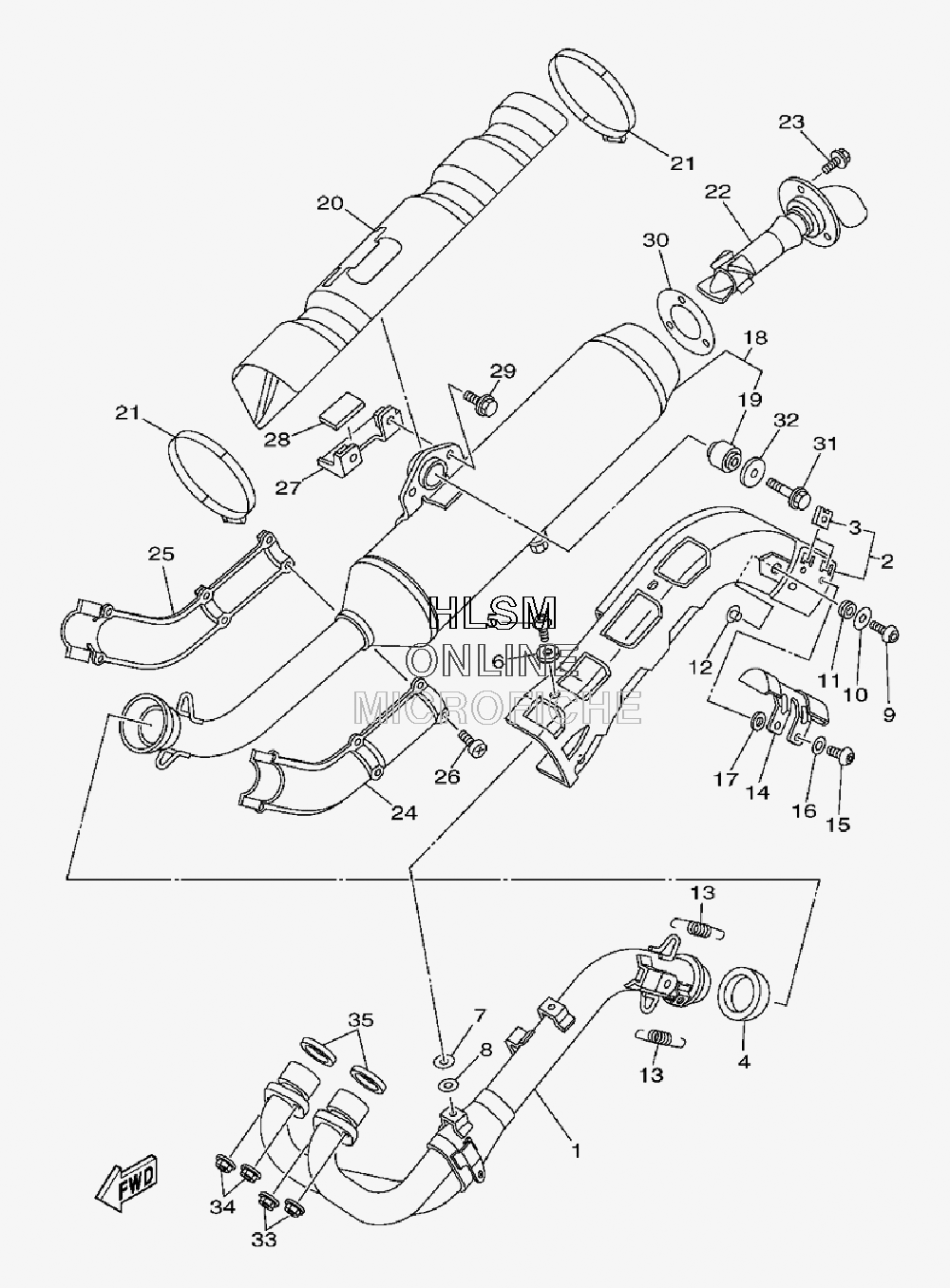

EXHAUST для Yamaha GRIZZLY 550 4X4 FI EPS - 2009 года выпуска
-
№АртикулНазвание
-
13B4-14611-10-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
23B4-14627-10-00 COVER, EXHAUSTCOVER, EXHAUST
-
390183-060A2-00 NUT, SPRINGNUT, SPRING
-
43B4-14714-20-00 GASKET, MUFFLERGASKET, MUFFLER
-
592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690201-06076-00 WASHER, PLATEWASHER, PLATE
-
790201-06019-00 WASHER, PLATEWASHER, PLATE
-
890201-05019-00 WASHER, PLATEWASHER, PLATE
-
992012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090201-06081-00 WASHER, PLATEWASHER, PLATE
-
1190480-17001-00 GROMMETGROMMET
-
1290387-08083-00 COLLARCOLLAR
-
1390506-30006-00 SPRING, TENSIONSPRING, TENSION
-
143B4-14758-01-00 PROTECTOR, SILENCERPROTECTOR, SILENCER
-
1592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1692902-06200-00 WASHERWASHER
-
1790201-05015-00 WASHER, PLATEWASHER, PLATE
-
183B4-W1471-10-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
195KM-27414-01-00 DAMPERDAMPER
-
203B4-14718-10-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2190450-99010-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
223B4-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
2395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-1471C-00-00 PROTECTOR ASSY 1PROTECTOR ASSY 1
-
253B4-1472C-00-00 PROTECTOR ASSY, 2PROTECTOR ASSY, 2
-
2698502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
273B4-1477U-00-00 STOPPER 1STOPPER 1
-
283B4-14733-00-00 MAT 1MAT 1
-
2995822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
303B4-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
3195812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
323B4-14759-00-00 WASHERWASHER
-
3390179-08029-00 NUTNUT
-
3495702-08500-00 NUT, WITH WASHERNUT, WITH WASHER
-
353YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
