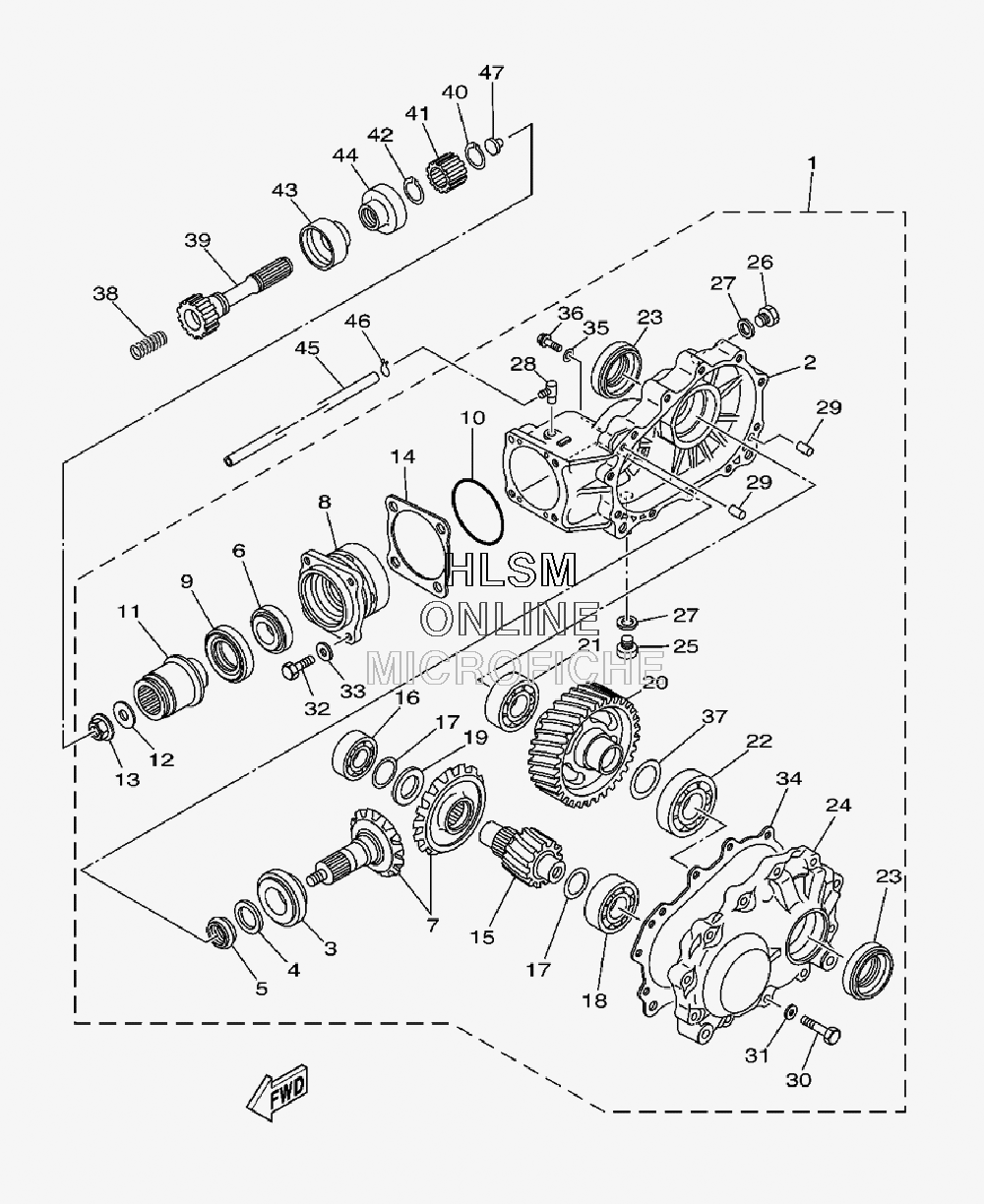

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 550 4X4 FI HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
13B4-46101-10-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
23B4-46151-00-00 HOUSING, DRIVE SHAFTHOUSING, DRIVE SHAFT
-
393332-00046-00 BEARINGBEARING
-
490201-25634-00 WASHER, PLATEWASHER, PLATE
-
53B4-46129-00-00 SPACER, EXPANSIONSPACER, EXPANSION
-
693332-00053-00 BEARINGBEARING
-
73B4-461A0-00-00 RING GEAR SETRING GEAR SET
-
83B4-46144-00-00 HOUSING, PINION BEARINGHOUSING, PINION BEARING
-
993102-35009-00 OIL SEALOIL SEAL
-
1093210-626A7-00 O-RINGO-RING
-
113B4-46126-10-00 COUPLINGCOUPLING
-
1290201-12029-00 WASHER, PLATEWASHER, PLATE
-
1390179-12005-00 NUTNUT
-
142HR-46127-00-21 SHIM, DRIVE PISTON (0.25T)SHIM, DRIVE PISTON (0.25T)
-
142HR-46127-00-30 SHIM, DRIVE PISTON (0.30T)SHIM, DRIVE PISTON (0.30T)
-
142HR-46127-00-35 SHIM, DRIVE PISTON (0.35T)SHIM, DRIVE PISTON (0.35T)
-
142HR-46127-00-40 SHIM, DRIVE PISTON (0.40T)SHIM, DRIVE PISTON (0.40T)
-
142HR-46127-00-45 SHIM, DRIVE PISTON (0.45T)SHIM, DRIVE PISTON (0.45T)
-
142HR-46127-00-50 SHIM, DRIVE PISTON (0.50T)SHIM, DRIVE PISTON (0.50T)
-
153B4-46316-00-00 GEAR, PINION 1GEAR, PINION 1
-
1693306-205U0-00 BEARINGBEARING
-
173B4-46119-00-00 SHIM, THRUST (0.25T)SHIM, THRUST (0.25T)
-
173B4-46119-10-00 SHIM, THRUST (0.30T)SHIM, THRUST (0.30T)
-
173B4-46119-20-00 SHIM, THRUST (0.35T)SHIM, THRUST (0.35T)
-
173B4-46119-30-00 SHIM, THRUST (0.40T)SHIM, THRUST (0.40T)
-
173B4-46119-40-00 SHIM, THRUST (0.45T)SHIM, THRUST (0.45T)
-
173B4-46119-50-00 SHIM, THRUST (0.50T)SHIM, THRUST (0.50T)
-
1893306-30523-00 BEARINGBEARING
-
193B4-4621F-00-00 SHIM, THRUST (4.5T)SHIM, THRUST (4.5T)
-
193B4-4621F-10-00 SHIM, THRUST (4.8T)SHIM, THRUST (4.8T)
-
193B4-4621F-20-00 SHIM, THRUST (5.1T)SHIM, THRUST (5.1T)
-
193B4-4621F-30-00 SHIM, THRUST (5.4T)SHIM, THRUST (5.4T)
-
203B4-46326-00-00 GEAR, WHEEL 1GEAR, WHEEL 1
-
2193306-00704-00 BEARINGBEARING
-
2293306-207U0-00 BEARINGBEARING
-
2393102-35009-00 OIL SEALOIL SEAL
-
243B4-46152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2590340-14002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2690340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
27214-11198-01-00 GASKETGASKET
-
285UG-15371-00-00 BREATHERBREATHER
-
2999530-10014-00 PIN, DOWELPIN, DOWEL
-
3097022-08035-00 BOLTBOLT
-
3192902-08600-00 WASHER, PLATEWASHER, PLATE
-
3297022-08025-00 BOLTBOLT
-
3392902-08600-00 WASHER, PLATEWASHER, PLATE
-
343B4-4631A-01-00 GASKET, CASEGASKET, CASE
-
3590201-08087-00 WASHER, PLATEWASHER, PLATE
-
3695022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
373B4-46344-00-00 SHIM (0.25T)SHIM (0.25T)
-
373B4-46344-10-00 SHIM (0.30T)SHIM (0.30T)
-
373B4-46344-20-00 SHIM (0.35T)SHIM (0.35T)
-
373B4-46344-30-00 SHIM (0.40T)SHIM (0.40T)
-
373B4-46344-40-00 SHIM (0.45T)SHIM (0.45T)
-
373B4-46344-50-00 SHIM (0.50T)SHIM (0.50T)
-
3890501-18002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
393B4-46172-10-00 SHAFT, DRIVESHAFT, DRIVE
-
4099009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
415KM-46126-00-00 COUPLINGCOUPLING
-
4293410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
435KM-46137-00-00 SEAL 2SEAL 2
-
445KM-46136-00-00 SEAL 1SEAL 1
-
4590445-074F6-00 HOSE (L1300)HOSE (L1300)
-
4690467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
475KM-46559-00-00 DAMPERDAMPER
