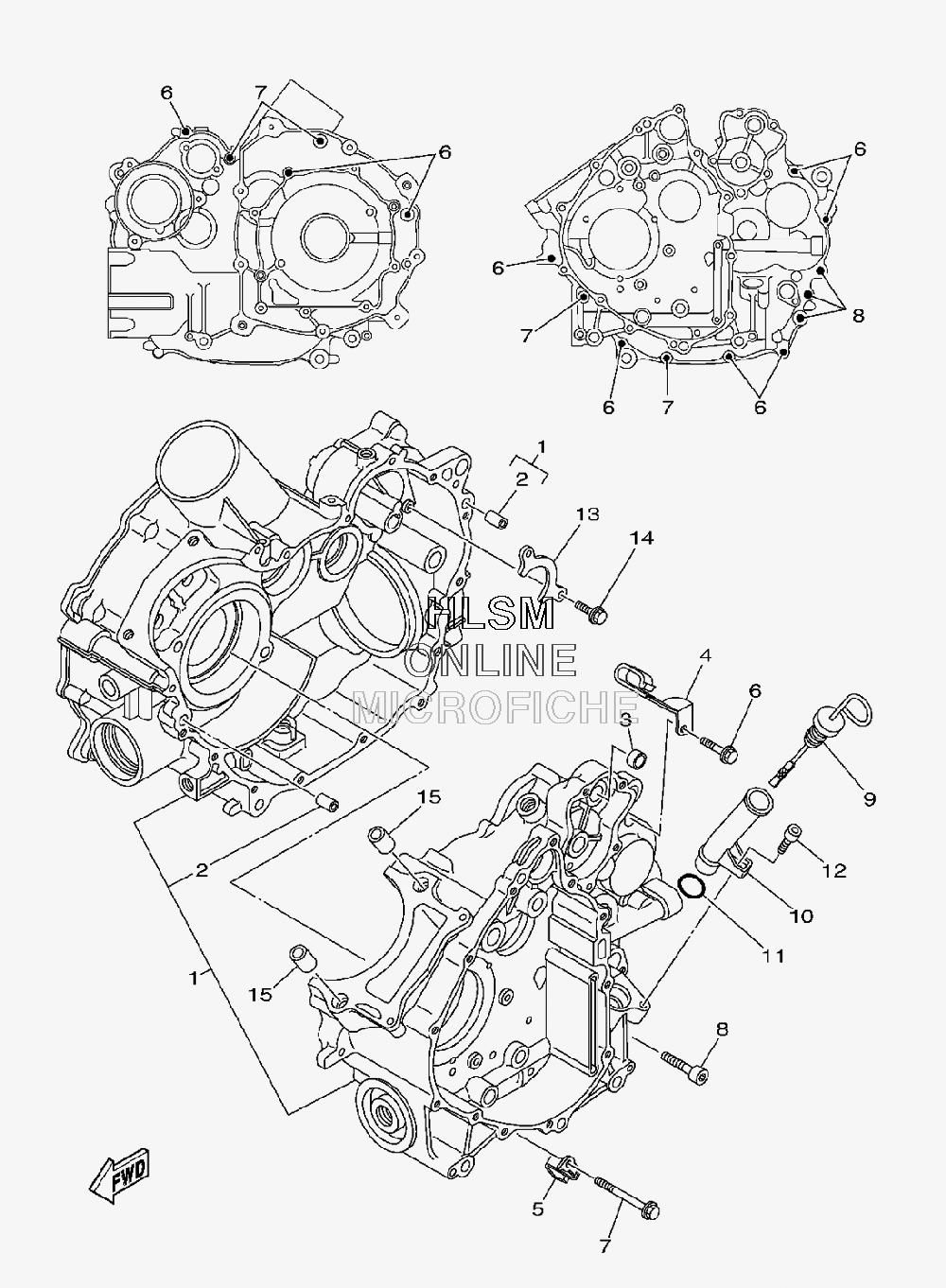

CRANKCASE для Yamaha GRIZZLY 700 4X4 FI EPS HUNTER - 2009 года выпуска
-
№АртикулНазвание
-
13B4-15100-24-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10116-00 PIN, DOWELPIN, DOWEL
-
33B4-18581-00-00 SPACER, CAM SHAFTSPACER, CAM SHAFT
-
490462-16003-00 CLAMPCLAMP
-
590462-08049-00 CLAMPCLAMP
-
695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
795022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
891312-08040-00 BOLTBOLT
-
93B4-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
103B4-15112-01-00 PIPE, OILPIPE, OIL
-
1193210-21631-00 O-RINGO-RING
-
1291312-06012-00 BOLT (4MY)BOLT (4MY)
-
133B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1599530-14016-00 PIN, DOWELPIN, DOWEL
