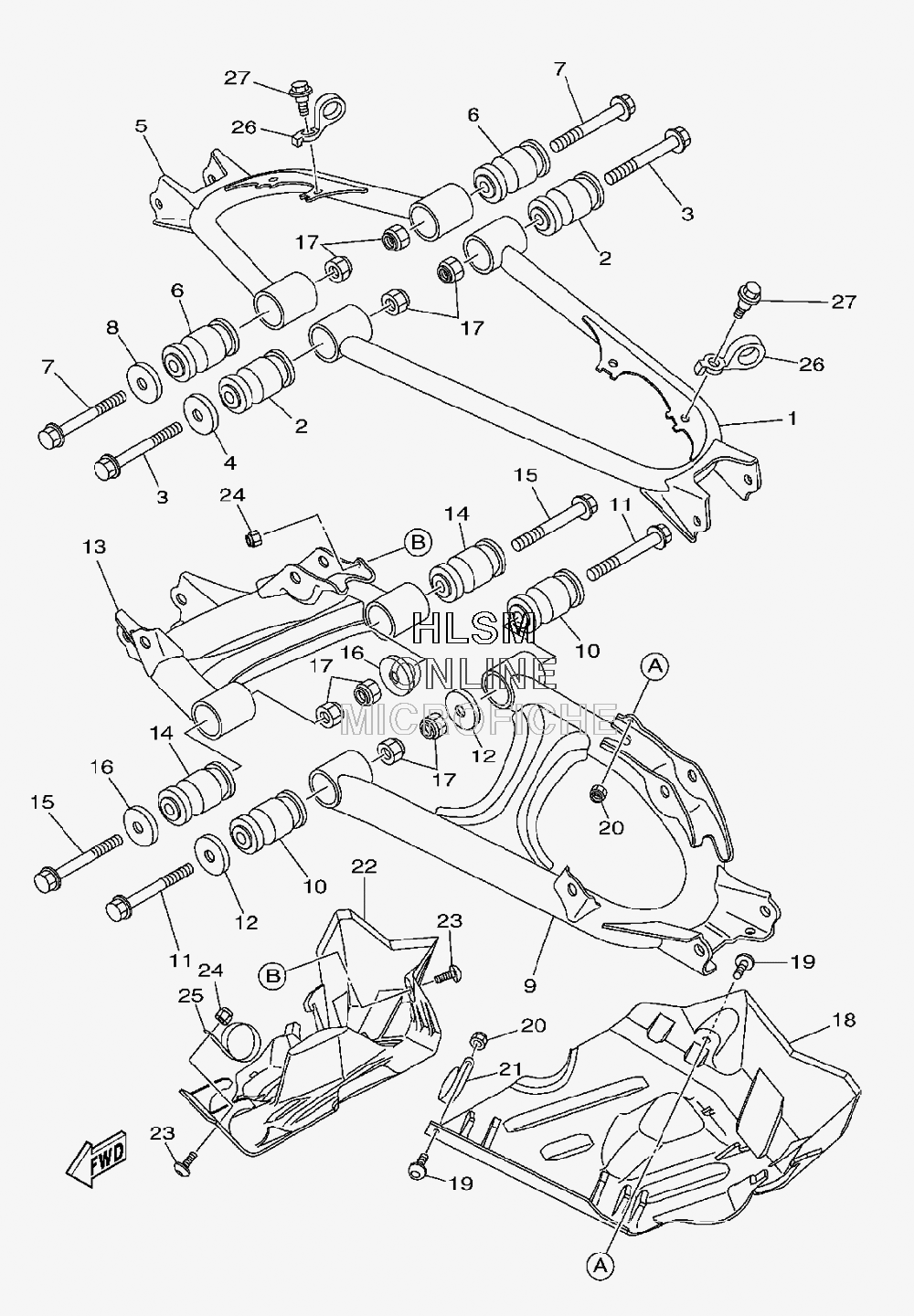

SUSPENSION - REAR ARM для Yamaha GRIZZLY 700 4X4 FI - 2009 года выпуска
-
№АртикулНазвание
-
13B4-22171-00-00 ARM, REAR 1ARM, REAR 1
-
25KM-23526-10-00 BUSHBUSH
-
390105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-10-00 WASHERWASHER
-
53B4-22172-00-00 ARM, REAR 2ARM, REAR 2
-
65KM-23526-10-00 BUSHBUSH
-
790105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-10-00 WASHERWASHER
-
93B4-2217M-00-00 ARM 1ARM 1
-
105KM-23526-10-00 BUSHBUSH
-
1190105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
125KM-22149-10-00 WASHERWASHER
-
133B4-2217N-00-00 ARM 2ARM 2
-
145KM-23526-10-00 BUSHBUSH
-
1590105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
165KM-22149-10-00 WASHERWASHER
-
1790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1828P-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1990110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2095702-06300-00 NUT,FLANGENUT,FLANGE
-
2134D-22465-00-00 HOLDERHOLDER
-
2228P-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
2390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2495702-06300-00 NUT,FLANGENUT,FLANGE
-
2534D-22465-00-00 HOLDERHOLDER
-
263B4-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2790109-06172-00 BOLTBOLT
