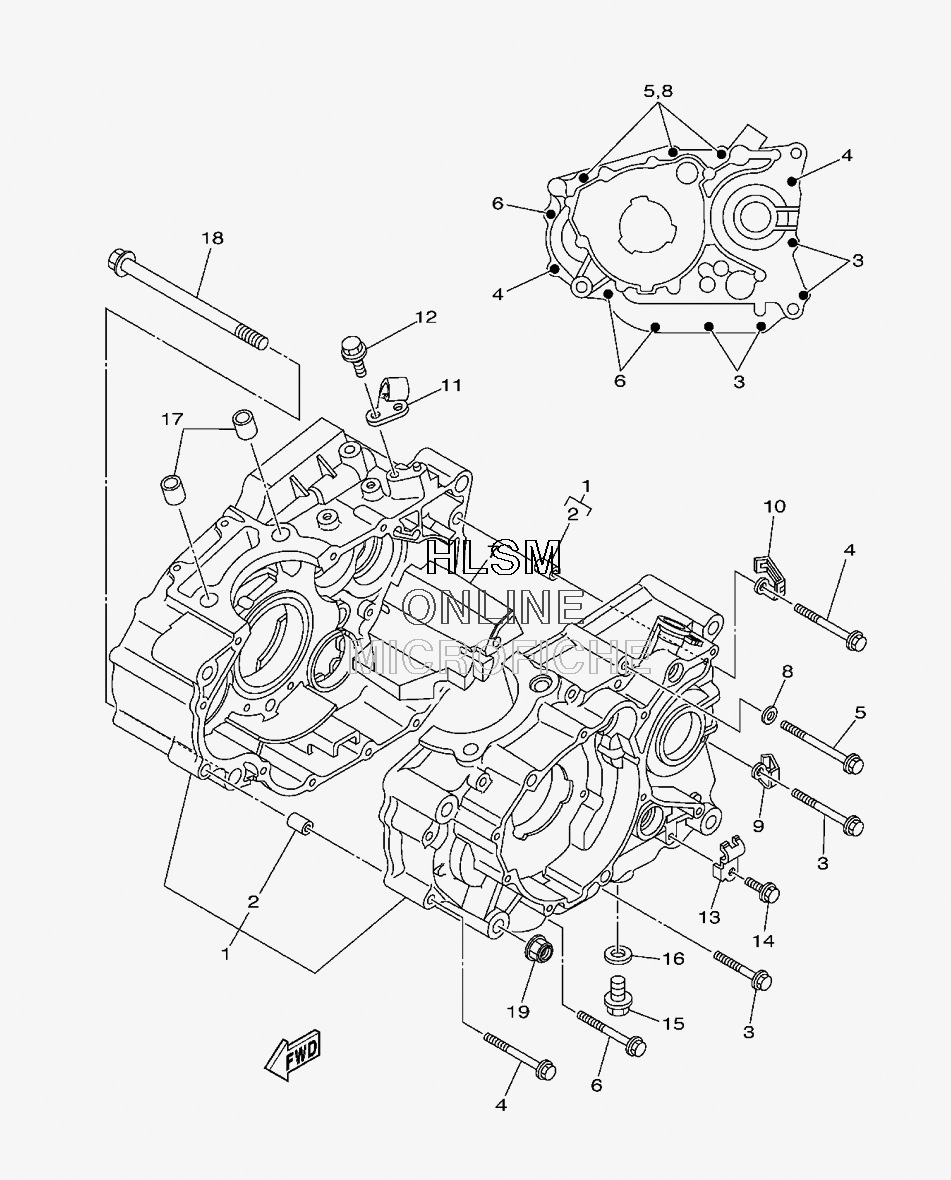

CRANKCASE для Yamaha RAPTOR 250 - 2009 года выпуска
-
№АртикулНазвание
-
15XT-15100-07-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 PIN, DOWELPIN, DOWEL
-
395022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
495022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06070-00 BOLT, FLANGEBOLT, FLANGE
-
695022-06055-00 BOLT, FLANGEBOLT, FLANGE
-
74D3-15327-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
890430-06014-00 GASKETGASKET
-
990462-08045-00 CLAMPCLAMP
-
1090461-08001-00 CLAMPCLAMP
-
114D3-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1295812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1390462-10215-00 CLAMPCLAMP
-
1495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1590340-12059-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1690430-12213-00 GASKETGASKET
-
1799530-14016-00 PIN, DOWELPIN, DOWEL
-
1895812-10170-00 BOLT, FLANGEBOLT, FLANGE
-
1995602-10200-00 NUT, U FLANGENUT, U FLANGE
