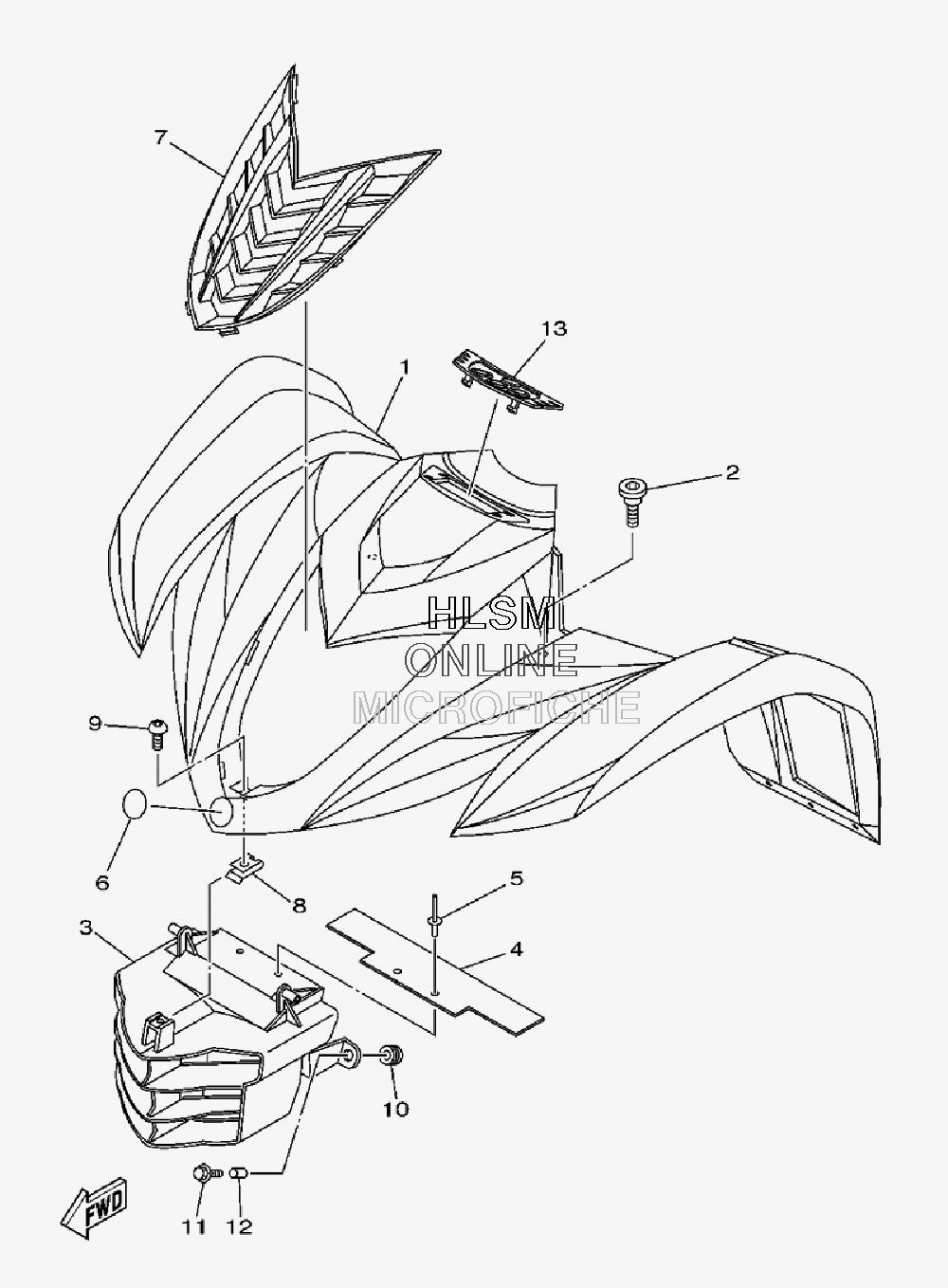

FENDER - FRONT для Yamaha WOLVERINE 350 2WD - 2009 года выпуска
-
№АртикулНазвание
-
13C2-F1500-90-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
290109-08076-00 BOLTBOLT
-
33C2-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
43D5-F4131-00-00 DEFLECTOR 1DEFLECTOR 1
-
590269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
-
63C2-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
73C2-F1556-A0-00 FENDER, FRONT 2FENDER, FRONT 2
-
890183-050A8-00 NUT, SPRINGNUT, SPRING
-
990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090480-15235-00 GROMMETGROMMET
-
1195802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-072Y2-00 COLLARCOLLAR
-
133D5-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
