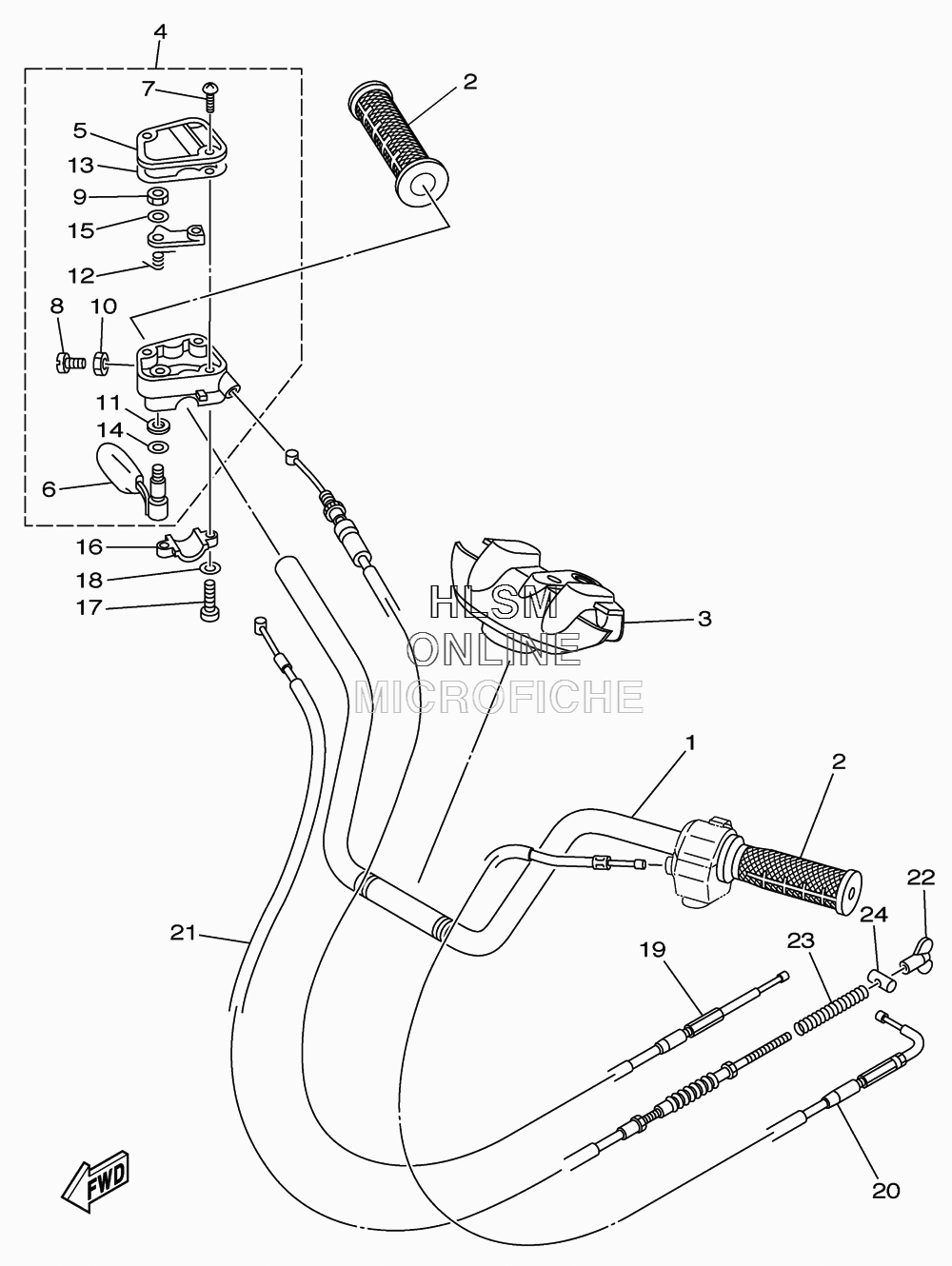

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 350 2WD - 2010 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLE BARHANDLE BAR
-
25FU-F6241-10-00 GRIPGRIP
-
35ND-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
44KB-26250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54KB-2628F-10-00 CAP, GEARCAP, GEAR
-
61NV-2625G-01-00 LEVER, THROTTLELEVER, THROTTLE
-
790149-04278-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
995607-05100-00 NUT, UNUT, U
-
1095307-05700-00 NUTNUT
-
1193104-09025-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
121NV-26304-00-00 SPRINGSPRING
-
134KB-2628G-00-00 GASKETGASKET
-
141NV-26129-00-00 WASHERWASHER
-
151NV-26398-00-00 WASHER, SPECIALWASHER, SPECIAL
-
164V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
1798502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892902-05600-00 WASHER, PLATEWASHER, PLATE
-
195GH-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
205VH-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
215TE-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2220E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
2390501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2490249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
