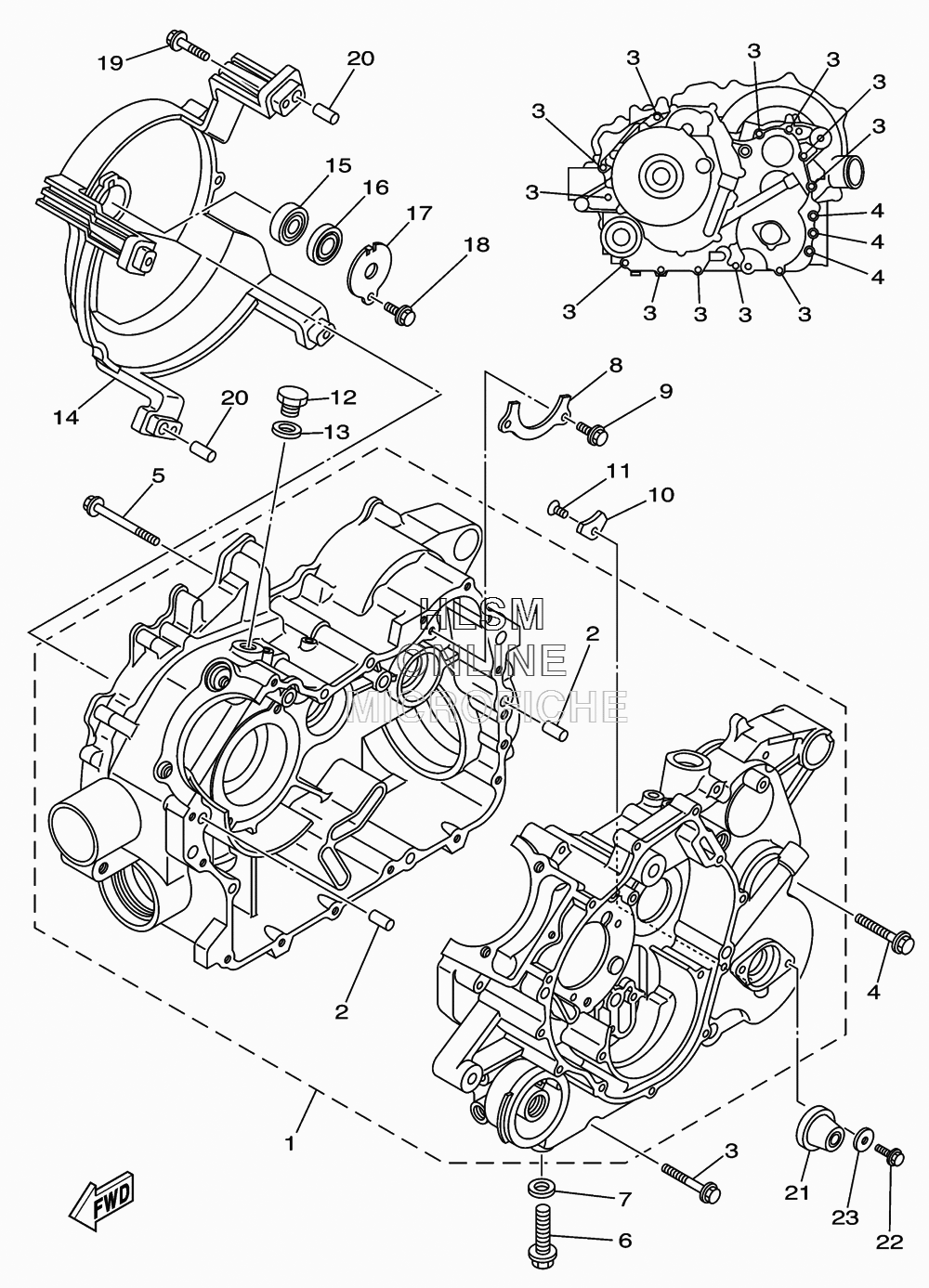

CRANKCASE для Yamaha GRIZZLY 350 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
15UH-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10116-00 PIN, DOWELPIN, DOWEL
-
395022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
495022-08045-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06070-00 BOLT, FLANGEBOLT, FLANGE
-
695022-12040-00 BOLT, FLANGEBOLT, FLANGE
-
790201-12172-00 WASHER, PLATEWASHER, PLATE
-
85GH-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
995822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
102K7-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1190151-06023-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1290340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
13214-11198-01-00 GASKETGASKET
-
145UH-15442-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1593306-20120-00 BEARINGBEARING
-
1693101-12168-00 OIL SEALOIL SEAL
-
174WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1995822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2099530-10116-00 PIN, DOWELPIN, DOWEL
-
215GH-15385-00-00 PLUG, BLINDPLUG, BLIND
-
2290105-06081-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-06095-00 WASHER, PLATEWASHER, PLATE
