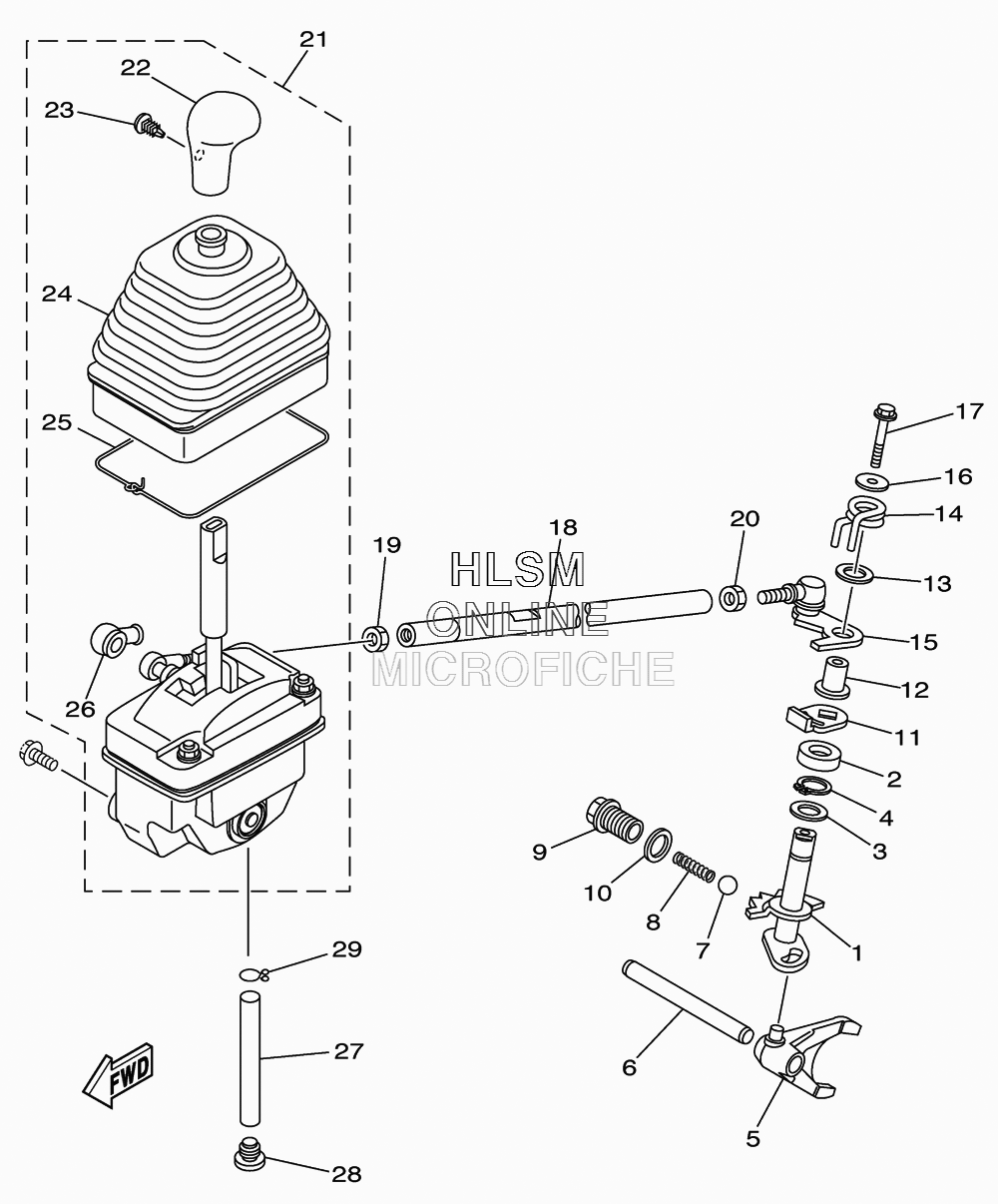

SHIFT SHAFT для Yamaha GRIZZLY 350 IRS 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
15UH-18103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
293102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
390201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
493440-15012-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
55UH-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
62A6-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
793503-08007-00 BALL 3/8BALL 3/8
-
890501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-14194-00 GASKETGASKET
-
114SH-18198-00-00 LEVERLEVER
-
1290387-0613B-00 COLLARCOLLAR
-
1390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
1490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
155UH-18191-00-00 LEVERLEVER
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
1795812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
185UH-18115-01-00 ROD, SHIFTROD, SHIFT
-
1990170-08358-00 NUTNUT
-
2095302-08700-00 NUTNUT
-
215UH-18300-01-00 SHIFTER ASSYSHIFTER ASSY
-
225TE-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2390269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
245GH-18131-00-00 BOOT, SEALINGBOOT, SEALING
-
255GH-18617-00-00 STOPPER,RUBBERSTOPPER,RUBBER
-
262H9-18154-00-00 COVER, DUSTCOVER, DUST
-
2790446-16001-00 HOSE (L90)HOSE (L90)
-
285ND-E4191-10-00 PLUG, DRAINPLUG, DRAIN
-
2990467-150A2-00 CLIPCLIP
