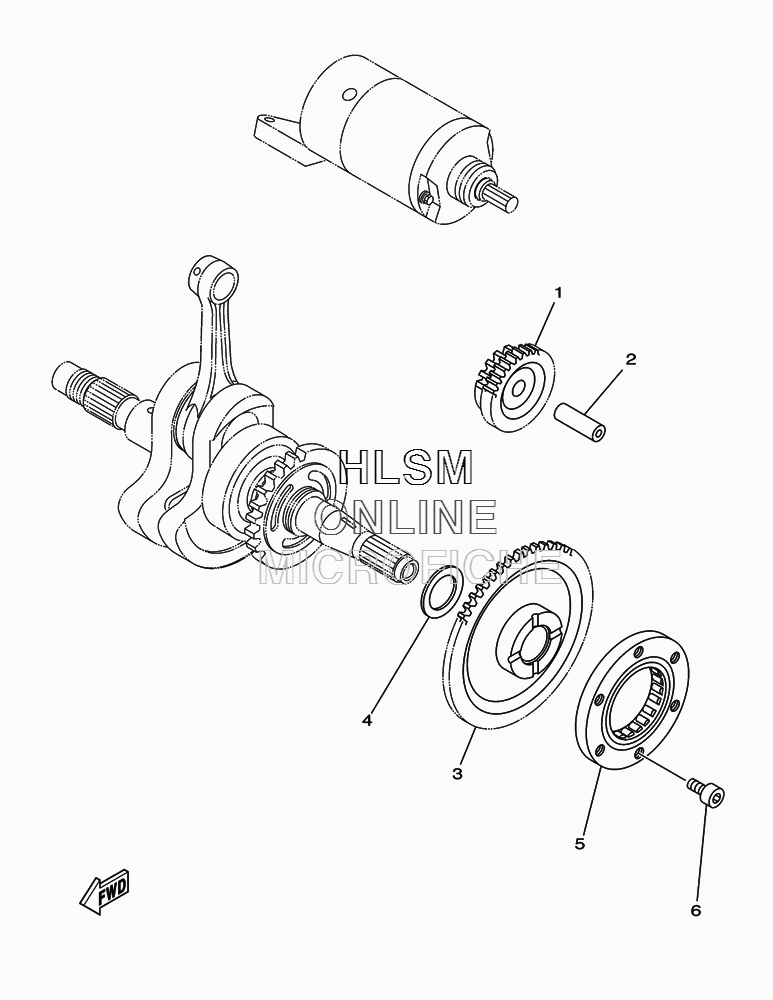

STARTER CLUTCH для Yamaha GRIZZLY 350 IRS 4WD - 2010 года выпуска
-
№АртикулНазвание
-
15UH-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
21VJ-15521-00-00 SHAFT 1SHAFT 1
-
35UH-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
490201-25290-00 WASHER, PLATEWASHER, PLATE
-
55KM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
691312-08016-00 BOLTBOLT
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR - SWITCHES/LEVERS
- HANDLEBAR W/ CABLES
- HEADLIGHT
- INSTRUMENT PANEL
- LABELS
- MIDDLE DRIVE GEAR
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT SHAFT
- SIDE COVER
- STAND - FOOTREST
- STARTER - RECOIL
- • STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
