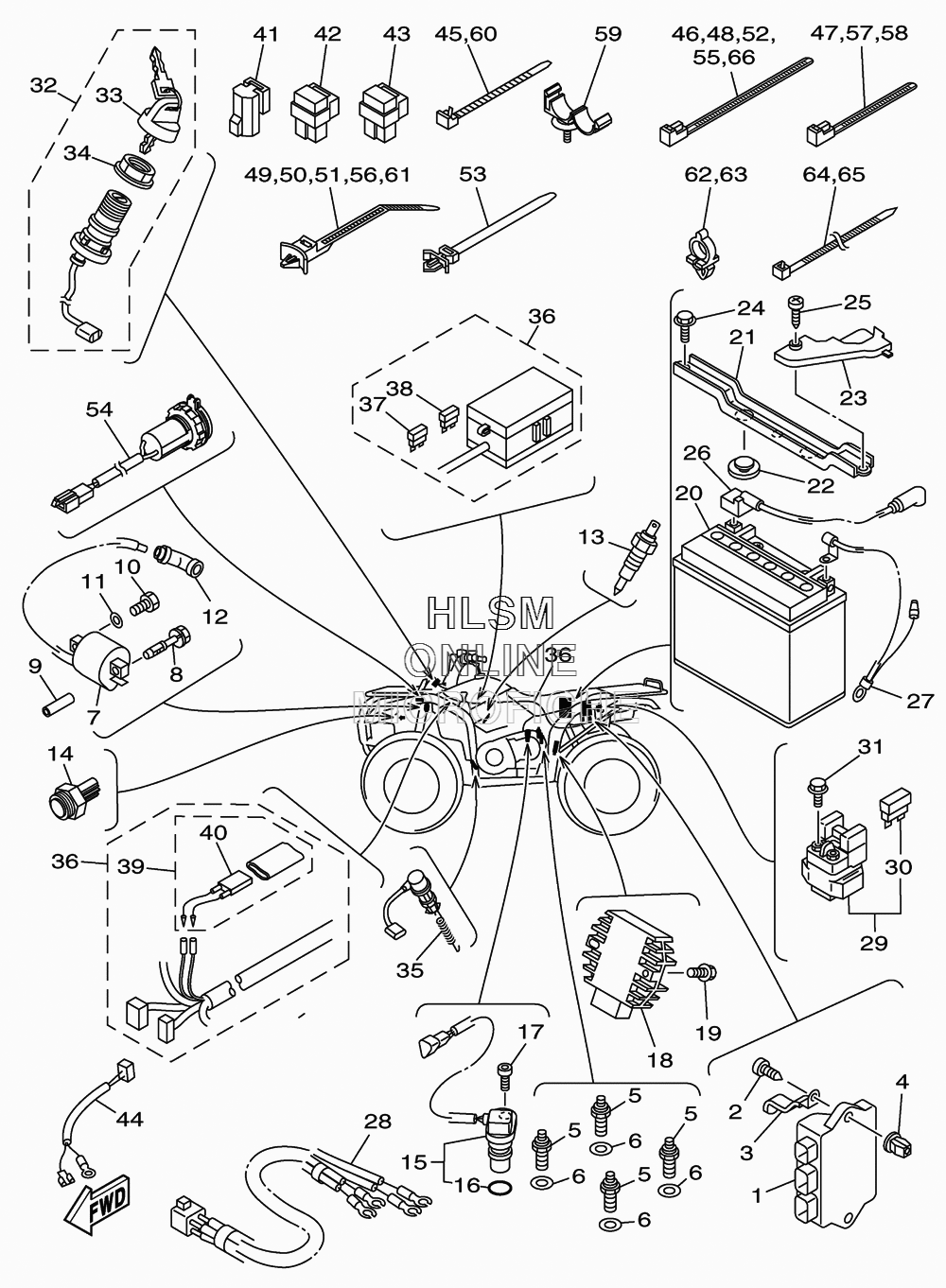

ELECTRICAL для Yamaha GRIZZLY 450 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
117S-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297702-60420-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
73KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06865-00 BOLTBOLT
-
95UH-H1318-00-00 SPACERSPACER
-
1097002-06020-00 BOLTBOLT
-
1192902-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
135KM-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
145ND-82560-10-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
155ND-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 O-RINGO-RING
-
1790110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1990105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
20BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
215ND-H2128-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
22371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
235ND-H2119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2495802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2597702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
265ND-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
275ND-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
285ND-82541-01-00 WIRE, LEADWIRE, LEAD
-
294SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
301AE-82151-00-00 FUSE (30A-BL)FUSE (30A-BL)
-
3195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
325ND-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
333HN-82579-00-00 CAP, KEYCAP, KEY
-
343HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
354KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
3637S-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
375JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
385JJ-82151-30-00 FUSE (10A-BL)FUSE (10A-BL)
-
395ND-82180-00-00 CIRCUIT BREAKER ASSYCIRCUIT BREAKER ASSY
-
405ND-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
4129U-81950-93-00 RELAY ASSYRELAY ASSY
-
425DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
435DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
445KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4590464-51800-00 CLAMPCLAMP
-
4690464-40825-00 CLAMPCLAMP
-
4790464-31827-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
4990464-25800-00 CLAMPCLAMP
-
5090464-25800-00 CLAMPCLAMP
-
5190464-25800-00 CLAMPCLAMP
-
5290464-40825-00 CLAMPCLAMP
-
5390464-38800-00 CLAMPCLAMP
-
543B4-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
5590464-40825-00 CLAMPCLAMP
-
5690464-25800-00 CLAMPCLAMP
-
5790464-31827-00 CLAMPCLAMP
-
5890464-31827-00 CLAMPCLAMP
-
5990464-12830-00 CLAMPCLAMP
-
6090464-51800-00 CLAMPCLAMP
-
6190464-25800-00 CLAMPCLAMP
-
6290464-10833-00 CLAMPCLAMP
-
6390464-10833-00 CLAMPCLAMP
-
6490464-48800-00 CLAMPCLAMP
-
6590464-48800-00 CLAMPCLAMP
-
6690464-40825-00 CLAMPCLAMP
