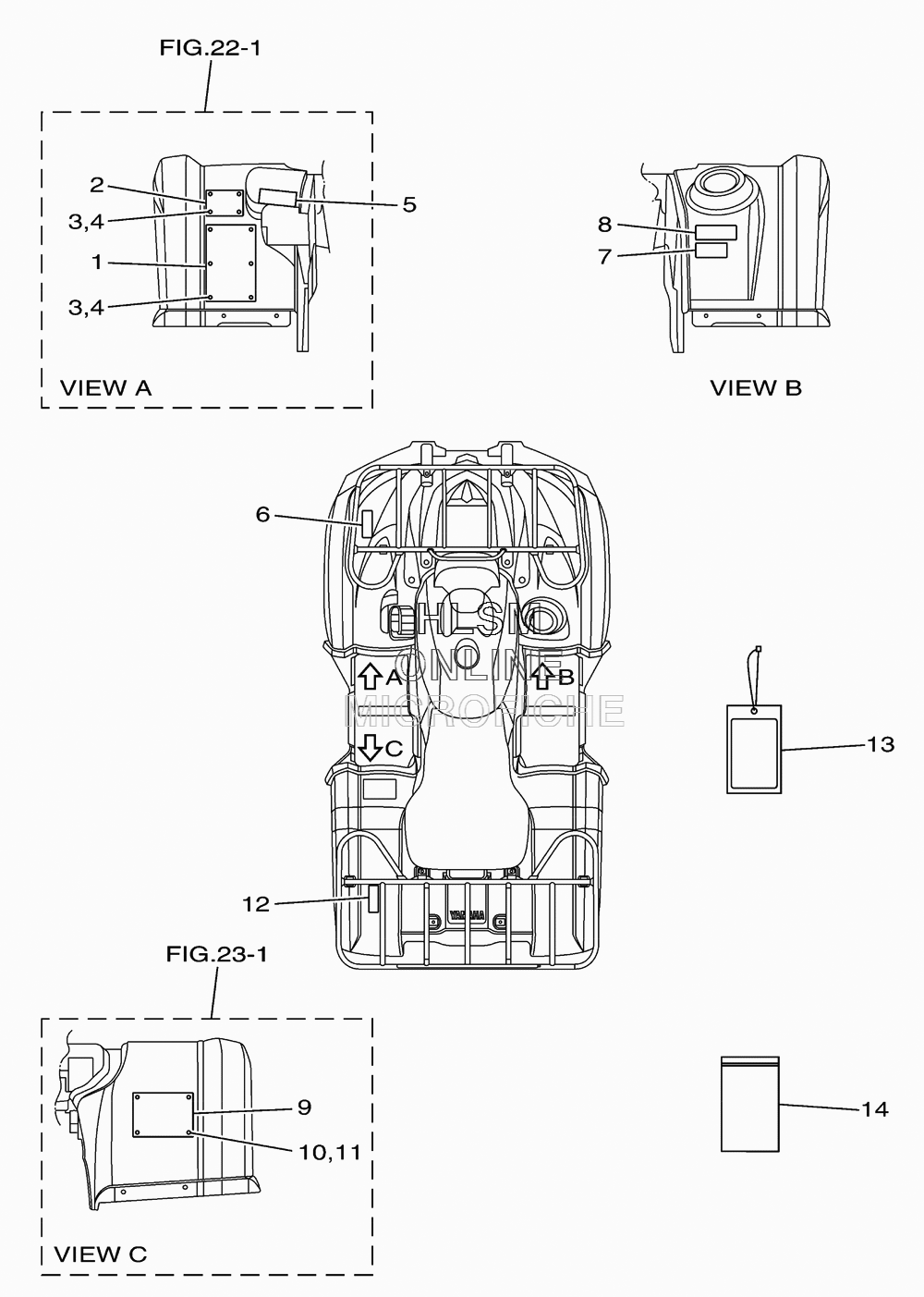

LABELS для Yamaha GRIZZLY 450 4WD - 2010 года выпуска
-
№АртикулНазвание
-
14XE-F1568-00-00 LABEL, WARNINGLABEL, WARNING
-
21P0-F816L-00-00 LABEL, WARNING AGELABEL, WARNING AGE
-
34XE-F1539-10-000 RIVETRIVET
-
44XE-F1549-00-000 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
517S-F151E-00-00 LABEL 2LABEL 2
-
65ND-F4877-30-00 LABEL, CAUTIONLABEL, CAUTION
-
75ND-F1558-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
837S-F151F-00-00 LABEL 3LABEL 3
-
95FU-F816M-00-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
104XE-F1539-10-00 RIVETRIVET
-
114XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
125ND-F4897-30-00 EMBLEMEMBLEM
-
134XE-F819R-20-00 TAG, WARNINGTAG, WARNING
-
141P0-F8186-01-00 POUCHPOUCH
