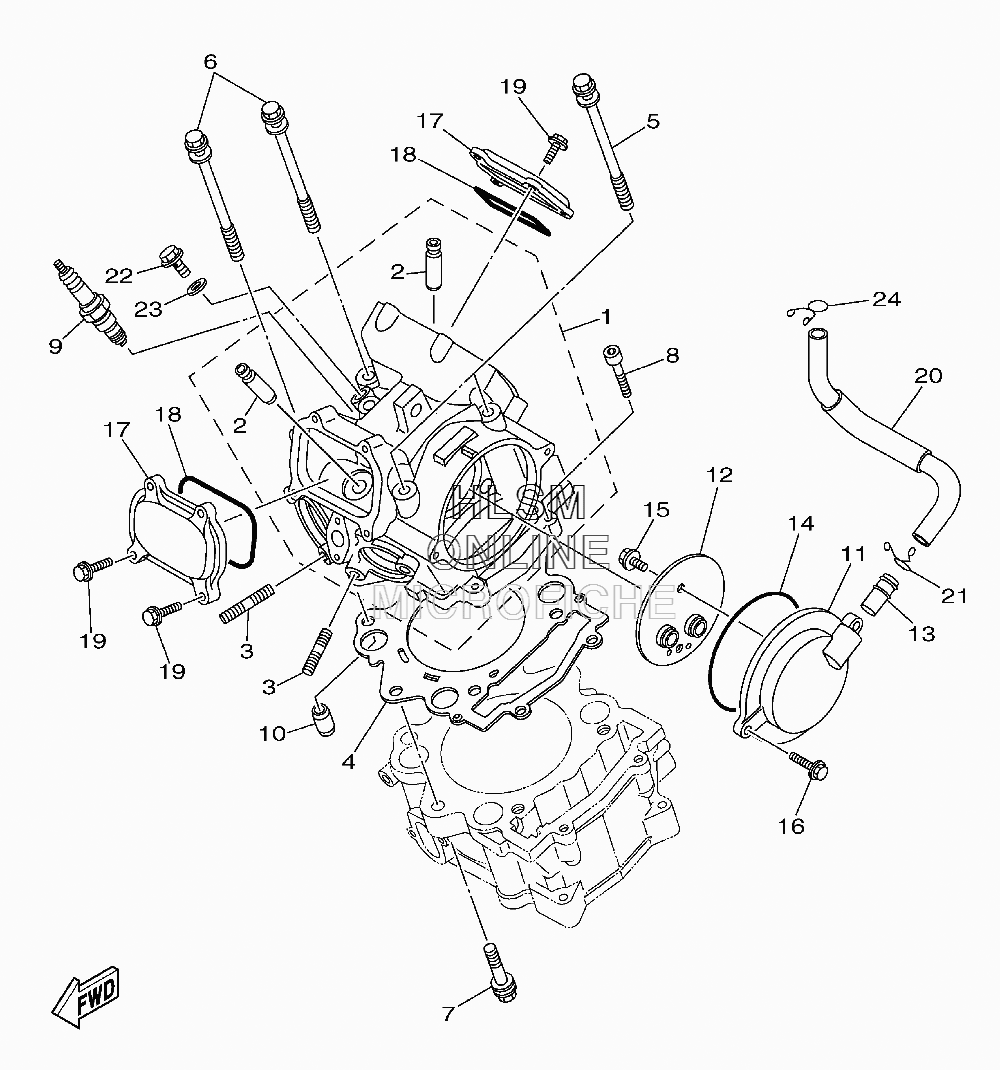

CYLINDER HEAD для Yamaha GRIZZLY 550 FI 4WD - 2010 года выпуска
-
№АртикулНазвание
-
128P-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
395612-08625-00 BOLT, STUDBOLT, STUD
-
428P-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590109-09003-00 BOLTBOLT
-
690109-09002-00 BOLTBOLT
-
790109-09005-00 BOLTBOLT
-
891312-06030-00 BOLTBOLT
-
9NGK-LMAR6-A9-00 PLUG, SPARK (NGK LMAR6A-9)PLUG, SPARK (NGK LMAR6A-9)
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
113B4-11185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
123B4-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
13371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1493210-96601-00 O-RINGO-RING
-
1595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171S3-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1893210-78544-00 O-RINGO-RING
-
1995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-11166-01-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2190467-140A4-00 CLIPCLIP
-
2290401-08004-00 BOLT, UNIONBOLT, UNION
-
2390430-08119-00 GASKETGASKET
-
2490467-150A2-00 CLIPCLIP
