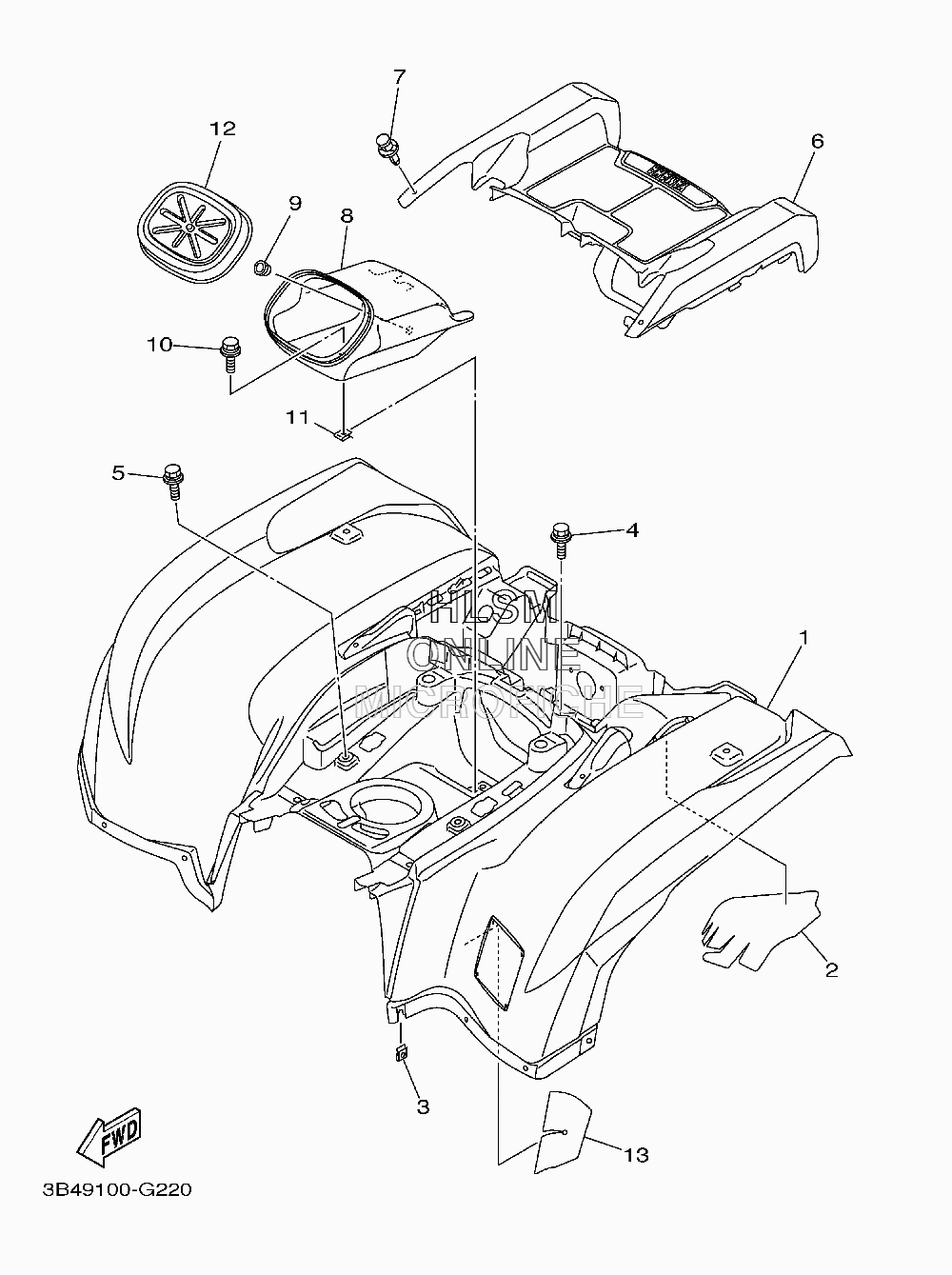

FENDER - REAR для Yamaha GRIZZLY 700 FI 4WD - 2010 года выпуска
-
№АртикулНазвание
-
13B4-W2161-01-00 REAR FENDER COMP. (FOR PDG)REAR FENDER COMP. (FOR PDG)
-
13B4-W2161-40-00 REAR FENDER COMP. (FOR SMJ)REAR FENDER COMP. (FOR SMJ)
-
13B4-W2161-21-00 REAR FENDER COMP. (FOR DPBSN)REAR FENDER COMP. (FOR DPBSN)
-
23B4-21652-00-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
63B4-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
790269-07010-00 RIVETRIVET
-
83B4-2160E-00-00 BOXBOX
-
990338-09130-00 PLUGPLUG
-
1090119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
123B4-2160F-00-00 LIDLID
-
133B4-21669-00-00 SEALSEAL
