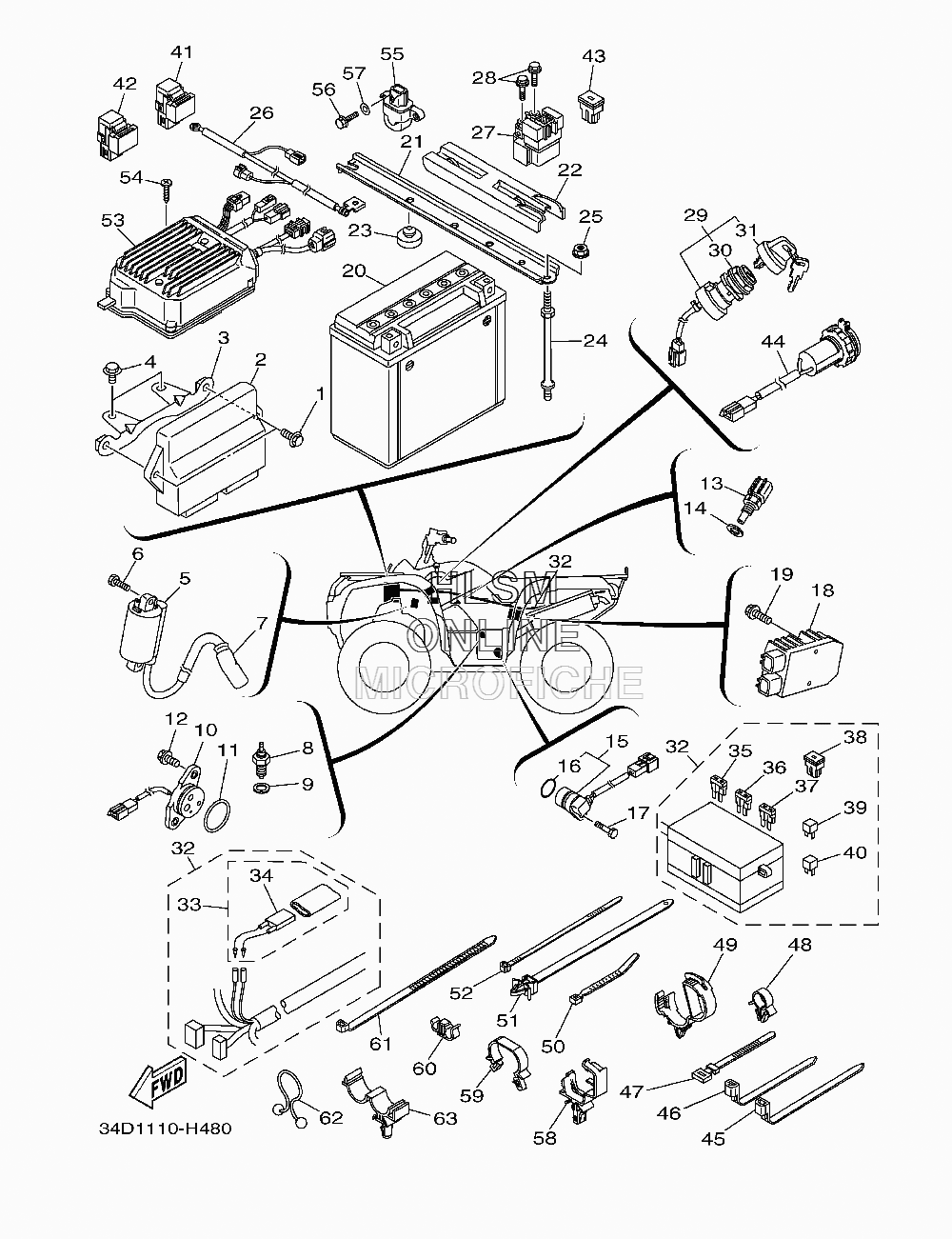

ELECTRICAL для Yamaha GRIZZLY 700 FI EPS 4WD HUNTER - 2010 года выпуска
-
№АртикулНазвание
-
13B4-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
328P-2830X-00-00 BRKT., CONTROL UNITBRKT., CONTROL UNIT
-
495802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
51D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
697002-06016-00 BOLTBOLT
-
728P-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
83GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
103B4-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1193210-29196-00 O-RINGO-RING
-
1290119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
138CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1490430-12202-00 GASKETGASKET
-
153B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 O-RINGO-RING
-
1791312-06020-00 BOLTBOLT
-
181D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1995802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
20BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
213B4-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
223B4-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2322W-24741-00-00 PAD, SEATPAD, SEAT
-
243B4-82133-10-00 SCREW, FITTINGSCREW, FITTING
-
2595702-06500-00 NUT, FLANGENUT, FLANGE
-
2634D-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
273B4-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2928P-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
303HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
313HN-82579-00-00 CAP, KEYCAP, KEY
-
3234D-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
334GB-82180-00-00 CIRCUIT BREAKER ASSYCIRCUIT BREAKER ASSY
-
344GB-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
355JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
365JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
375JJ-82151-90-00 FUSE (5A-BL)FUSE (5A-BL)
-
385PS-82151-00-00 FUSE (40A)FUSE (40A)
-
394WA-81980-00-00 DIODE ASSYDIODE ASSY
-
405VG-81980-00-00 DIODE ASSYDIODE ASSY
-
415DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
428FP-81950-01-00 RELAY ASSYRELAY ASSY
-
435PS-82151-00-00 FUSE (40A)FUSE (40A)
-
443B4-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
4590464-15195-00 CLAMPCLAMP
-
4690464-13073-00 CLAMPCLAMP
-
47437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4890464-15157-00 CLAMPCLAMP
-
4990464-20181-00 CLAMPCLAMP
-
5090465-10098-00 CLAMPCLAMP
-
5190464-10112-00 CLAMPCLAMP
-
525Y9-12491-00-00 CLAMP 1CLAMP 1
-
533B4-859A0-10-00 POWER STRG. CONT. UNIT ASSYPOWER STRG. CONT. UNIT ASSY
-
5498902-06020-00 SCREW, BINDSCREW, BIND
-
553B4-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
5697002-05016-00 BOLTBOLT
-
5792902-05600-00 WASHER, PLATEWASHER, PLATE
-
5890464-20237-00 CLAMPCLAMP
-
5990464-24230-00 CLAMPCLAMP
-
6090464-09013-00 CLAMPCLAMP
-
6190464-12045-00 CLAMPCLAMP
-
6290464-16039-00 CLAMPCLAMP
-
6390464-16012-00 CLAMPCLAMP
